2691133-00 - Simplicity Regent EX 46" Lawn Tractor, 23hp 46" & 52" (117cm & 132cm) Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

Regent EX 46" Lawn Tractor, 23hp

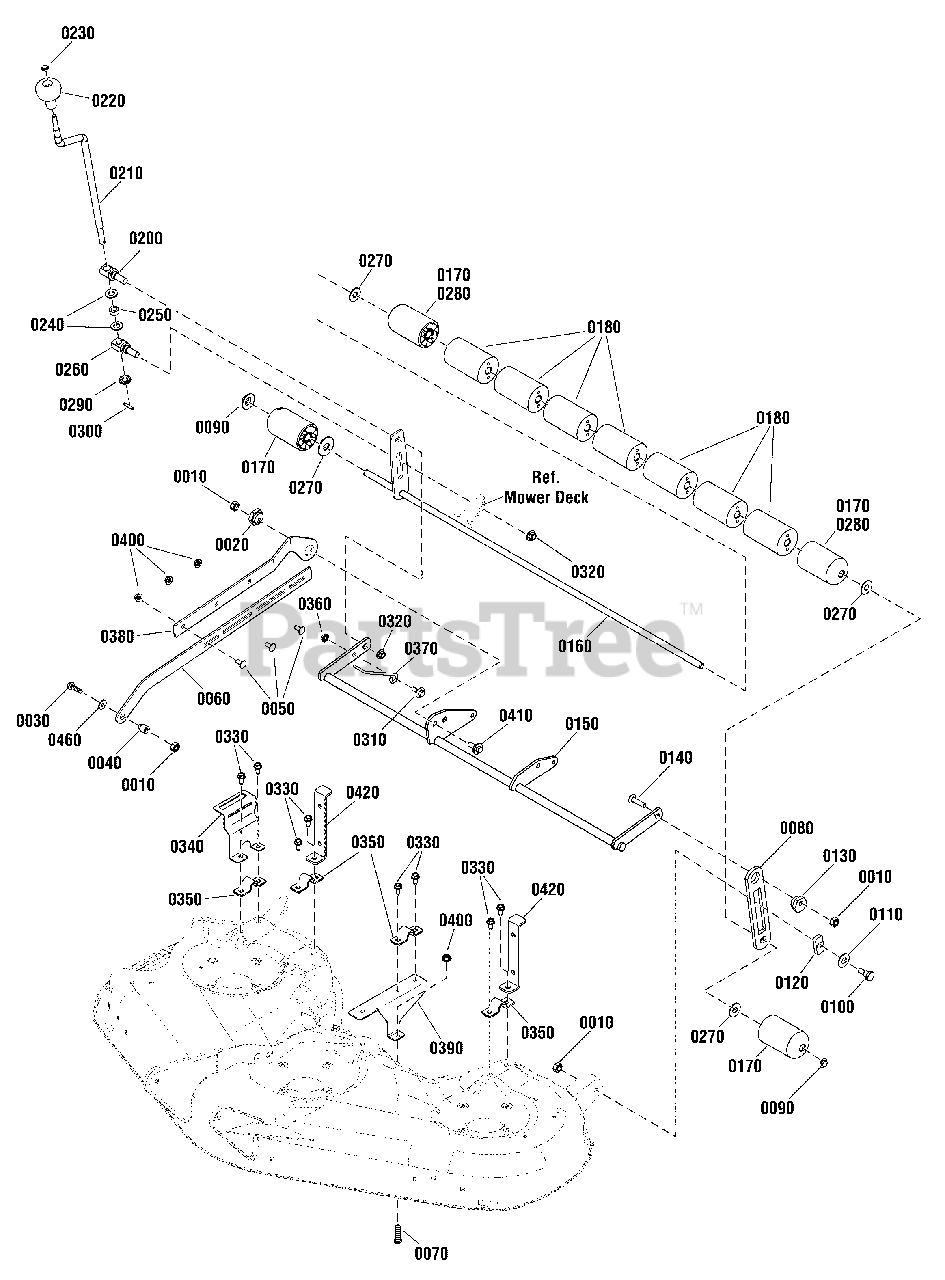

46" & 52" (117cm & 132cm) Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

0010

Simplicity 2860681SM

NUT, Hex Toplock, Spiral Lock Flange, 3/8-16

$4.49

$

In Stock, Qty 11

0

0020

Simplicity 1727381SM

NUT, Hex Adjusting

$13.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0040

Simplicity 1706644SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

0050

Simplicity 703185

BOLT, Carriage, 5/16-18 x 3/4 GR5

$3.49

$

In Stock, Qty 20+

0

0060

Simplicity 1739554AYP

ARM, Pitch Adjustment, Front

$46.99

$

Usually ships in 2-12 days

0

0070

Simplicity 703185

BOLT, Carriage, 5/16-18 x 3/4

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 1755088BMYP

BAR, Roller

$21.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1960520SM

PUSHNUT, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0100

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

0110

Simplicity 1924361SM

WASHER, 1/2 x 1-1/4
(Superseded to 703451)

$4.49

$

In Stock, Qty 11

0

0120

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, Qty 20+

0

0130

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 9

0

0140

Simplicity 7091945YP

BOLT, Carriage, 3/8-16 x 1-1/2 GR5

$4.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1753795BMYP

SHAFT, Rocker

$103.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1755611BMYP

SHAFT, Roller, 40.8" Lg
(Superseded to 1761702COYP)

Note: (Use on 46" Deck)

$170.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1755610BMYP

SHAFT, Roller, 42.88" Lg

Note: (Use on 52" Deck)

$117.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1722036SM

ROLLER, Rounded, 4.10" Lg

Note: (Qty 4 used on 52" Deck)

$7.99

$

In Stock, Qty 10

0

0180

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

0200

Simplicity 1733258SM

TRUNNION, L.H. Thread

$

$

Not available

0210

Simplicity 1719901SM

CRANK, Height Adjust

$48.99

$

In Stock, Qty 9

0

0220

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, Qty 5

0

0230

Simplicity 1960093SM

PUSHNUT, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 11

0

0240

Simplicity 1960170SM

WASHER, 1/2 x 1
(Superseded to 703853)

Note: (Qty 3 used on 52" Deck)

$4.99

$

In Stock, Qty 20+

0

0250

Simplicity 1716953SM

SPACER, 7/16 ID x 3/4 OD x 3/8

$13.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1733257SM

TRUNNION

$28.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0280

Simplicity 1717675SM

ROLLER, Rounded, 2.05" Lg

Note: (Used on 46" Decks)

$6.99

$

In Stock, Qty 20+

0

0290

Simplicity 1704097SM

WASHER, Detent

$4.49

$

Usually ships in 2-12 days

0

0300

Simplicity 2816001SM

PIN, Spring

$4.49

$

Usually ships in 2-12 days

0

0310

Simplicity 009X67MA

BOLT, Shoulder, 5/16-18 x 1/2

$5.49

$

In Stock, only 4 left!

0

0320

Simplicity 1930644SM

NUT, Hex Flange, Two-Way Lock 1/2-13

$3.49

$

Usually ships in 2-12 days

0

0330

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0340

Simplicity 1736850AYP

BRACKET, Height of Cut
(Superseded to 1756158AYP)

$21.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1665374SM

STRAP, Rocker Shaft
(Superseded to 1761690HYP)

$7.99

$

In Stock, Qty 6

0

0360

Simplicity 015X79MA

NUT, Hex Flange Serrated, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0370

Simplicity 1736851YP

ROD, Height of Cut Indicator

$7.49

$

Usually ships in 2-12 days

0

0380

Simplicity 1753817BMYP

ARM, Pitch Adjustment

$37.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1734806AYP

BRACKET, Rocker Shaft

Note: (Use on 46" Deck)

$39.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1737011BMYP

BRACKET, Rocker Shaft

Note: (Use on 52" Deck)

$

$

Not available

0400

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0410

Simplicity 1960268SM

BOLT, Carriage, 3/8-16 X 1-1/4

$4.49

$

In Stock, Qty 13

0

0420

Simplicity 1737219BMYP

UPSTOP, Rear

Note: (Qty 1 Used on 52" Deck)

$31.99

$

In Stock, only 3 left!

0

0460

Simplicity 71072MA

WASHER, Flat, 13/32

$4.49

$

Usually ships in 2-12 days

0
