270 (270122) - Cub Cadet Walk-Behind Mower (1982) Wheel, Flap & Throttle Control Assemblies Parts Diagram

Walk-Behind Mower

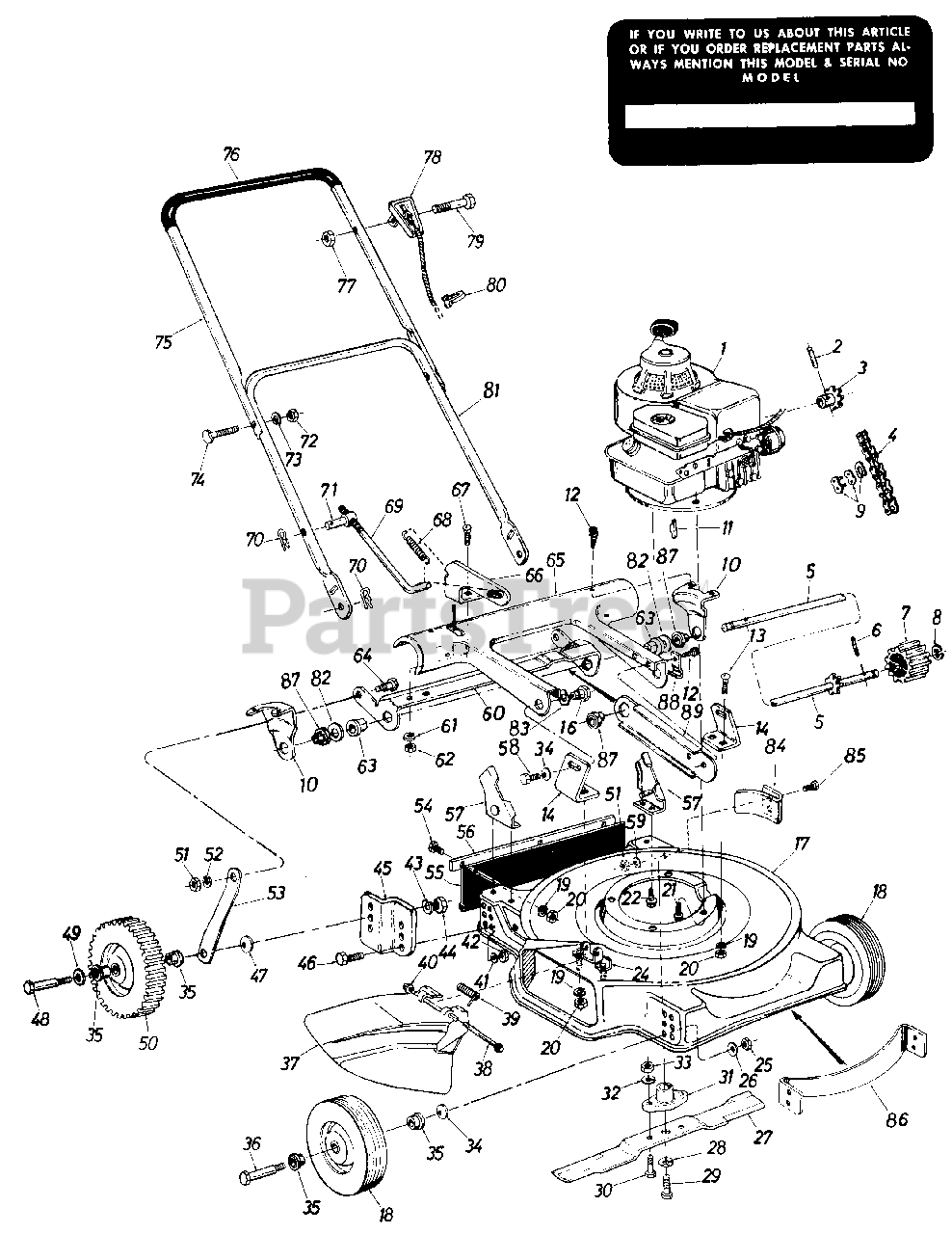

Wheel, Flap & Throttle Control Assemblies Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 715-0247

Spiral Pin 3/16 Dia. x 1.00 Lg.
(Superseded to 915-0247)

$

$

Not available

3

Cub Cadet 713-0308

10 Tooth Sprocket Ass'y.

Note: Code N

$

$

Not available

4

Cub Cadet 713-0310

#48 Chain 1/2" Pitch 46 Links

$

$

Currently unavailable

5

Cub Cadet 738-0530

Pinion Shaft w/7 Tooth Sprocket

Note: Code N

$

$

Not available

6

Cub Cadet 715-0246

Spiral Pin 3/16 Dia. x 1.25 Lg.
(Superseded to 915-0246)

$6.49

$

In Stock, Qty 9

0

7

Cub Cadet 731-0393

Drive Pinion 13 Teeth
(Superseded to 931-0393)

$

$

Not available

8

Cub Cadet 716-0104

E-Ring for .500 Dia. Shaft
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 18

0

9

Cub Cadet 713-0116

#48 Master Link

$

$

Not available

10

Cub Cadet 14757

Axle Brkt.

Note: Code N

$

$

Not available

11

Cub Cadet 714-0365

No. 6 Hi-Pro Key 5/32 x .62 Dia.

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0776

Hex AB-Tap Scr. 1/4 x 5/8" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 14759

Pivot Bracket

Note: Code N

$

$

Not available

?15

Cub Cadet 14165

Handle Brkt. Ass'y. - L.H.

$

$

Not available

16

Cub Cadet 738-0529

Shld. Nut .625 Dia. x .165 Lg.
(Superseded to 938-0529)

Note: Code N

$10.99

$

In Stock, Qty 5

0

17

Cub Cadet 14484

20" Deck Ass'y.

$

$

Currently unavailable

18

Cub Cadet 734-0892

Wheel Ass'y. - 7 x 1.75

$

$

Not available

19

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

20

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

21

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

22

Cub Cadet 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 14428

Deflector Hinge Plate Ass'y.

$

$

Currently unavailable

25

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .06

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 742-0123

20" Blade

$

$

Not available

28

Cub Cadet 736-0217

L-Wash. 3/8" I.D. - H.D.

$3.99

$

In Stock, Qty 13

0

29

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

30

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.0" Lg.
(Superseded to 710-0888)

$3.99

$

In Stock, Qty 11

0

31

Cub Cadet 748-0189

Blade Adapter

$

$

Not available

32

Cub Cadet 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

34

Cub Cadet 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .06

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 741-0262

Fortiflex Bearing

$7.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 738-0213

Shld. Bolt .498 Dia. x 1.44" Lg.

$7.49

$

In Stock, Qty 5

0

37

Cub Cadet 14580

Chute Deflector

Note: Code N

$

$

Currently unavailable

38

Cub Cadet 711-0717

Hinge Pin 3/16 Dia. x 3.88

$

$

Not available

39

Cub Cadet 732-0415

Torsion Spring

Note: Code N

$

$

Not available

40

Cub Cadet 726-0111

Push Cap .19 Rod

$6.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .06

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

44

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 14761

Wheel Brkt.

$

$

Currently unavailable

46

Cub Cadet 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

47

Cub Cadet 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .06

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 738-0533

Shld. Bolt .498 Dia. x 1.64" Lg.

$7.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 736-0192

Fl-Wash. .531 I.D. x .93 O.D. x .10 Thk.

$3.99

$

In Stock, only 2 left!

0

50

Cub Cadet 734-0538

Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

51

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

53

Cub Cadet 14760

Link 4.57 x .88

$

$

Not available

54

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 731-0575

Flap Ass'y.
(Superseded to 731-1029)

Note: Code N

$26.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 14531

Retaining Strip

Note: Code N

$

$

Currently unavailable

57

Cub Cadet 14164

Handle Brkt. R.H.

$

$

Currently unavailable

58

Cub Cadet 710-0168

Hex Bolt 3/8-16 x .50" Lg.

$3.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 736-0242

Bell-Wash. .33 I.D. x .860 O.D. x .060

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 14756

Cam

Note: Code N

$

$

Currently unavailable

61

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

62

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

63

Cub Cadet 741-0324

Hex Bearing
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

64

Cub Cadet 738-0155

Shld. Bolt .437 Dia. x 1.62 Lg.
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

65

Cub Cadet 14754

20" Pinion Pivot Cover

Note: Code N

$

$

Currently unavailable

66

Cub Cadet 14758

Engagement Arm

Note: Code N

$

$

Currently unavailable

67

Cub Cadet 710-0167

Carriage Bolt
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

68

Cub Cadet 732-0418

Extension Spring

Note: Code N

$9.99

$

In Stock, only 1 left!

0

69

Cub Cadet 747-0392

Engagement Rod

Note: Code N

$

$

Not available

70

Cub Cadet 714-0104

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

71

Cub Cadet 711-0570

Ferrule

$

$

Not available

72

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 710-0671

Curved Hd. Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

75

Cub Cadet 749-0385

Upper Handle

$

$

Not available

76

Cub Cadet 731-3026

Grip

$

$

Currently unavailable

77

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

78

Cub Cadet 746-0315

Throttle Control Ass'y. Comp.

$

$

Not available

79

Cub Cadet 710-0606

Hex Bolt 1/4-20 x 1.50" Lg.

$4.99

$

In Stock, Qty 15

0

80

Cub Cadet 726-0188

Cable Tie

$

$

Not available

81

Cub Cadet 749-0521

$

$

Currently unavailable

81

Cub Cadet 749-0522

Lower Handle

Note: Code N

$

$

Not available

82

Cub Cadet 736-0160

Fl-Wash. .53 I.D. x .050 Thk.

$3.99

$

In Stock, only 2 left!

0

83

Cub Cadet 736-0174

Spring Wash. .625 I.D. x .885 O.D.x .015

$6.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 14590

Rear Baffle

Note: Code N

$

$

Currently unavailable

85

Cub Cadet 710-0759

Hex Bolt 5/16-18 x .62" Lg.

$6.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 14589

Front Baffle (270)

Note: Code N

$

$

Currently unavailable

87

Cub Cadet 741-0180

Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 12894

Cable Clip

$

$

Not available

89

Cub Cadet 14877

Bearing Support

Note: Code N

$

$

Currently unavailable
