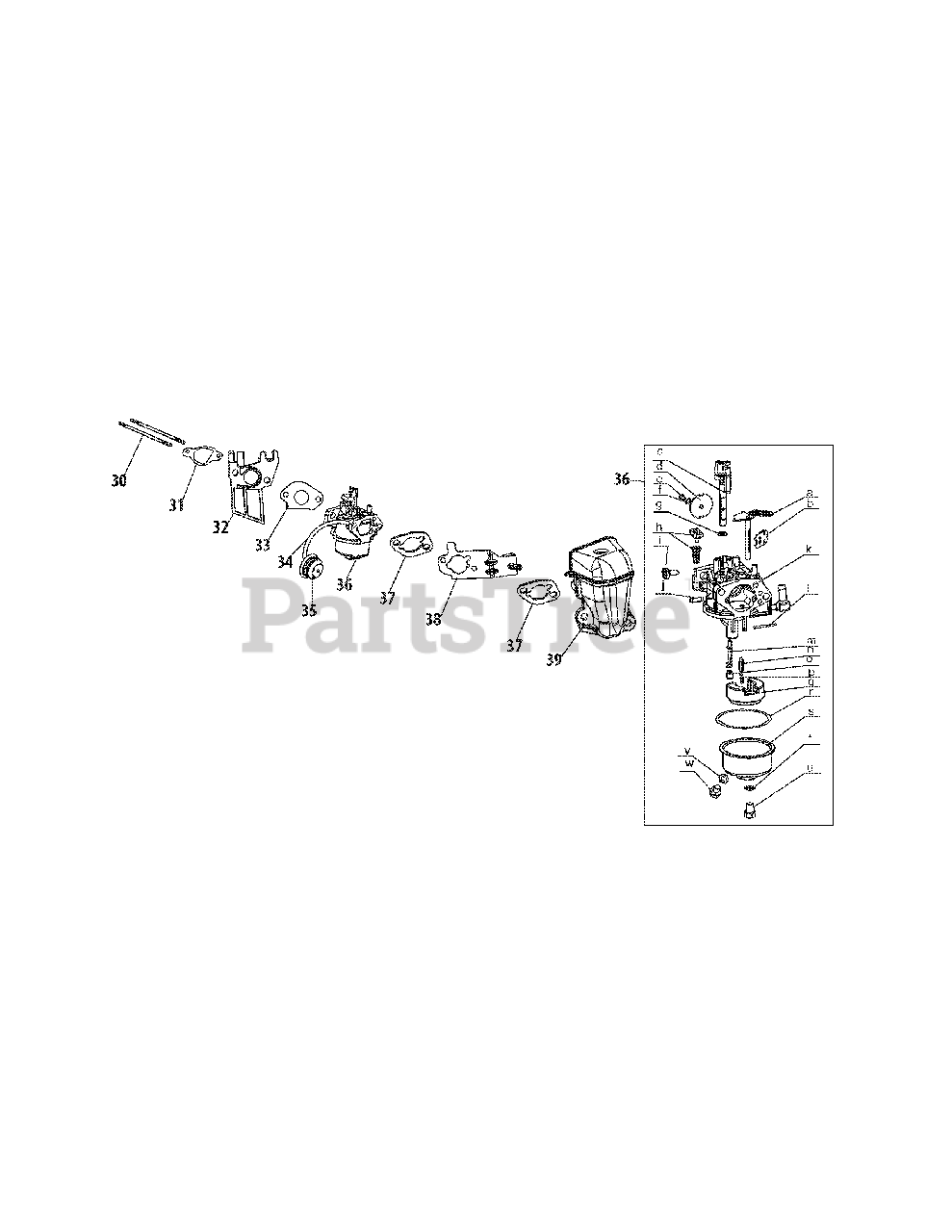

270-QU Carburetor Parts Diagram

  • Title

30

MTD 710-05093

STUD M6×92

$3.99

$

In Stock, only 2 left!

0

31

MTD 951-11567

GASKET, CARBURETOR INSULATOR
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

32

MTD 951-11568

INSULATOR , CARBURETOR
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 7

0

33

MTD 951-11569A

CARBURETOR GASKET
(Superseded to 751P12005A)

$5.49

$

In Stock, Qty 20+

0

34

MTD 935-05038

FUEL HOSE 3.2×6.5×150

$11.99

$

In Stock, only 1 left!

0

35

MTD 951-10639A

PRIMER

$13.99

$

In Stock, Qty 20+

0

36

MTD 951-05251

CARBURETOR

$107.99

$

In Stock, only 1 left!

0

37

MTD 951-11897

AIR FILTER GASKET
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

38

MTD 951-14869

CHOKE CONTROLER ASSY

$6.99

$

Usually ships in 3-6 days

0

39

MTD 951-14870

HEATER BOX

$15.99

$

In Stock, only 1 left!

0

a

MTD n/a

CHOKE SHAFT

$

$

Currently unavailable

b

MTD n/a

CHOKE PLATE

$

$

Currently unavailable

c

MTD n/a

THROTTLE SHAFT

$

$

Currently unavailable

d

MTD n/a

THROTTLE PLATE

$

$

Currently unavailable

e

MTD n/a

SCREW M3×6

$

$

Currently unavailable

f

MTD n/a

LOCK WASHER

$

$

Currently unavailable

g

MTD n/a

GASKET, THROTTLE PLATE

$

$

Currently unavailable

h

MTD n/a

IDLE JET ASSEMBLY

$

$

Currently unavailable

i

MTD n/a

IDLE SPEED ADJUSTING SCREW

$

$

Currently unavailable

j

MTD n/a

MIXTURE SCREW

$

$

Currently unavailable

k

MTD n/a

CARBURETOR BODY

$

$

Currently unavailable

l

MTD n/a

FLOAT PIN

$

$

Currently unavailable

m

MTD n/a

EMULSION TUBE (BP19C[B]-0006B)

$

$

Currently unavailable

n

MTD n/a

NEEDLE VALVE

$

$

Currently unavailable

o

MTD n/a

MAIN JET

$

$

Currently unavailable

p

MTD n/a

NEEDLE VALVE SPRING

$

$

Currently unavailable

q

MTD n/a

FLOAT

$

$

Currently unavailable

r

MTD 951-11589

FUEL BOWL GASKET
(Superseded to 951-11589A)

$6.49

$

In Stock, Qty 20+

0

s

MTD 608-05001

FUEL BOWL
(Superseded to 908-05001)

$7.99

$

Usually ships in 3-6 days

0

t

MTD 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.49

$

Usually ships in 3-6 days

0

u

MTD 710-04945

FUEL BOWL MOUNTING BOLT

$3.99

$

In Stock, Qty 8

0

v

MTD 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 15

0

w

MTD 710-04938

FUEL DRAIN PLUG

$3.99

$

In Stock, only 4 left!

0
