270-QU - MTD Engine (2015) 270-QU Cylinder Head Parts Diagram

Engine

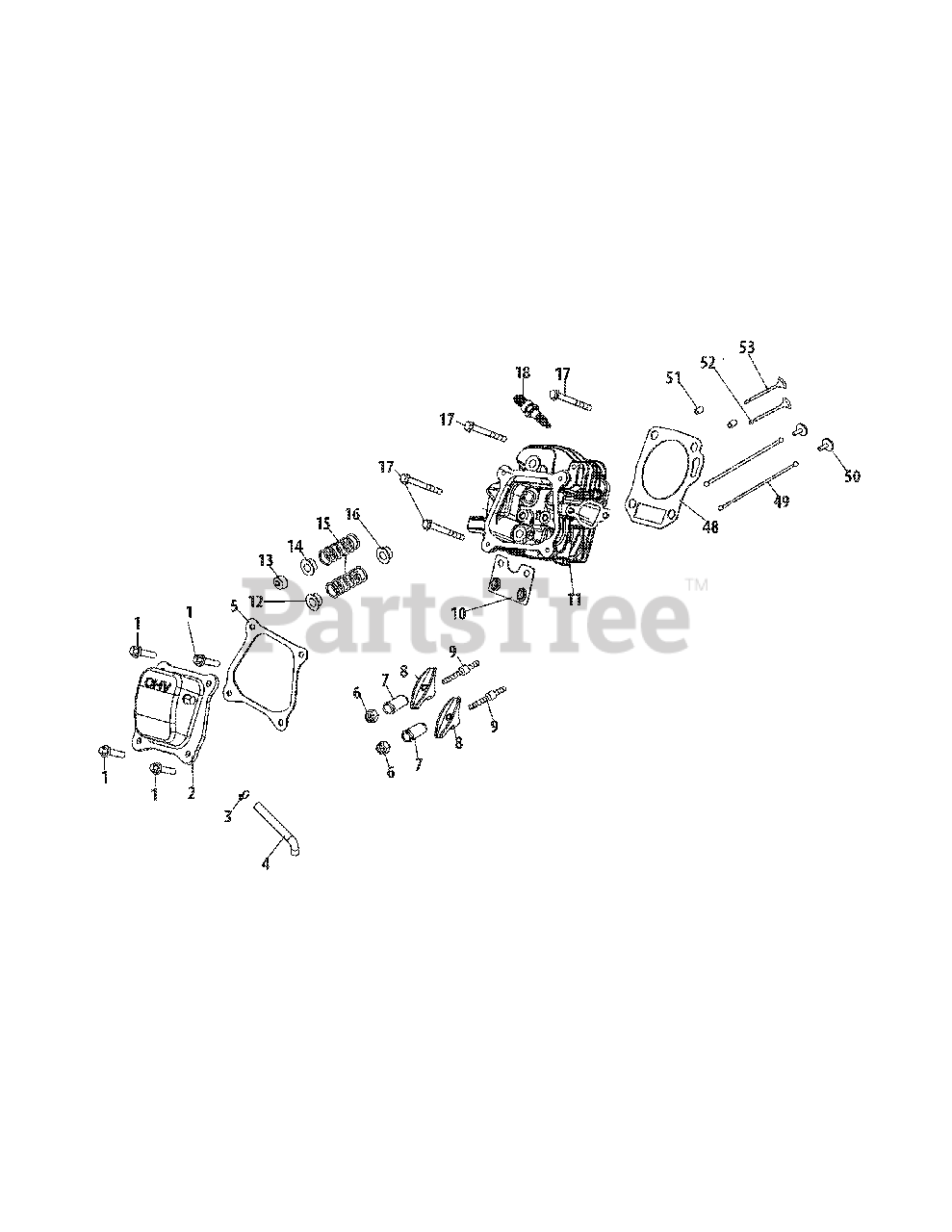

270-QU Cylinder Head Parts Diagram

  • Title

1

MTD 710-05191

BOLT M6×16
(Superseded to 710-04968)

$6.49

$

In Stock, only 3 left!

0

2

MTD 951-11054B

CYLINDER HEAD COVER

$14.99

$

Usually ships in 3-6 days

0

3

MTD 726-04101

CLAMP, FUEL HOSE

$4.49

$

In Stock, only 1 left!

0

4

MTD 931-09541

VENTING HOUSE

$5.99

$

Usually ships in 3-6 days

0

5

MTD 951-11565

GASKET, VALVE COVER
(Superseded to 751P11565B)

$9.99

$

Usually ships in 3-6 days

0

6

MTD 751-11124

LOCK NUT

$8.99

$

In Stock, Qty 6

0

7

MTD 751-11123

NUT

$9.99

$

In Stock, Qty 10

0

8

MTD 951-11893

ROCKER ARM

$7.49

$

In Stock, only 1 left!

0

9

MTD 710-04902

ROCKER ARM STUD

$6.49

$

In Stock, Qty 12

0

10

MTD 951-15139

ROCKER ARM BASE

$6.49

$

Usually ships in 3-6 days

0

11

MTD 951-14928

CYLINDER HEAD
(Superseded to 751P14928A)

$42.99

$

In Stock, only 1 left!

0

12

MTD 951-12000

INTAKE VALVE SPRING SEAT

$3.99

$

In Stock, only 1 left!

0

13

MTD 951-12002

ROTATOR, EXHAUST VALVE
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

14

MTD 951-12003

EXHAUST VALVE SPRING SEAT

$3.99

$

Usually ships in 3-6 days

0

15

MTD 951-12004

SPRING VALVE
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 7

0

16

MTD 951-11894

INTAKE VALVE SEAL

$10.99

$

In Stock, only 1 left!

0

17

MTD 710-04933

BOLT M8×55

$3.99

$

In Stock, Qty 10

0

18

MTD 951-10292

SPARK PLUG(F6RTC)
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

48

MTD 951-11572

GASKET,CYLINDER HEAD

$11.99

$

In Stock, only 1 left!

0

49

MTD 951-14105

PUSH ROD
(Superseded to 751P14105A)

$2.99

$

Usually ships in 3-6 days

0

50

MTD 951-11899

TAPPET

$7.99

$

In Stock, Qty 6

0

51

MTD 951-04090

DOWEL PIN 10×16

$3.99

$

Usually ships in 3-6 days

0

52

MTD 951-14099

VALVE INTAKE
(Superseded to 751P14099A)

$3.99

$

Usually ships in 3-6 days

0

53

MTD 951-14100

EXHAUST VAVLE
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0
