270-QU - MTD Engine (2015) 270-QU Muffler Parts Diagram

Engine

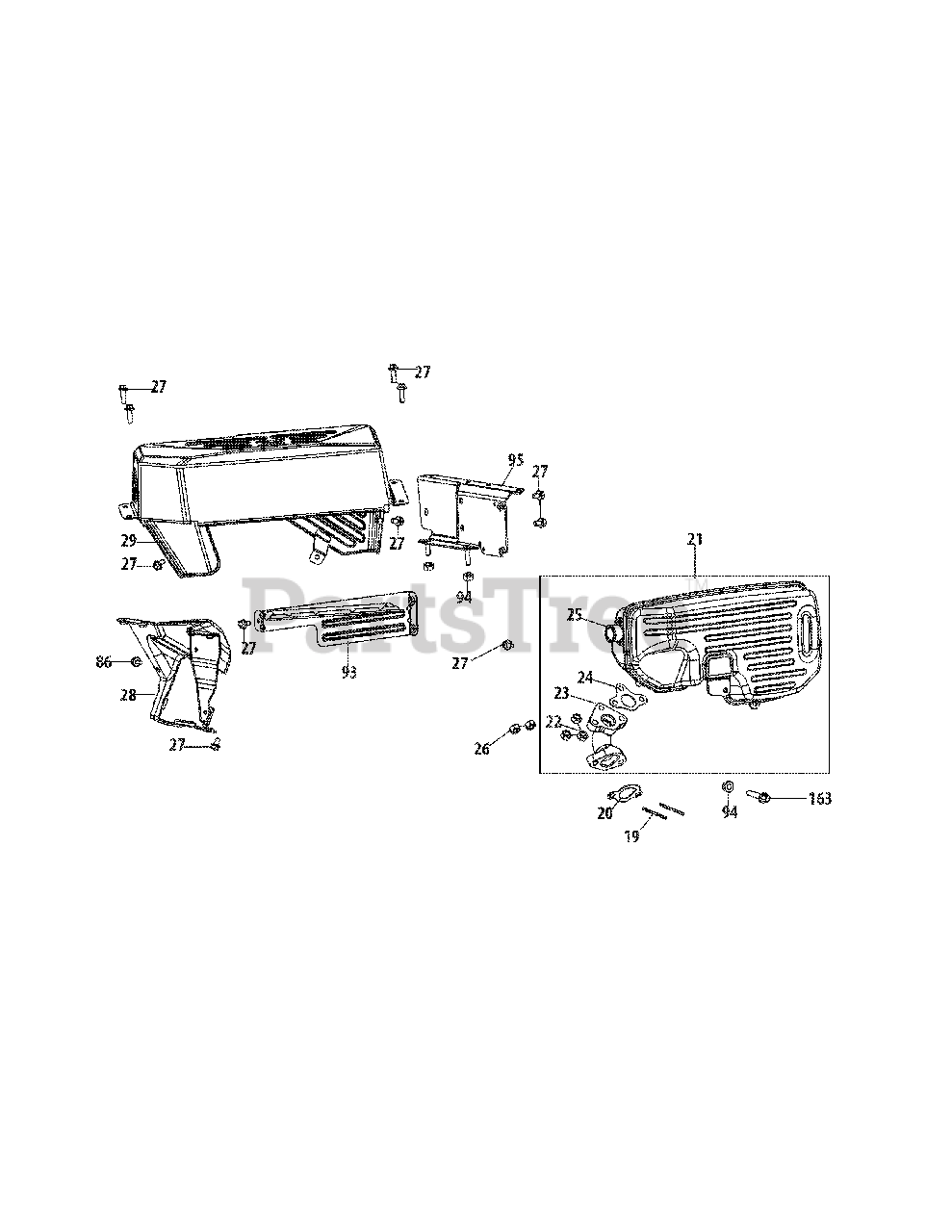

270-QU Muffler Parts Diagram

  • Title

19

MTD 710-05001

STUD M8×36

$3.99

$

Usually ships in 3-6 days

0

20

MTD 951-11289

MUFFLER GASKET
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 8

0

21

MTD 651-05263

MUFFLER
(Superseded to 951-05263)

$161.99

$

Usually ships in 3-6 days

0

22

MTD 712-05113

NUT M8

$3.99

$

Usually ships in 3-6 days

0

23

MTD 751-14977

EXHAUST PIPE
(Superseded to 951-14977)

$36.99

$

Usually ships in 3-6 days

0

24

MTD 921-04736

GASKET, MUFFLER

$5.49

$

Usually ships in 3-6 days

0

25

MTD 751-14976

MUFFLER BODY

$

$

Currently unavailable

26

MTD 712-04214

NUT M8

$4.49

$

In Stock, Qty 5

0

27

MTD 910-06277

BOLT M6×12

$3.99

$

In Stock, Qty 9

0

28

MTD 951-14872

FRONT BRACKET, FUEL TANK

$32.99

$

Usually ships in 3-6 days

0

29

MTD 708-05112A

MUFFLER GUARD
(Superseded to 908-05112A)

$78.99

$

Usually ships in 3-6 days

0

86

MTD 910-06278

BOLT M6×16

$3.99

$

Usually ships in 3-6 days

0

93

MTD 751-14997A

FUEL TANK INSULATOR
(Superseded to 951-14997A)

$10.99

$

Usually ships in 3-6 days

0

94

MTD 712-05015

FLANGE NUT M6

$6.49

$

In Stock, only 2 left!

0

95

MTD 951-14880

FUEL TANK BRACKET

$14.99

$

Usually ships in 3-6 days

0

163

MTD 710-04918

BOLT M6×20

$3.99

$

Usually ships in 3-6 days

0
