272 K - Husqvarna Cut-Off Saw (1999-09) CRANKCASE Parts Diagram

Cut-Off Saw

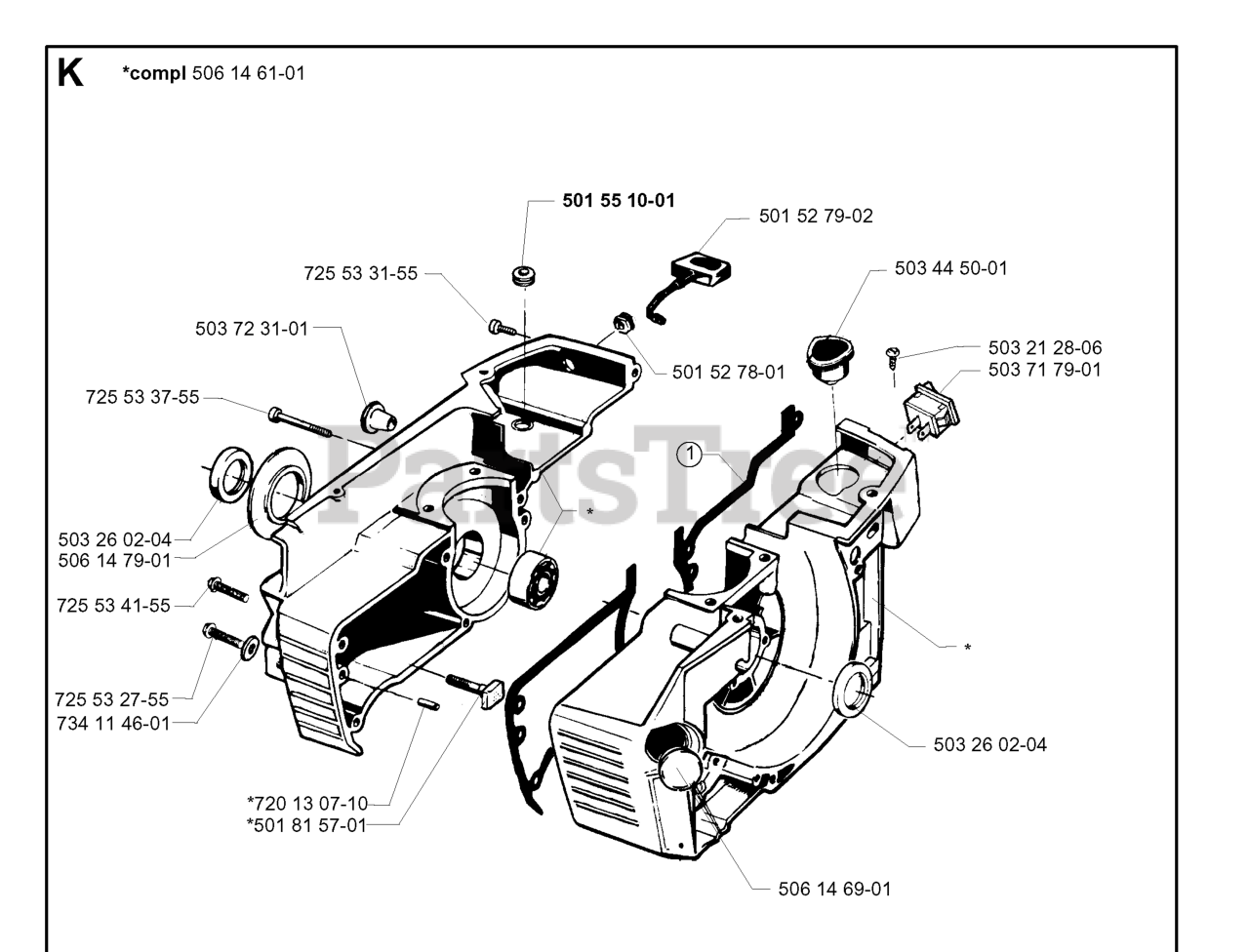

CRANKCASE Parts Diagram

  • Title

725 53 31-55

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 3 left!

0

725 53 37-55

Husqvarna 725533755

SCREW MC6S 5X35

$6.49

$

In Stock, Qty 11

0

506 14 69-01

Husqvarna 506146901

CAP

$

$

Not available

503 44 50-01

Husqvarna 503445001

BELLOWS

$9.49

$

In Stock, Qty 12

0

501 55 10-01

Husqvarna 501551001

SEAL

$

$

Not available

506 14 61-01

Husqvarna 506146101

CRANKCASE

$

$

Not available

725 53 27-55

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, Qty 12

0

501 52 78-01

Husqvarna 501527801

BUSHING

$7.49

$

In Stock, only 2 left!

0

501 52 79-02

Husqvarna 501527902

CHOKE CONTROL

$10.99

$

In Stock, only 1 left!

0

503 72 31-01

Husqvarna 503723101

BUSHING

$9.49

$

In Stock, Qty 8

0

501 81 57-01

Husqvarna 501815701

BOLT

$7.49

$

In Stock, only 2 left!

0

506 14 79-01

Husqvarna 506147901

HOLDER

$

$

Not available

503 71 79-01

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

In Stock, Qty 20+

0

503 21 28-06

Husqvarna 503212806

SCREW

$6.49

$

Usually ships in 3-10 days

0

725 53 41-55

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 10

0

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$5.99

$

In Stock, Qty 5

0

720 13 07-10

Husqvarna 720130710

PIN 5X14

$4.99

$

Usually ships in 3-10 days

0

503 26 02-04

Husqvarna 503260204

SEALING RING

$17.99

$

In Stock, Qty 5

0
