2800 (UT-26020) - Green Machine String Trimmer Driveshaft And Handles Parts Diagram

String Trimmer

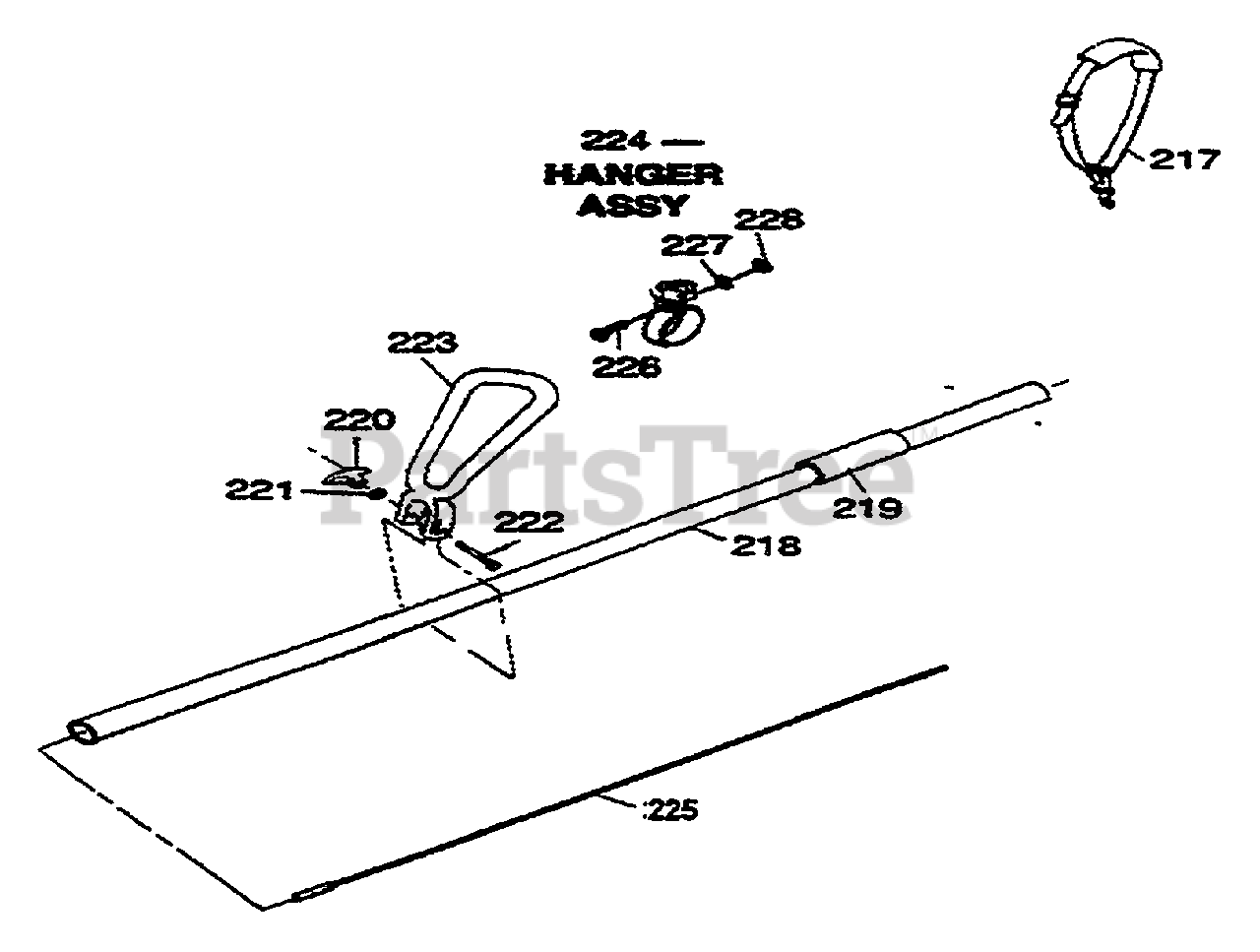

Driveshaft And Handles Parts Diagram

  • Title

217

Homelite GM280311

HARNESS
(Superseded to DG07819)

$

$

Not available

218

Homelite GM280341

TUBE ASSY

$

$

Not available

219

Homelite GM300038

GRIP

$

$

Not available

220

Homelite GM285204

KNOB
(Superseded to UP04138)

$

$

Not available

221

Homelite GM040016

WASHER

$

$

Not available

222

Homelite GM257606

BOLT
(Superseded to 80295)

$2.99

$

Usually ships in 3-7 days

0

223

Homelite GM235209

ASSIST HANDLE
(Superseded to A08329)

$

$

Not available

224

Homelite GM300245

HANGER ASSY
(Superseded to UP06800)

Note: Includes ref Nos 226, 227 & 228

$

$

Not available

225

Homelite GM287801

CABLE, FLEX

$

$

Not available

226

Homelite GM010002

SCREW

$1.49

$

Usually ships in 3-7 days

0

227

Homelite GM041101

WASHER

$

$

Not available

228

Homelite GM050003

NUT

$

$

Not available
