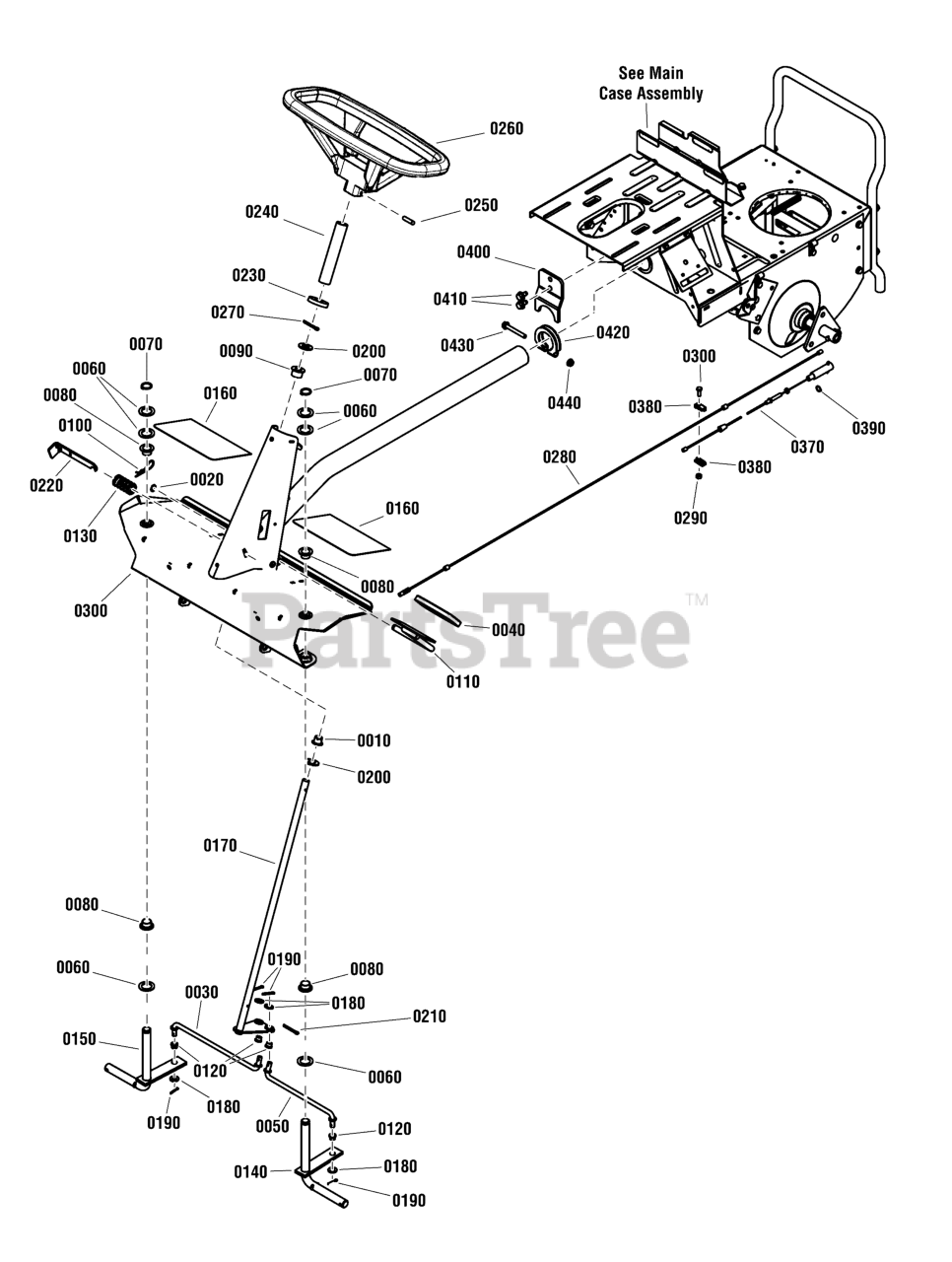

2811525BVE (2691525-00) - Snapper 28" Rear-Engine Riding Mower, 11.5hp Front End Group Parts Diagram

28" Rear-Engine Riding Mower, 11.5hp

Front End Group Parts Diagram

  • Title

0010

Snapper 7010694YP

BUSHING, Flanged Nylon, .63 ID, .692 OD, .625 Tall

$4.49

$

In Stock, Qty 15

0

0020

Snapper 7010776YP

RING, 1/2" External Retaining

$3.99

$

In Stock, only 4 left!

0

0030

Snapper 7012933YP

TIE ROD, Right Hand (7.41" long)

Note: (28" Models)

$18.99

$

In Stock, only 3 left!

0

0030

Snapper 7012540YP

TIE ROD, RH, 9.91" Long

Note: (33" Models)

$14.99

$

In Stock, only 1 left!

0

0040

Snapper 1760416YP

PAD, Clutch/Brake Pedal (No Markings)

$9.49

$

Usually ships in 2-12 days

0

0050

Snapper 7013023YP

TIE ROD, Left Hand (7.41" long)

Note: (28" Models)

$13.99

$

In Stock, Qty 5

0

0050

Snapper 7012541YP

TIE ROD, LH, 9.91" Long
(Superseded to 7012541BMYP)

Note: (33" Models)

$14.99

$

In Stock, only 1 left!

0

0060

Snapper 703151

WASHER, .766 ID X 1.06 OD X .07

$3.49

$

In Stock, Qty 16

0

0070

Snapper 703975

RETAINING RING, 3/4" ID, ZC/CL

$3.99

$

In Stock, Qty 15

0

0080

Snapper 7010986YP

BEARING, Flanged Nylon, .760 ID, .830 OD, .563 Tall

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 7046158YP

BUSHING, Flanged Nylon Steering Upper, .63 ID, .97 OD, .66 Tall

$4.49

$

In Stock, Qty 18

0

0100

Snapper 7011714YP

HAIR PIN, 2.25, .094, ZP

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper 7047888BMYP

WELDMENT, Clutch/Brake Pedal

$45.99

$

Usually ships in 2-12 days

0

0120

Snapper 7013321YP

BUSHING, Flanged Tie Rod, .385 ID, .508 OD, .39 Tall

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 7015444YP

SPRING, Parking Brake Latch

$3.99

$

Usually ships in 2-12 days

0

0140

Snapper 1760945BMYP

WELDMENT, King Pin, Left Hand, Black

$85.99

$

Usually ships in 2-12 days

0

0150

Snapper 1760946BMYP

WELDMENT, King Pin, Right Hand, Black

$88.99

$

Usually ships in 2-12 days

0

0160

Snapper 7105143YP

FOOTPAD, Wide (5.5 x 8.0)

$

$

Currently unavailable

0160

Snapper 7105147YP

FOOT PAD, Short (5.5 x 4.7)

$6.99

$

In Stock, only 2 left!

0

0170

Snapper 7046232YP

WELDMENT, Steering Shaft, Black

$118.99

$

Usually ships in 2-12 days

0

0180

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 14

0

0190

Snapper 703958

PIN, 1/8 X 0.75, Cotter, Zinc/Clear

$4.49

$

In Stock, Qty 7

0

0200

Snapper 7090183YP

WASHER, Flat, .656X1.312X.094, ZC/CL

$4.49

$

In Stock, Qty 11

0

0210

Snapper 703983

PIN, Cotter

$4.49

$

Usually ships in 2-12 days

0

0220

Snapper 7038243YP

LATCH, Parking Brake
(Superseded to 7038243DYP)

$18.99

$

Usually ships in 2-12 days

0

0230

Snapper 7023671YP

COVER, Steering Shaft

$4.49

$

In Stock, Qty 10

0

0240

Snapper 7023667YP

COVER, Foam, Steering Shaft

$8.49

$

In Stock, Qty 9

0

0250

Snapper 7013862YP

ROLL PIN, 1/4 x 1-1/2"

$4.49

$

In Stock, Qty 20+

0

0260

Snapper 7501813YP

ASSEMBLY, Steering Wheel (for 5/8" shaft)

$113.99

$

Usually ships in 2-12 days

0

0270

Snapper 7090296YP

PIN, 3/16 x 1" Cotter

$4.49

$

In Stock, Qty 10

0

0280

Snapper 7022449YP

CABLE, 28" Clutch/Brake, 54.32 Long

Note: (28" Models)

$23.99

$

In Stock, Qty 5

0

0280

Snapper 7074131YP

CABLE, 33" Clutch/Brake, 55" Long

Note: (33" Models)

$24.99

$

In Stock, only 1 left!

0

0290

Snapper 703954

NUT, Centerlock, 1/4-20, GR5
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0300

Snapper 703925

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$4.49

$

In Stock, Qty 6

0

0370

Snapper 7101192YP

CABLE, Brake, Snap-In

$27.99

$

In Stock, Qty 5

0

0380

Snapper 7034174YP

CONNECTOR, Cable (Single Part)

$4.99

$

Usually ships in 2-12 days

0

0390

Snapper 7012313SM

RETAINING RING, .375, External

$3.99

$

In Stock, Qty 8

0

0400

Snapper 7074210YP

BRACKET, Belt Adjuster

$16.99

$

Usually ships in 2-12 days

0

0410

Snapper 703950

SCREW, Hex Washer Head, Thread Roll, 5/16-18 X 5/8

$5.49

$

In Stock, Qty 6

0

0420

Snapper 7031100YP

CLAMP, Tube

$10.99

$

Usually ships in 2-12 days

0

0430

Snapper 7090358YP

SCREW, 5/16-24 x 2-1/2" Hex Head Cap, GR 5

$4.49

$

In Stock, only 1 left!

0

0440

Snapper 704279

NUT, 5/16-24 Hex Flange Lock, BZ

$3.49

$

In Stock, only 4 left!

0
