28220 (320 R) - Lawn-Boy 20" Snow Thrower (SN: 009900001 - 009999999) (1999) HANDLE ASSEMBLY Parts Diagram

20" Snow Thrower

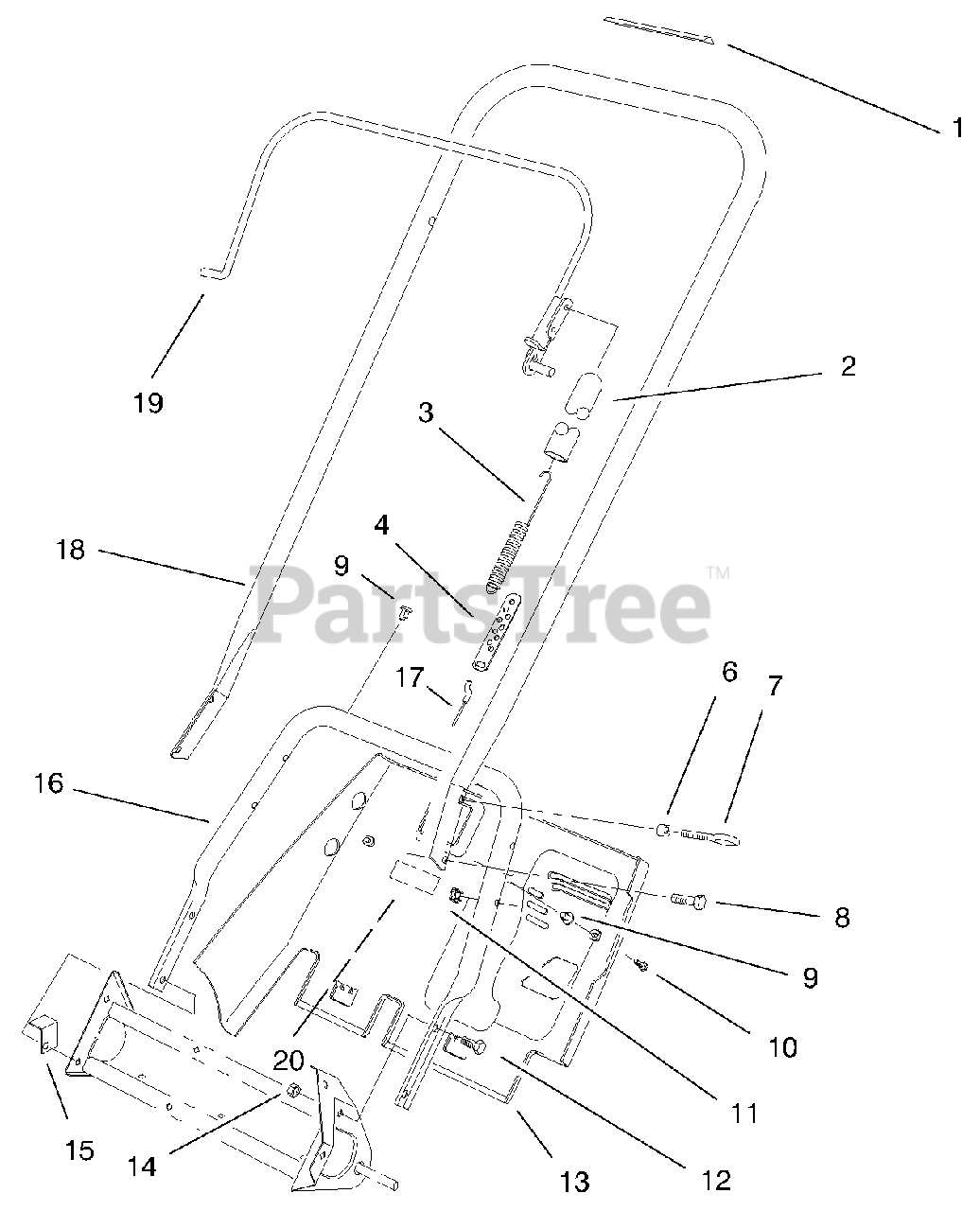

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 66-6870

Decal-Rotor Drive
(Superseded to 104-2775)

$3.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 71-5530

Cover-Spring

$4.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 71-5480

Spring-Clutch

$6.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 71-5330

Adjuster-Cable
(Superseded to 136-7126)

$6.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 55-9370

Spacer-Rotor Blade

$2.99

$

In Stock, Qty 18

0

7

Lawn-Boy 3299-1

Eyebolt

$

$

Not available

8

Lawn-Boy 32105-11

Screw-Slot Hex
(Superseded to 108-7301)

$1.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 3290-486

Nut-Push

$1.49

$

In Stock, Qty 8

0

10

Lawn-Boy 32144-53

Screw-Tf Acorn Hd

$3.49

$

In Stock, Qty 10

0

11

Lawn-Boy 3290-225

Nut-Speed

$8.99

$

In Stock, only 4 left!

0

12

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 94-8889

Shroud-Lower

$

$

Not available

14

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 71-5600

Bracket-Shroud

$

$

Not available

16

Lawn-Boy 71-5370-03

Tube-Handle

$52.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 55-9322

Cable-Clutch

$9.99

$

In Stock, Qty 9

0

18

Lawn-Boy 71-5090-03

Handle-Upper
(Superseded to 100-3599)

$

$

Not available

19

Lawn-Boy 71-5120-03

Bail

$40.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 61-4790

Decal-Warning (Csa) (E)(Model 28222)

$11.99

$

Usually ships in 3-6 days

0
