28220 (320 R) - Lawn-Boy 20" Snow Thrower (SN: 009900001 - 009999999) (1999) RECOIL STARTER NO. 590743 Parts Diagram

20" Snow Thrower

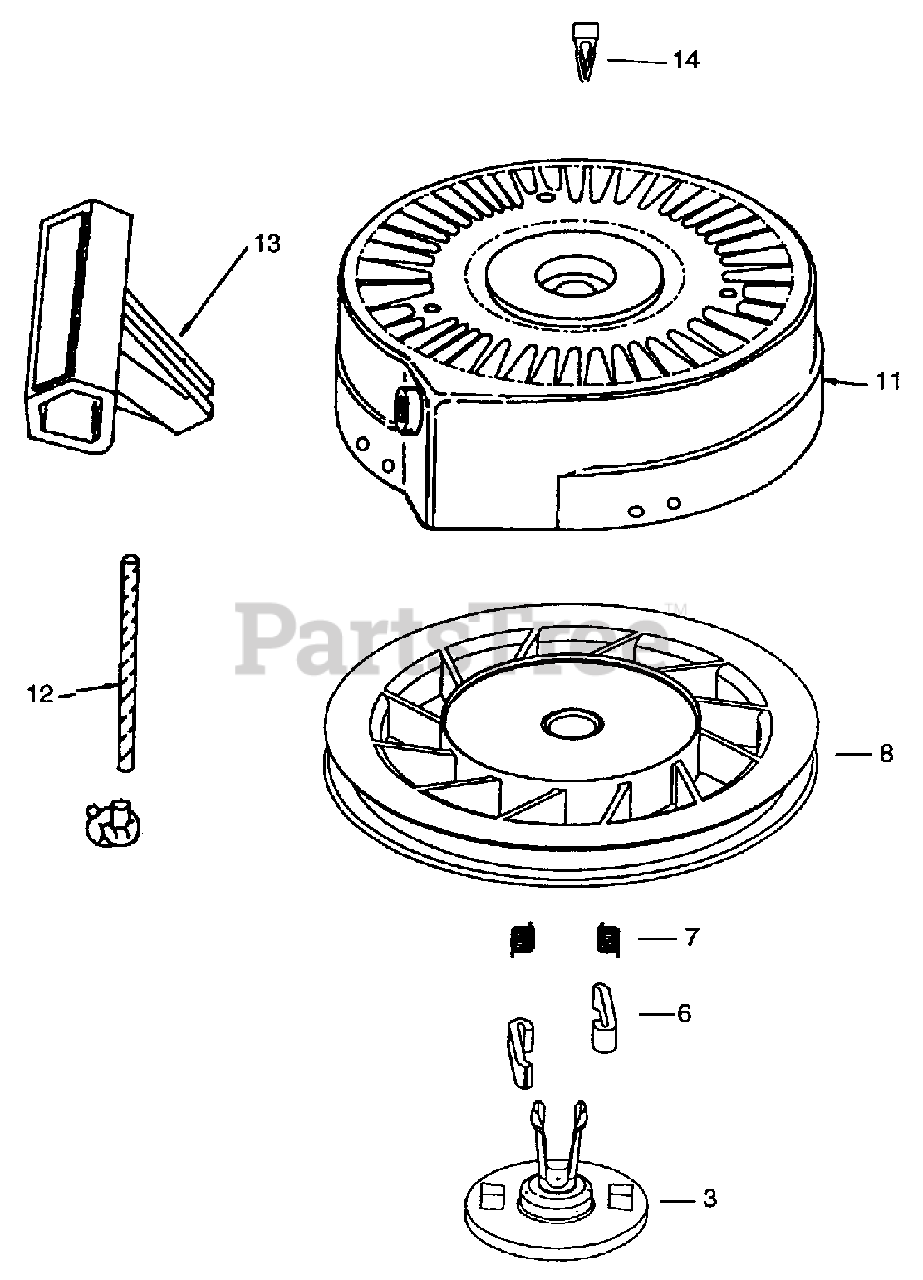

RECOIL STARTER NO. 590743 Parts Diagram

  • Title

Lawn-Boy 590743

Rewind Starter

$

$

Currently unavailable

3

Lawn-Boy 590740

Retainer

$

$

Currently unavailable

6

Lawn-Boy 590616

Starter Dog

$

$

Currently unavailable

7

Lawn-Boy 590617

Dog Spring

$

$

Currently unavailable

8

Lawn-Boy 590645A

Pulley & Rewind Spring Ass'y

$

$

Currently unavailable

11

Lawn-Boy 590643

Starter Housing Ass'y

$

$

Currently unavailable

12

Lawn-Boy 590535

Starter Rope (Length 98" x 9/64" Dia.)

$

$

Currently unavailable

13

Lawn-Boy 590701

Starter Handle

$

$

Currently unavailable

14

Lawn-Boy 590741

Locking Tab

$

$

Currently unavailable
