28220 (320 R) - Lawn-Boy 20" Snow Thrower (SN: 200000001 - 200999999) (2000) ENGINE TECUMSEH MODEL NO. HSK600-1681T Parts Diagram

20" Snow Thrower

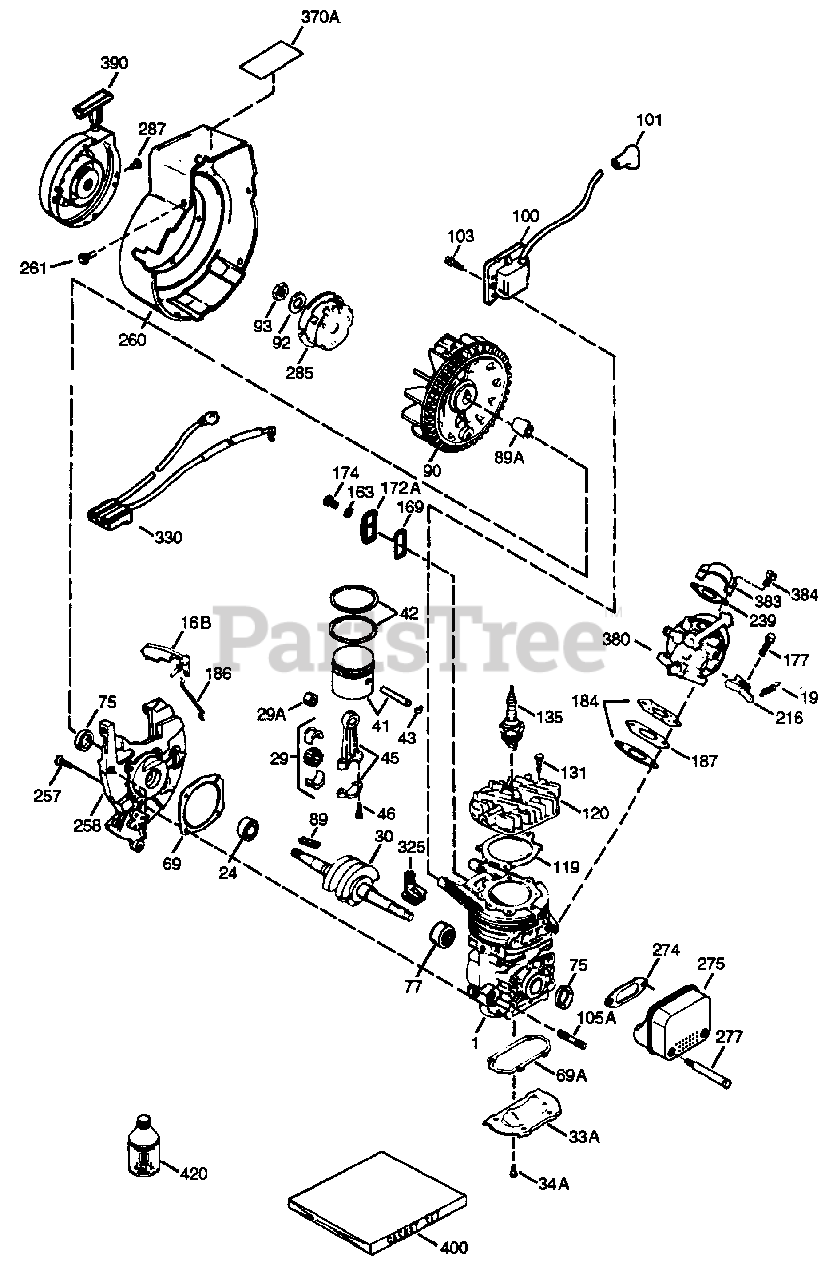

ENGINE TECUMSEH MODEL NO. HSK600-1681T Parts Diagram

  • Title

1

Cylinder (Order Short Block if Replacement is needed)

$

$

Not available

16B

Lawn-Boy 490291A

Air Vane

$

$

Currently unavailable

19

Lawn-Boy 570707

Extension Spring

$

$

Currently unavailable

24

Lawn-Boy 530110

Ball Bearing

$

$

Currently unavailable

29

Lawn-Boy 530150

Needle Bearing & Liner Set (37 Needles)

$

$

Currently unavailable

29A

Lawn-Boy 530104A

Cartridge Bearing

$

$

Currently unavailable

30

Lawn-Boy 290602

Crankshaft

$

$

Currently unavailable

33A

Lawn-Boy 570644

Cover Plate

$

$

Currently unavailable

34A

Lawn-Boy 650579

Screw, Torx T-25

$

$

Currently unavailable

41

Lawn-Boy 310283A

Piston & Pin Assembly

$

$

Currently unavailable

42

Lawn-Boy 310190

Ring Set

$

$

Currently unavailable

43

Lawn-Boy 310167

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Lawn-Boy 310235B

Connecting Rod Assembly (Incl. Ref. #29, 29A, & 46)

$

$

Currently unavailable

46

Lawn-Boy 650633

Connecting Rod Bolt

$

$

Currently unavailable

69

Lawn-Boy 510292A

Cylinder Cover Gasket

Note: Included in Gasket Set No. 510324B

$

$

Currently unavailable

69A

Lawn-Boy 510323A

Cover Plate Gasket

Note: Included in Gasket Set No. 510324B

$

$

Currently unavailable

75

Lawn-Boy 510319

Oil Seal

$

$

Currently unavailable

77

Lawn-Boy 530105

Cartridge Bearing

$

$

Currently unavailable

89A

Lawn-Boy 611032

Adapter Sleeve

$

$

Currently unavailable

90

Lawn-Boy 611066

Flywheel

$50.99

$

Usually ships in 3-6 days

0

92

Lawn-Boy 650815

Belleville Washer

$

$

Currently unavailable

93

Lawn-Boy 650390

Flywheel Nutt

$

$

Currently unavailable

100

Lawn-Boy 34443A

Solid State Ignition (Incl. Ref. #101)

$

$

Currently unavailable

101

Lawn-Boy 610118

Spark Plug Cover

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw, Torx T-15

$

$

Currently unavailable

105A

Lawn-Boy 650796

Stud

$

$

Currently unavailable

119

Lawn-Boy 510274A

Cylinder Head Gasket

Note: Included in Gasket Set No. 510324B

$

$

Currently unavailable

120

Lawn-Boy 250240B

Cylinder Head

$

$

Currently unavailable

131

Lawn-Boy 650477

Screw, Torx T-30

$

$

Currently unavailable

135

Lawn-Boy 611049

Resistor Spark Plug

$

$

Currently unavailable

163

Lawn-Boy 650838

Washer

$

$

Currently unavailable

169

Lawn-Boy 510325A

Cover Plate Gasket

Note: Included in Gasket Set No. 510324B

$

$

Currently unavailable

172A

Lawn-Boy 570708

Compression Release Cover

$

$

Currently unavailable

174

Lawn-Boy 650579

Screw, Torx T-25

$

$

Currently unavailable

177

Lawn-Boy 650959

Screw

$

$

Currently unavailable

184

Lawn-Boy 510326A

Carburetor Gasket

Note: Included in Gasket Set No. 510324B

$

$

Currently unavailable

186

Lawn-Boy 490322

Governor Link

$

$

Currently unavailable

187

Lawn-Boy 570438A

Spacer

$

$

Currently unavailable

216

Lawn-Boy 570645

R.P.M. Adjusting Lever

$

$

Currently unavailable

239

Lawn-Boy 35815

Air Cleaner Gasket

$3.23

$

Usually ships in 3-6 days

0

257

Lawn-Boy 650911

Screw, Torx T-30

$

$

Currently unavailable

258

Lawn-Boy 350422

Blower Housing Base (Incl. Ref. #27)

$

$

Currently unavailable

260

Lawn-Boy 350437

Blower Housing

$

$

Currently unavailable

261

Lawn-Boy 650737

Screw

$

$

Currently unavailable

274

Lawn-Boy 510346A

Exhaust Gasket

Note: Included in Gasket Set No. 510324B

$

$

Currently unavailable

275

Lawn-Boy 390330

Muffler (Incl. Ref. #274 & 277)

$

$

Currently unavailable

277

Lawn-Boy 650869

Screw

$

$

Currently unavailable

285

Lawn-Boy 590551A

Starter Cup

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw

$

$

Currently unavailable

325

Lawn-Boy 29443

Wire Clip

$

$

Currently unavailable

330

Lawn-Boy 611153

Wire Harness

$

$

Currently unavailable

370A

Lawn-Boy 36261

Instruction Decal

$

$

Currently unavailable

380

Lawn-Boy 640086

Carburetor (Incl. Ref. #184)

$

$

Currently unavailable

383

Lawn-Boy 570434

Spit Cup

$

$

Currently unavailable

384

Lawn-Boy 650431

Screw, Torx T-25

$

$

Currently unavailable

390

Lawn-Boy 590743

Rewind Starter

$

$

Currently unavailable

400

Lawn-Boy 510324B

Gasket Set

$

$

Currently unavailable

420

Lawn-Boy 730227A

2-Cycle Oil (8 oz.)

$

$

Currently unavailable
