28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 200000001 - 200999999) (2000) LINKAGE AND TRACTION ASSEMBLY Parts Diagram

22" Snow Thrower

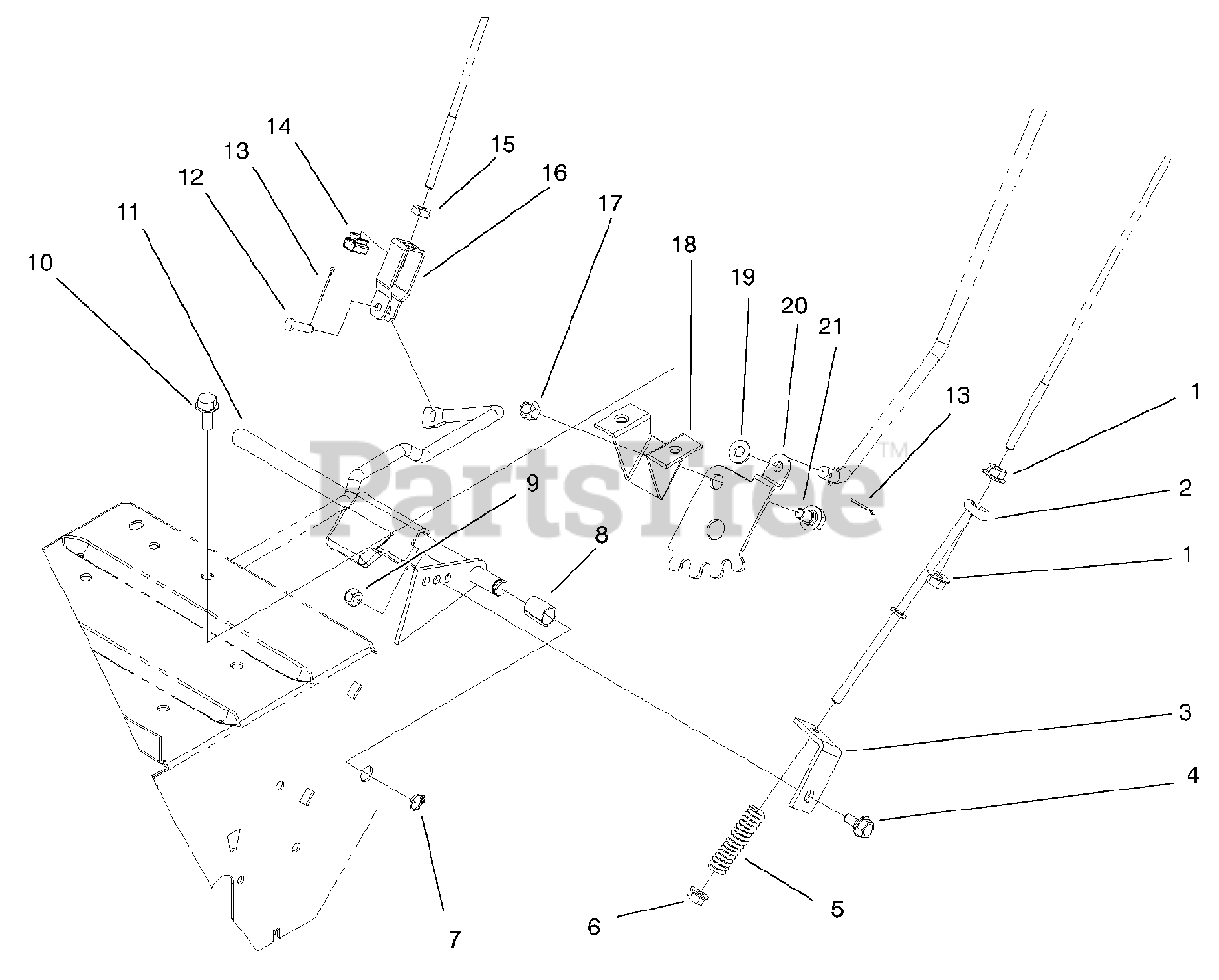

LINKAGE AND TRACTION ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 32128-33

Nut-HF

$0.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 39-3060

Rod-Traction, Lower

$39.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 38-4490

Bracket-Traction

$10.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 40-8350

Screw

$7.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 38-4520

Spring

$15.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 32128-32

Nut-Hex, Flange

$2.99

$

In Stock, Qty 8

0

7

Lawn-Boy 32151-61

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 40-9680

Spacer

$

$

Not available

9

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 32144-70

Screw-HH

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 43-7310-03

Traction Arm Assembly

$77.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 283-3

Pin-Clevis

$0.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 3272-4

Pin-Cotter

$0.99

$

In Stock, Qty 6

0

14

Lawn-Boy 32115-5

Nut-Retained

$6.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 3218-1

Nut-Jam

$1.49

$

In Stock, only 4 left!

0

16

Lawn-Boy 39-3080

Clevis

$14.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 37-8790

Mount-Lever

$

$

Not available

19

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 37-8800

Gear-Quadrant

$23.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 37-8770

Bolt-shoulder

$1.49

$

In Stock, only 1 left!

0
