285Z (RZT 2552) (2691199-00) - Snapper 52" Zero-Turn Mower, 25hp Parking Brake Group Parts Diagram

52" Zero-Turn Mower, 25hp

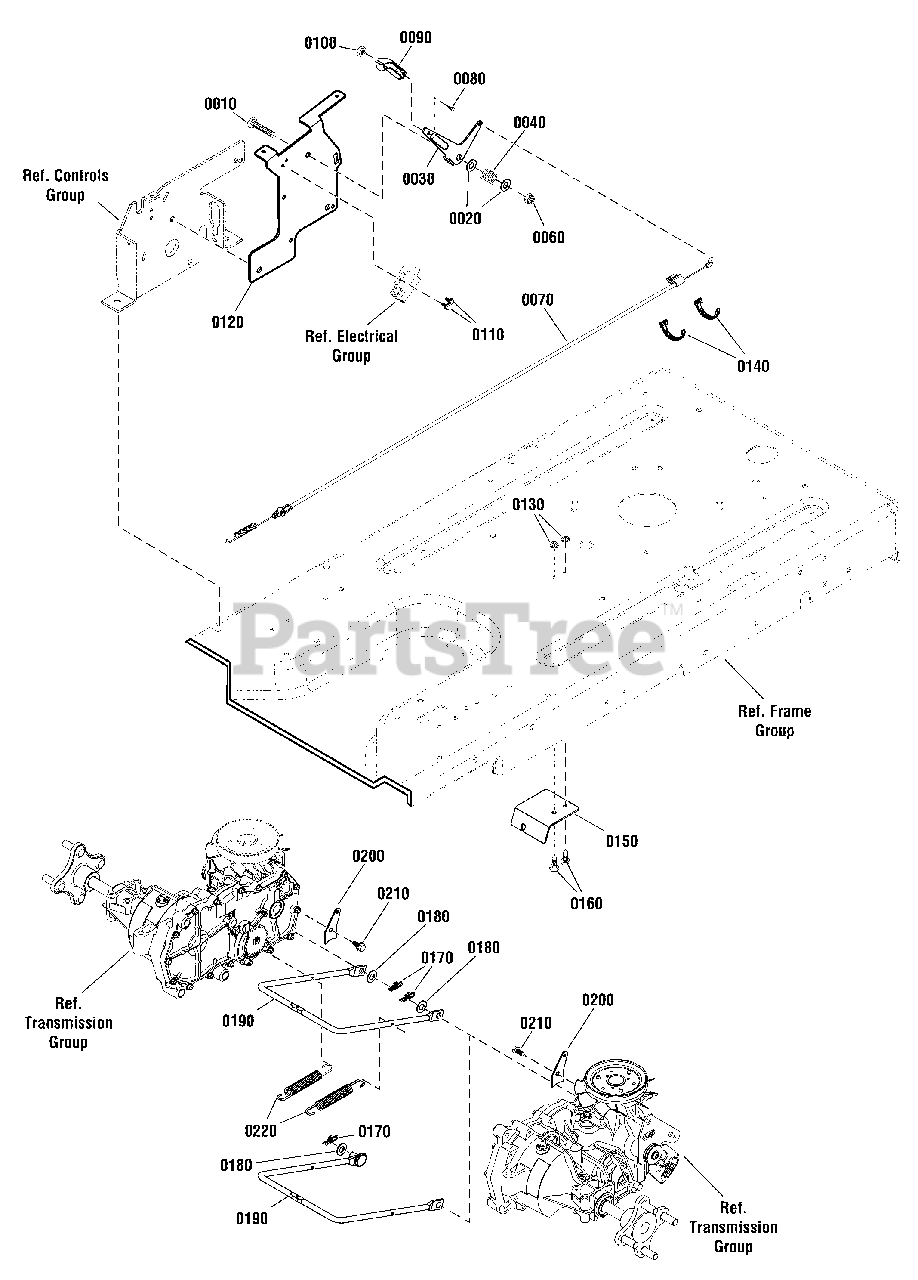

Parking Brake Group Parts Diagram

  • Title

0010

Snapper 7091560YP

SCREW, 3/8-16 x 2-1/4 Hex Head Cap, GR 5, YZ
(Superseded to 703872)

$4.99

$

In Stock, Qty 8

0

0020

Snapper 7090517SM

WASHER, 7/16 Flat, YZ

$4.49

$

In Stock, Qty 8

0

0030

Snapper 7301074YP

LEVER, Park Brake

$10.99

$

Usually ships in 2-12 days

0

0040

Snapper 7028036YP

SPRING, Friction Pack

$6.99

$

Usually ships in 2-12 days

0

0060

Snapper 7091299SM

NUT, 3/8-16,Hex Nyloc, YZ
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0070

Snapper 7103792YP

CABLE, Park Brake, RZT

$33.99

$

In Stock, only 3 left!

0

0080

Snapper 7091017YP

SCREW, #8-32 x 3/8 Cross Recess Filister Head, GR 2, BZ

$3.99

$

In Stock, Qty 5

0

0090

Snapper 7023655YP

LEVER, Throttle Control

$3.99

$

Usually ships in 2-12 days

0

0100

Snapper 7091018YP

NUT, #8-32 Hex, GR 2B, YZ
(Superseded to 703460)

$3.99

$

In Stock, Qty 11

0

0110

Snapper 7090913SM

SCREW, #10-24 x 1/2 Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

0120

Snapper 7301075BMYP

BRACKET, Lever, Park Brake

$22.99

$

Usually ships in 2-12 days

0

0130

Snapper 7091584SM

NUT, 1/4-20 Hex Flange Lock, Black
(Superseded to 703233)

Note: (Was 1960294 or 80002727)

$4.49

$

In Stock, only 1 left!

0

0140

Snapper 7012080SM

* CABLE TIE, 7.0
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0150

Snapper 7301086BMYP

BRACKET, Cable, Park Brake

$7.49

$

Usually ships in 2-12 days

0

0160

Snapper 703338

SCREW, 1/4-20 x 5/8 Hex Head Cap, GR 5, Zinc/Clear

Note: (Was 7027172, 7090072 or 80002437)

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper 7091594SM

COTTER PIN, 1/2 Self, YZ

$2.99

$

In Stock, only 1 left!

0

0180

Snapper 7090122YP

WASHER, 3/8 Flat (SAE) YZ
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

0190

Snapper 7103436YP

ROD, Park Brake, RZT

$48.99

$

In Stock, only 1 left!

0

0200

Snapper 7301092BMYP

TAB, Spring, Park Brake

$14.99

$

In Stock, only 1 left!

0

0210

Snapper B4300GS

SCREW, 1/4-20 x 1/2 Hex Washer Self-Tap, Black
(Superseded to 704130)

Note: (Was 1925003 or 80002738)

$3.99

$

In Stock, Qty 20+

0

0220

Snapper 703144

SPRING, Extension, 0.562 OD x 4.250 LG .049 Wire, Black

Note: (Was 2159106 or 80003643)

$5.99

$

In Stock, Qty 10

0
