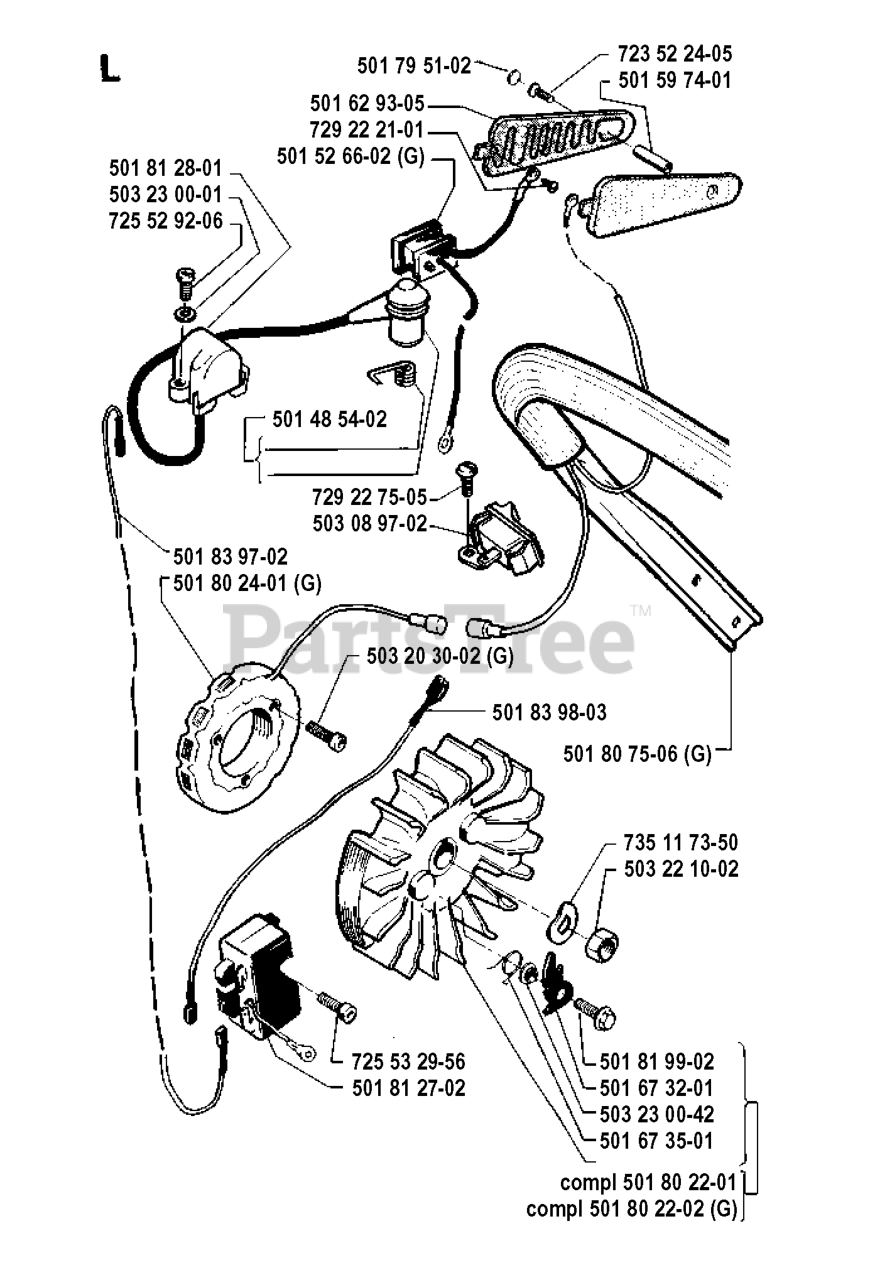

288 - Husqvarna Chainsaw (SN: 19900100001 - 19911400000) ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

501 80 24-01

Husqvarna 501802401

GENERATOR

Note: G

$

$

Not available

503 23 00-01

Husqvarna 503230001

WASHER 4.2X9

$5.99

$

Usually ships in 3-10 days

0

503 23 00-42

Husqvarna 503230042

WASHER

$6.49

$

In Stock, Qty 16

0

735 11 73-50

Husqvarna 735117350

SPRING WASHER 10.5X18

$4.99

$

In Stock, only 1 left!

0

501 83 98-03

Husqvarna 501839803

LEAD

$10.99

$

In Stock, only 2 left!

0

723 52 24-05

Husqvarna 723522405

SCREW
(Superseded to 724322405)

$4.99

$

In Stock, Qty 5

0

501 67 32-01

Husqvarna 501673201

PAWL

$8.99

$

In Stock, Qty 14

0

501 81 28-01

Husqvarna 501812801

IGNITION COIL

$113.99

$

Usually ships in 3-10 days

0

501 80 75-06

Husqvarna 501807506

FRONT HANDLE G

Note: G

$

$

Not available

501 80 22-01

Husqvarna 501802201

Flywheel

$

$

Not available

503 08 97-02

Husqvarna 503089702

SWITCH
(Superseded to 503717901)

$17.99

$

In Stock, Qty 20+

0

501 83 97-02

Husqvarna 501839702

LEAD

$12.99

$

In Stock, Qty 5

0

501 52 66-02

Husqvarna 501526602

SWITCH HEATING

Note: G

$27.68

$

Usually ships in 3-10 days

0

725 53 29-56

Husqvarna 725532956

SCREW MC6S 5X16
(Superseded to 725532955)

$6.49

$

In Stock, Qty 20+

0

501 79 51-02

Husqvarna 501795102

WASHER

$4.99

$

In Stock, only 1 left!

0

503 22 10-02

Husqvarna 503221002

NUT M10X1

$6.99

$

In Stock, Qty 7

0

501 80 22-02

Husqvarna 501802202

FLYWHEEL
(Superseded to 504701602)

Note: G

$447.19

$

Usually ships in 3-10 days

0

501 59 74-01

Husqvarna 501597401

SPACER

$

$

Not available

501 81 99-02

Husqvarna 501819902

SCREW 5X18
(Superseded to 501819901)

$6.49

$

In Stock, Qty 8

0

729 22 21-01

Husqvarna 729222101

SCREW CSK B4X6

$

$

Not available

501 62 93-05

Husqvarna 501629305

HANDLE CIRCUIT

$

$

Not available

501 67 35-01

Husqvarna 501673501

SPRING

$7.49

$

In Stock, Qty 20+

0

725 52 92-06

Husqvarna 725529206

SCREW MC6S 4X14
(Superseded to 725529356)

$5.99

$

In Stock, Qty 5

0

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$12.99

$

In Stock, Qty 20+

0

501 81 27-02

Husqvarna 501812702

ELECTRONIC BOX

$136.99

$

In Stock, only 1 left!

0

729 22 75-05

Husqvarna 729227505

SCREW CSK B6X6
(Superseded to 503212806)

$6.49

$

Usually ships in 3-10 days

0

503 20 30-02

Husqvarna 503203002

Note: G

$

$

Currently unavailable
