294 (294124) - Cub Cadet Walk-Behind Mower (1984) Rotary Mower Drive Parts Diagram

Walk-Behind Mower

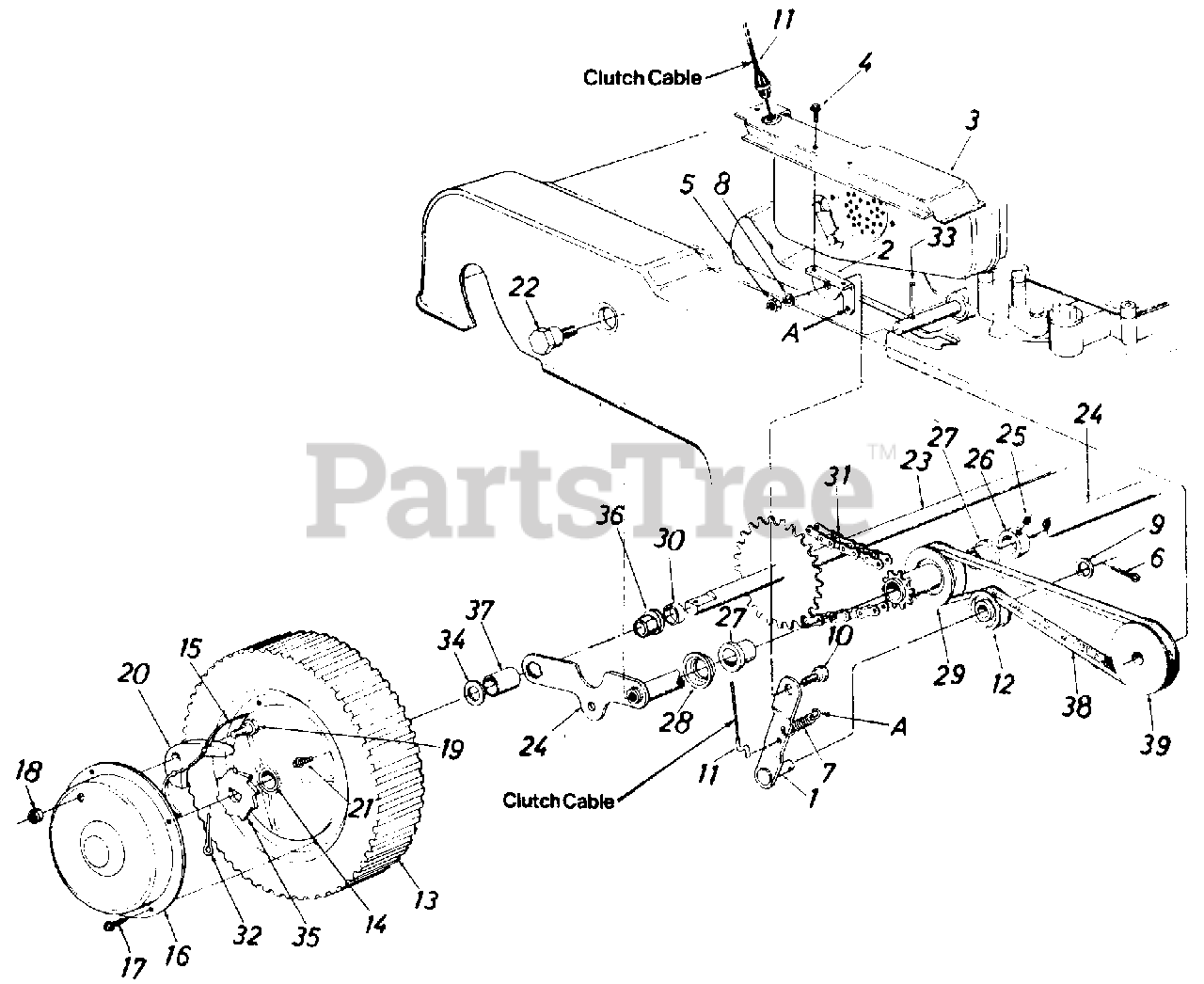

Rotary Mower Drive Parts Diagram

  • Title

1

Cub Cadet 14181

Idler Brkt. Ass'y.

$

$

Currently unavailable

2

Cub Cadet 14245

Idler Mounting Brkt.

$

$

Currently unavailable

3

Cub Cadet 14186

Belt Guard

$

$

Currently unavailable

4

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 1 left!

0

7

Cub Cadet 732-0357

Extension Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

8

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0160

Fl-Wash. .531" I.D. x .930" O.D. x .050

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet 738-0255

Shld. Bolt .375" Dia. x 1.89
(Superseded to 938-0255)

$4.99

$

In Stock, Qty 10

0

11

Cub Cadet 746-0464

Clutch Cable - 59"

$

$

Not available

12

Cub Cadet 756-0360

Flat Idler 1.62" Dia.

$

$

Not available

13

Cub Cadet 734-0880

Wheel Ass'y. Comp. (Rear)

$

$

Not available

14

Cub Cadet 741-0262

Flange Brg. 1/2" I.D. (Rear)

$7.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 10622

Spring - Nylon
(Superseded to 10622BP)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 10647

Rear Hub Cap

$

$

Not available

17

Cub Cadet 710-0748

Pan Hd. Tap Scr. #12 x .50"

$

$

Not available

18

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet 738-0137

Shld. Bolt .342" Dia. x .268

$

$

Not available

20

Cub Cadet 748-0188

Pawl
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 18

0

21

Cub Cadet 710-0200

Hex Wash. Hd. Tap Scr. #8 x .50" Lg.

$

$

Not available

22

Cub Cadet 738-0149

Shld. Bolt .625" Dia. x .425"

$

$

Not available

23

Cub Cadet 11866

Rear Shaft Ass'y.

$

$

Not available

24

Cub Cadet 14937

Rear Axle Ass'y.

$

$

Currently unavailable

25

Cub Cadet 710-0421

Set Scr. 5/16-18 x .25" Lg. Cup Point

$

$

Not available

26

Cub Cadet 711-0169

Collar 5/8" I.D.

$

$

Not available

27

Cub Cadet 741-0249

Flange Brg. .634" I.D. Plastic

$3.49

$

In Stock, Qty 6

0

28

Cub Cadet 10665

Spacer

$

$

Not available

29

Cub Cadet 756-0191

Pulley w/9 Tooth Sprocket Ass'y.

$

$

Not available

30

Cub Cadet 711-0494

Spacer .53" I.D. x .75" O.D. x .38" Lg.

$

$

Not available

31

Cub Cadet 713-0256

#48 Chain 1/2" Pitch x 32 Links
(Superseded to 913-0144)

$

$

Not available

32

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.00"

$3.99

$

In Stock, only 1 left!

0

33

Cub Cadet 715-0144

Spring Pin Spir. 3/16" Dia. x 1.50" Lg.

$

$

Not available

34

Cub Cadet 736-0160

Fl-Wash. .531" I.D. x .930" O.D. x .050

$3.99

$

In Stock, only 2 left!

0

35

Cub Cadet 748-0187

Ratchet - Rear Wheel

$

$

Not available

36

Cub Cadet 741-0324

Hex Flange Brg. .506" I.D.
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

37

Cub Cadet 750-0190

Spacer .756" I.D. x .89" O.D. x .960" Lg.

$

$

Not available

38

Cub Cadet 754-0114

"V"-Belt 1/2" x 24" Lg.

$

$

Not available

39

Cub Cadet 756-0384

1/2" "V"-Pulley .50" I.D. x 2.52" O.D.

$

$

Not available
