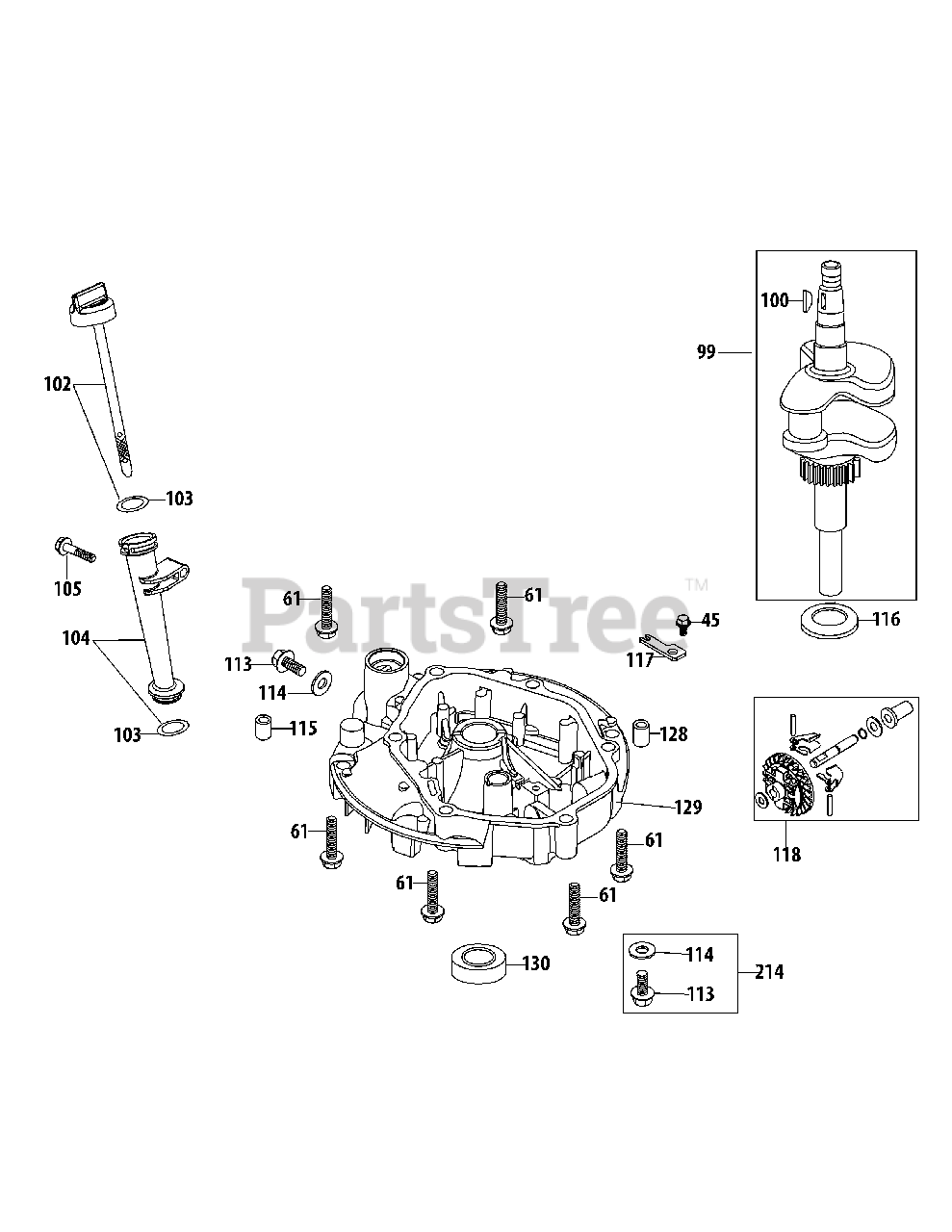

2P70MU - Troy-Bilt Engine 2P70MU Crankshaft & Crankcase Cover Parts Diagram

Engine

2P70MU Crankshaft & Crankcase Cover Parts Diagram

  • Title

45

Troy-Bilt 710-04916

Bolt M6X14

$4.49

$

In Stock, only 2 left!

0

61

Troy-Bilt 710-04922

Bolt M8X50

$4.49

$

Usually ships in 3-6 days

0

99

Troy-Bilt 951-11624

Crankshaft Assembly

$142.99

$

Usually ships in 3-6 days

0

100

Troy-Bilt 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 9

0

102

Troy-Bilt 951-11764B

Dipstick Assembly

$15.99

$

Usually ships in 3-6 days

0

103

Troy-Bilt 951-11547

Oil Fill Tube O-Ring

$4.49

$

In Stock, only 1 left!

0

104

Troy-Bilt 951-11765A

Oil Filler Tube Assemlby

$19.99

$

In Stock, only 1 left!

0

105

Troy-Bilt 710-04980

Bolt M6X35

$3.99

$

In Stock, only 1 left!

0

113

Troy-Bilt 710-04906

Oil Drain Plug

$6.99

$

In Stock, Qty 6

0

114

Troy-Bilt 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, Qty 6

0

115

Troy-Bilt 715-04089

Crankcase Cover Dowel Pin 9×14

$3.99

$

Usually ships in 3-6 days

0

116

Troy-Bilt 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

117

Troy-Bilt 951-11625

Governor Gear Mounting Plate

$4.49

$

Usually ships in 3-6 days

0

118

Troy-Bilt 951-11626

Governor Gear/Shaft Assembly

$

$

Not available

128

Troy-Bilt 715-04092

Crankcase Cover Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

In Stock, only 2 left!

0

129

Troy-Bilt 951-11794

Crankcase Cover

$93.99

$

Usually ships in 3-6 days

0

130

Troy-Bilt 951-11627

Lower Crankshaft Seal

$

$

Not available

214

Troy-Bilt 951-10370

Oil Drain Plug And Washer Assy

$9.49

$

Usually ships in 3-6 days

0
