30184 - Toro 91cm ProLine Walk-Behind Mower, Gear Drive, 13hp (SN: 200000001 - 200999999) (2000) GUARDS ASSEMBLY Parts Diagram

91cm ProLine Walk-Behind Mower, Gear Drive, 13hp

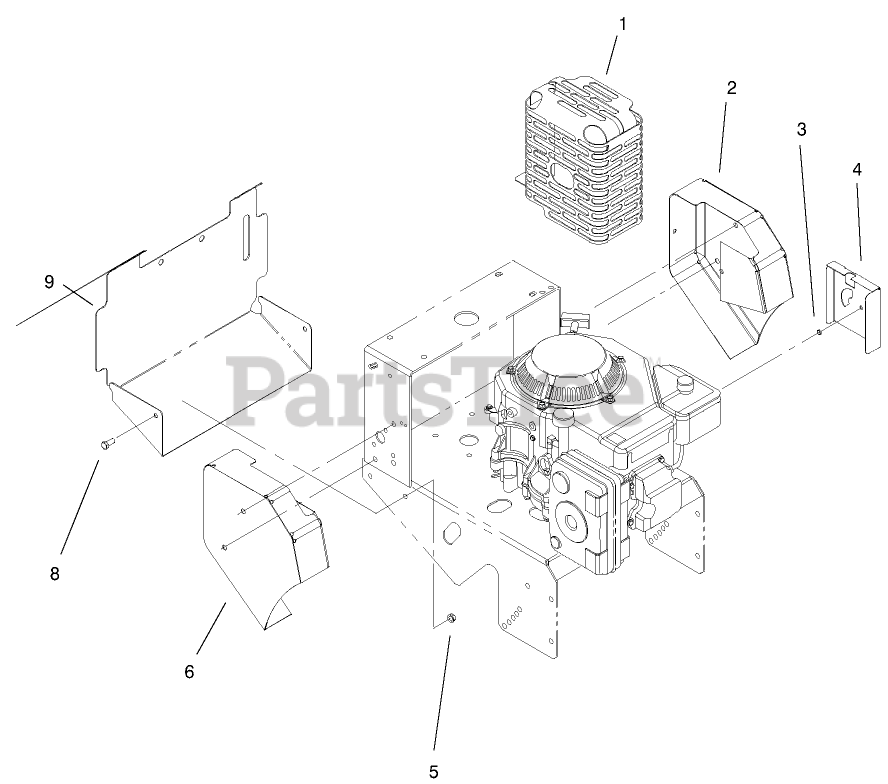

GUARDS ASSEMBLY Parts Diagram

  • Title

1

Toro E323649

Guard-Muffler
(Superseded to 98-3285-03)

$

$

Not available

2

Toro E322219

LH Belt Guard
(Superseded to 1-322219-01)

$

$

Not available

3

Toro E323679

Spacer Throttle

$

$

Not available

4

Toro E323678

Cover-Throttle Linkage
(Superseded to 1-323678-03)

$

$

Not available

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro E322220

RH Belt Guard

$

$

Not available

8

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

9

Toro E323648

Cover-Rear

$

$

Not available
