30329 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210000001 - 210999999) (2001) OIL PAN AND LUBRICATION ASSEMBLY KOHLER MODEL CV15T-41604 Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 15hp

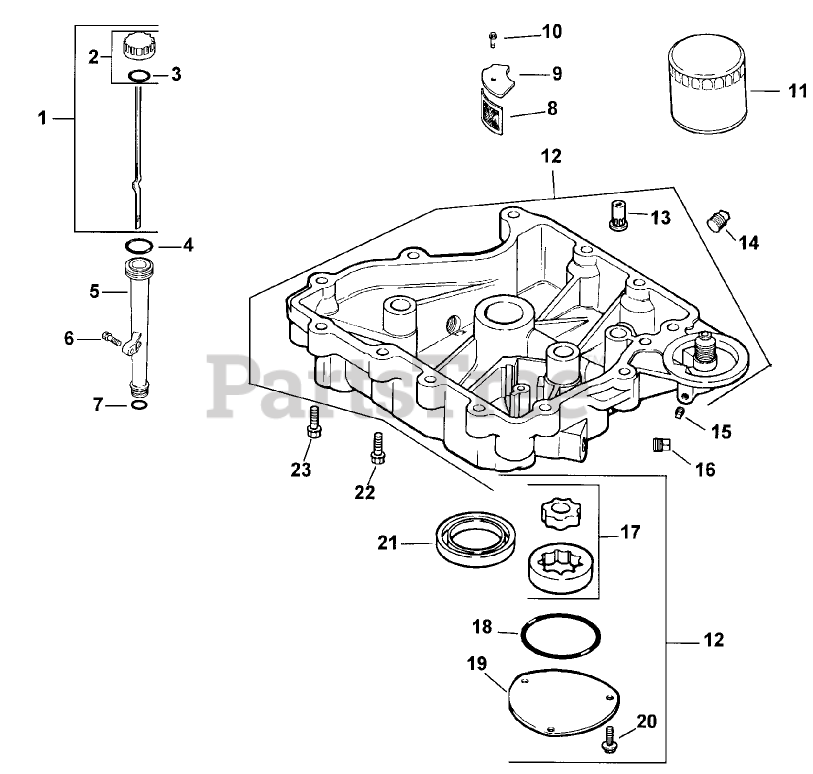

OIL PAN AND LUBRICATION ASSEMBLY KOHLER MODEL CV15T-41604 Parts Diagram

  • Title
1

Kohler 12 038 01-S

Dipstick ASM(Incl. 2-3)

Note: Order Parts from Kohler

$24.99

$

In Stock, only 2 left!

0

2

Kohler 25 755 13-S

Kit-Oil Fill Cap (Incl. 3)

Note: Order Parts from Kohler

$13.99

$

Usually ships in 2-5 days

0

3

Kohler 12 153 03-S

O-Ring
(Superseded to 25 153 02-S)

Note: Order Parts from Kohler

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 12 153 02-S

O-RING

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 9

0

5

Kohler 12 123 04-S

OIL FILL TUBE KIT
(Superseded to 25 123 07-S)

Note: Order Parts from Kohler

$16.99

$

In Stock, only 1 left!

0

6

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 6

0

7

Kohler 12 153 01-S

O-RING

Note: Order Parts from Kohler

$4.99

$

In Stock, Qty 17

0

8

Kohler 25 162 07-S

Screen-Pickup, Oil
(Superseded to 24 162 26-S)

Note: Order Parts from Kohler

$17.99

$

In Stock, only 1 left!

0

9

Kohler 12 096 03-S

Cover-Screen, Oil Pickup

Note: Order Parts from Kohler

$13.99

$

In Stock, only 1 left!

0

10

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Order Parts from Kohler

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

Note: Order Parts from Kohler

$14.99

$

In Stock, Qty 20+

0

12

Kohler 12 199 50-S

Pan ASM-Oil (Incl.13, 17-20)

Note: Order Parts from Kohler

$575.99

$

Usually ships in 2-5 days

0

13

Kohler 25 462 09-S

Valve-Relief, Oil Pressure

Note: Order Parts from Kohler

$12.99

$

In Stock, only 1 left!

0

14

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Order Parts from Kohler

$2.49

$

In Stock, only 3 left!

0

15

Kohler 25 139 52-S

Plug-Pipe (1/8in)

Note: Order Parts from Kohler

$3.49

$

In Stock, only 1 left!

0

16

Kohler 25 139 62-S

Plug-pipe, HH (3/8)

Note: Order Parts from Kohler

$3.49

$

In Stock, only 2 left!

0

17

Kohler 12 393 01-S

Oil Pump ASM

Note: Order Parts from Kohler

$

$

Not available

18

Kohler 12 153 06-S

O-Ring (Oil Pump Cover)

Note: Order Parts from Kohler

$3.99

$

In Stock, only 4 left!

0

19

Kohler 12 096 34-S

Cover-Pump, Oil

Note: Order Parts from Kohler

$14.99

$

In Stock, only 1 left!

0

20

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Order Parts from Kohler

$3.99

$

Usually ships in 2-5 days

0

21

Kohler 12 032 03-S

Seal-Oil

Note: Order Parts from Kohler

$

$

Not available

22

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 5

0

23

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 5

0
