30329 - Toro 36" ProLine Walk-Behind Mower, Gear Drive, 15hp (SN: 210000001 - 210999999) (2001) UPPER HANDLE ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Gear Drive, 15hp

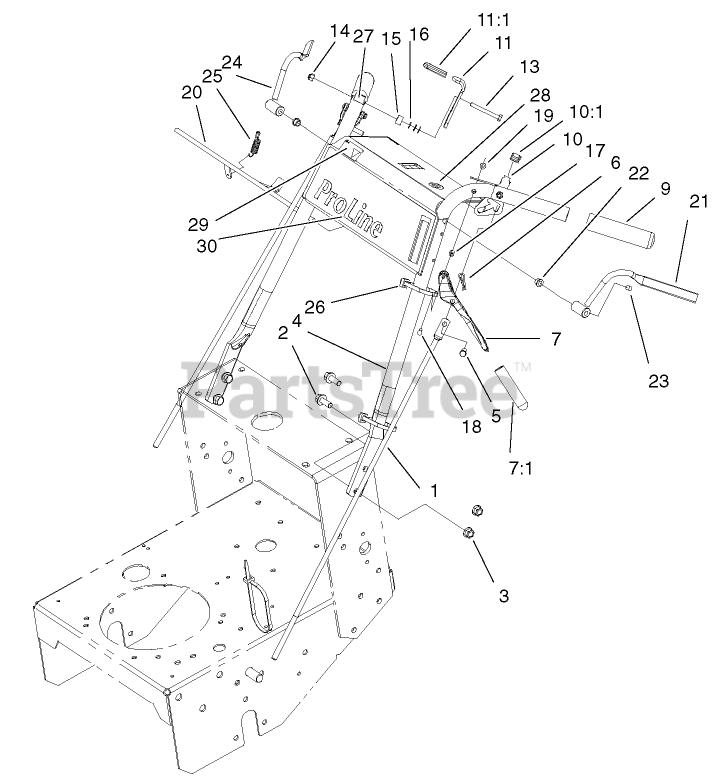

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 104-9843

LINKAGE-DRIVE

$

$

Not available

2

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

3

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 105-4138

HANDLE ASM

$

$

Not available

5

Toro 1-808286

PIN-CLEVIS

$5.49

$

In Stock, Qty 20+

0

6

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

7

Toro 1-302006

DRIVE LEVER ASM

$54.99

$

In Stock, Qty 5

0

7:1

Toro 1-303021

GRIP-LEVER, DRIVE

$1.49

$

In Stock, Qty 17

0

9

Toro 104-9838

GRIP-FOAM

$5.99

$

In Stock, Qty 16

0

10

Toro 1-324279

LH THUMB LATCH ASM
(Superseded to 137-9508)

$26.99

$

In Stock, only 2 left!

0

10:1

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

11

Toro 1-324280

RH THUMB LATCH ASM
(Superseded to 137-9507)

$26.99

$

In Stock, only 2 left!

0

11:1

Toro 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

13

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 1-323549

SPACER

$13.99

$

Usually ships in 3-6 days

0

16

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

17

Toro 1-806340

PIN-ROLL

$5.49

$

In Stock, only 2 left!

0

18

Toro 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

19

$1.49

$

In Stock, Qty 20+

0

20

Toro 104-9803

ROD ASM

$127.99

$

Usually ships in 3-6 days

0

21

Toro 1-412183-03

LEVER-LH

$37.99

$

In Stock, Qty 5

0

22

Toro 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

23

Toro 1-803322

SCREW-SET

$1.49

$

In Stock, only 1 left!

0

24

Toro 1-412185-03

LEVER-RH

$37.99

$

In Stock, only 4 left!

0

25

Toro 1-303363

SPRING-EXTENSION

$6.49

$

Usually ships in 3-6 days

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 105-4111

DECAL-LOCK, NEUTRAL

$7.49

$

Usually ships in 3-6 days

0

28

Toro 105-4105

DECAL-WARNING

$

$

Not available

29

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

30

Toro 105-4108

DECAL-PROLINE

$

$

Not available
