3041 (UT-26304) - Green Machine Brush Cutter Attachment 3041 Gearcase Attachment (UT-26304) Parts Diagram

Brush Cutter Attachment

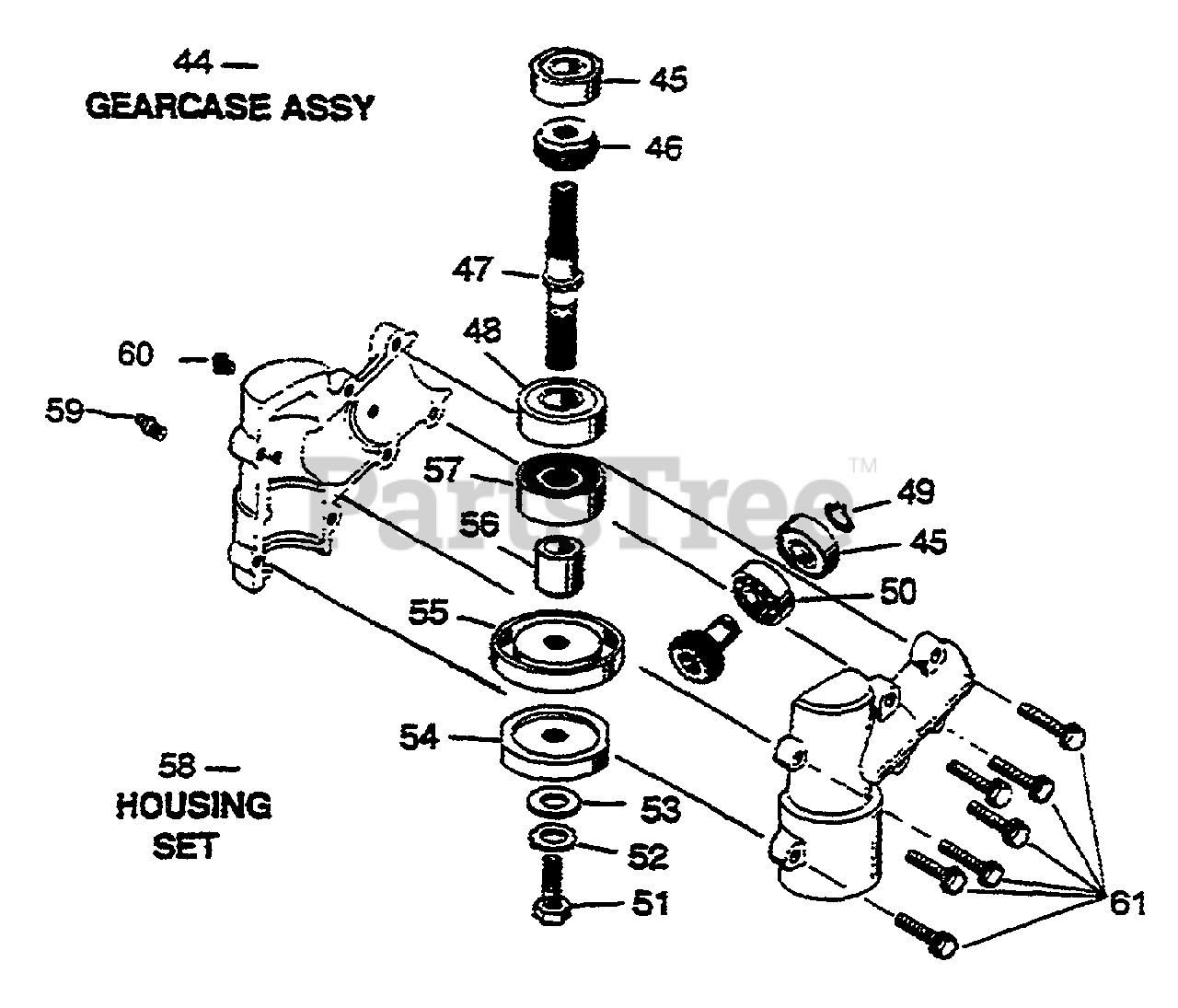

3041 Gearcase Attachment (UT-26304) Parts Diagram

  • Title

44

Homelite GM300352

GEARCASE ASSY

Note: Includes ref nos 45 thru 61

$

$

Currently unavailable

45

Homelite GM070006

BEARING
(Superseded to UP06387)

$

$

Not available

46

Homelite GM300623

GEAR SET KIT

$47.99

$

Usually ships in 3-7 days

0

47

Homelite GM300055

SHAFT, GEAR

$

$

Currently unavailable

48

Homelite GM070005

BEARING
(Superseded to 09146)

$

$

Not available

49

Homelite GM060007

SNAP RING

$

$

Not available

50

Homelite GM070007

BEARING
(Superseded to UP06393)

$

$

Not available

51

Homelite GM300080

BOLT
(Superseded to UP08260)

$

$

Not available

52

Homelite GM040007

WASHER
(Superseded to UP06519)

$

$

Not available

53

Homelite GM041003

WASHER

$

$

Not available

54

Homelite GM300075

HOLDER B
(Superseded to UP06798)

$5.99

$

Usually ships in 3-7 days

0

55

Homelite GM300070

HOLDER A

$

$

Not available

56

Homelite GM300065

COLLAR

$

$

Currently unavailable

57

Homelite GM080003

SEAL

$

$

Currently unavailable

58

Homelite GM300610

HOUSING SET

Note: Includes ref nos 59 thru 61

$

$

Currently unavailable

59

Homelite GM286710

ZERK FITTING

$

$

Not available

60

Homelite GM011310

SCREW, SELF TAPPING
(Superseded to UP04157)

$

$

Not available

61

Homelite GM011309

SCREW, SELF TAPPING
(Superseded to UP07929)

$

$

Not available
