30432 - Toro 52" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 17hp (SN: 240000001 - 240999999) (2004) ENGINE INSTALLATION ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 17hp

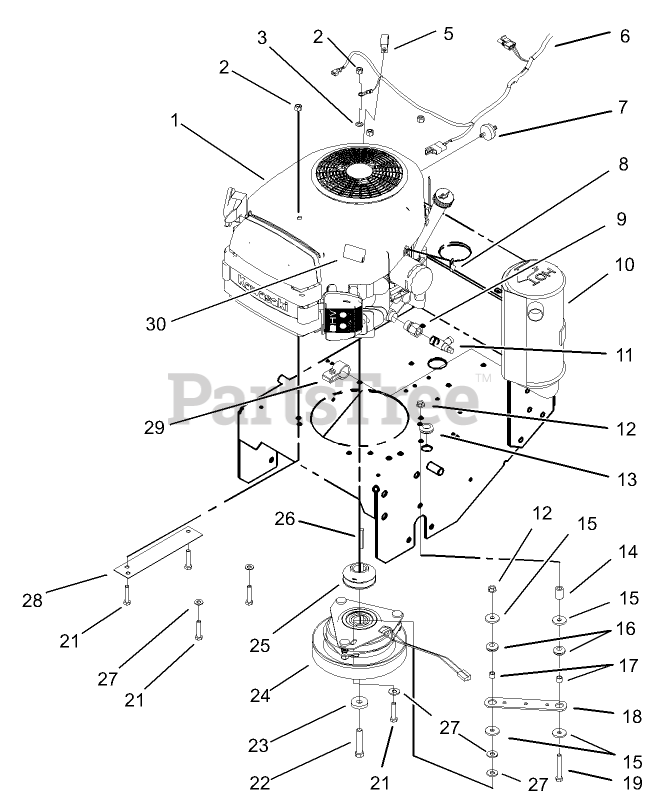

ENGINE INSTALLATION ASSEMBLY Parts Diagram

  • Title

1

Engine-Kawasaki, FH500V-AS29

Note: Not serviced separately

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

5

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

6

Toro 104-9825

HARNESS-WIRE

$

$

Not available

7

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

8

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

9

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

10

Toro 100-6467

MUFFLER

$

$

Not available

11

Toro 103-1965

Valve-Drain, Oil

$55.99

$

In Stock, only 1 left!

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 237-124

GROMMET

$2.99

$

In Stock, only 3 left!

0

14

Toro 104-6373

TUBE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

15

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

16

Toro 1-633630

GROMMET

$5.49

$

In Stock, Qty 20+

0

17

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

18

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 4 left!

0

19

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

21

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3212-9

SCREW-HH

$12.99

$

In Stock, only 1 left!

0

23

Toro 112843

WASHER

$3.49

$

In Stock, Qty 19

0

24

Toro 105-2635

CLUTCH / BRAKE ASM

$576.99

$

Usually ships in 3-6 days

0

25

Toro 105-0827

PULLEY-DRIVE
(Superseded to 107-4112)

$137.99

$

Usually ships in 3-6 days

0

26

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 94-5847-01

COVER-PULLEY

$12.99

$

Usually ships in 3-6 days

0

29

Toro 100-6468

Clamp-Muffler

$0.99

$

Usually ships in 3-6 days

0

30

Toro 106-0699

DECAL-WARNING

$50.99

$

Usually ships in 3-6 days

0

99

Toro 103-1964

HOSE-DRAIN, OIL

Note: Not illustrated

$11.99

$

In Stock, only 1 left!

0
