31-10K801 (310-8) - Toro Garden Tractor (1990) Sheet Metal And Covers Parts Diagram

Garden Tractor

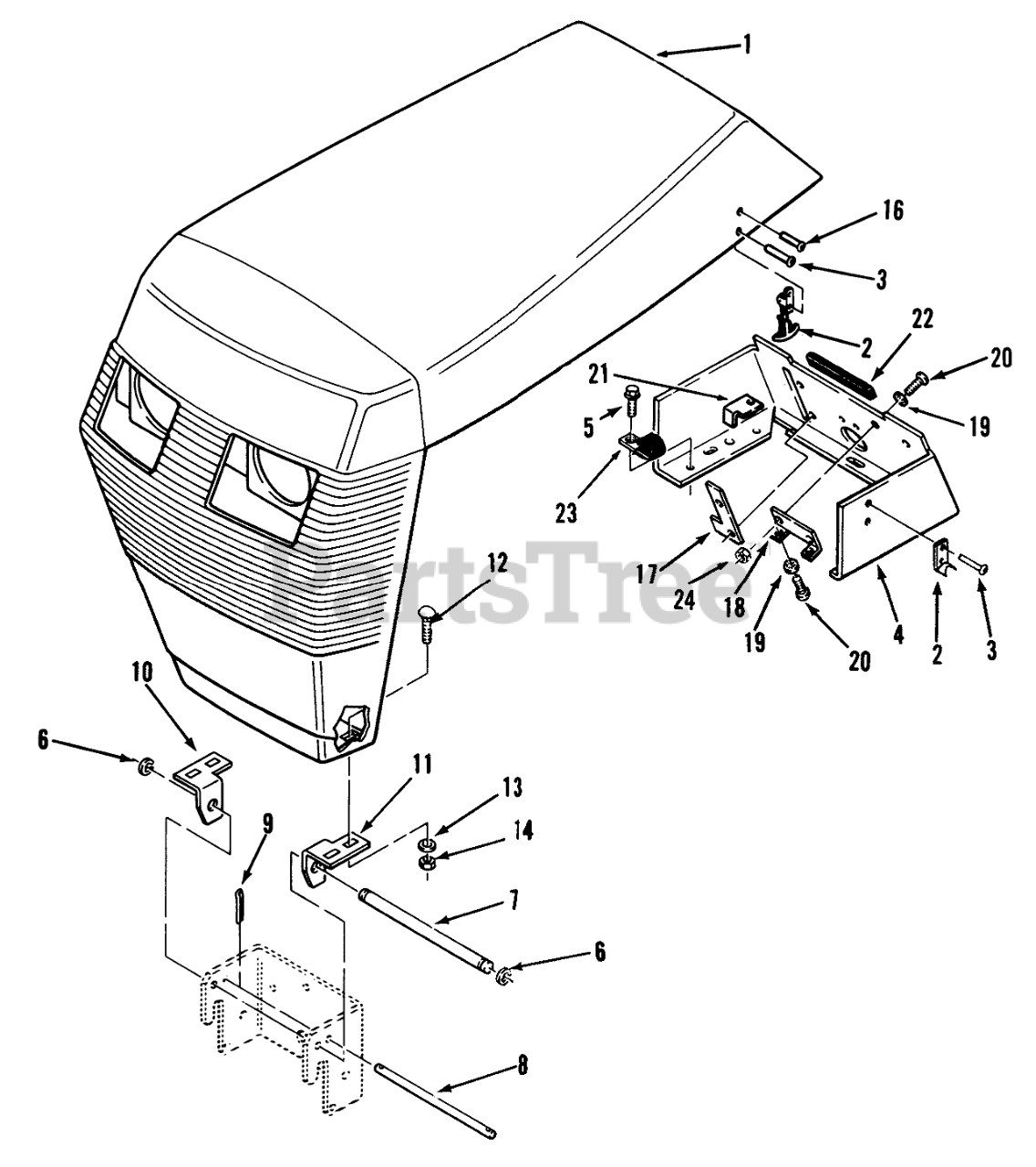

Sheet Metal And Covers Parts Diagram

  • Title

1

Toro 112358

DISCONTINUED
(Superseded to 88-2782)

$

$

Not available

2

Toro 117341

DISCONTINUED

$

$

Not available

3

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

4

Toro 111270

DISCONTINUED

$

$

Not available

Toro 111271

DISCONTINUED
(Superseded to 111271-03)

$

$

Not available

5

Toro 926694

SCREW

$

$

Not available

6

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

7

Toro 116745

ROD-GRILL PIVOT

$14.99

$

In Stock, only 2 left!

0

8

Toro 101850

ROD-HOOD STOP

$18.99

$

Usually ships in 3-6 days

0

9

Toro 932000

See Supercession: 3272-1
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

10

Toro 116746

BRACKET-GRILL, R H

$11.99

$

In Stock, Qty 11

0

11

Toro 116747

BRACKET-GRILL, LH

$11.99

$

In Stock, Qty 6

0

12

Toro 900015

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

13

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

16

Toro 117431

DISCONTINUED

$

$

Not available

17

Toro 111182

STOP THROTTLE

$

$

Not available

18

Toro 112506

BRACKET

$7.99

$

Usually ships in 3-6 days

0

19

Toro 920150

See Supercession: 3254-9
(Superseded to 3254-9)

$0.99

$

Usually ships in 3-6 days

0

20

Toro 910762

SCREW

$

$

Not available

21

Toro 112415

STOP-PTO

$21.99

$

In Stock, only 1 left!

0

22

Toro 111757

EDGING-CONSOLE

$10.99

$

In Stock, only 2 left!

0

23

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

24

Toro 915960

See Supercession: 3217-29
(Superseded to 3217-29)

$0.99

$

Usually ships in 3-6 days

0

Toro 5983

BUSHING-NYLINER

Note: Not illustrated

$4.99

$

In Stock, Qty 16

0
