315-611D352 - MTD Snow Thrower (1995) (Walmart) Engine And V-Belts Parts Diagram

Snow Thrower

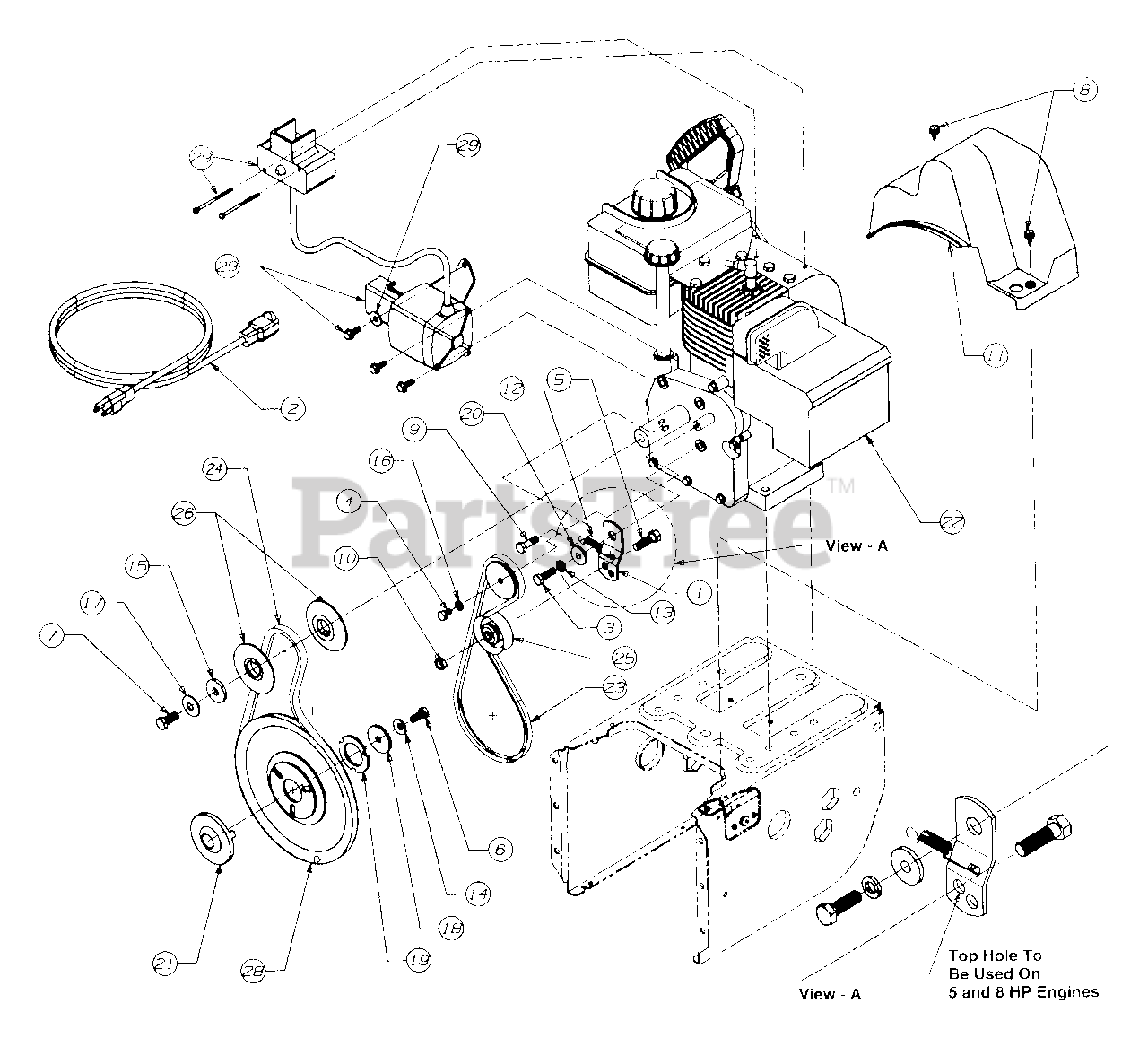

Engine And V-Belts Parts Diagram

  • Title
1

MTD 05896A

Bracket Drive Clutch Idler

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 629-0071

Cord, Extension
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

3

MTD 710-0117

Screw, Hex
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 5

0

4

MTD 710-0230

Hex Screw

$

$

Not available

5

MTD 710-0342

Screw, Hex
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 12

0

6

MTD 710-0627

Screw, hex

$4.49

$

In Stock, Qty 7

0

7

MTD 710-0696

Screw, Hex

$6.99

$

In Stock, only 2 left!

0

8

MTD 710-0776A

Hex Screw
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0888

Screw, Hex

$4.49

$

In Stock, Qty 5

0

10

MTD 712-0181

Hex Jam Nut

$4.49

$

In Stock, only 3 left!

0

11

MTD 731-1324

Belt Cover

$21.99

$

Usually ships in 3-6 days

0

12

MTD 732-0339

Spring
(Superseded to 932-0339)

$

$

Not available

13

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 17

0

14

MTD 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0247

Washer, Flat

$9.49

$

In Stock, Qty 16

0

16

MTD 736-0329

Washer, Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

MTD 736-0331

Washer, Flat

$3.99

$

In Stock, Qty 16

0

18

MTD 736-0505

Washer, Flat

$6.49

$

In Stock, only 2 left!

0

19

MTD 736-0507

Washer
(Superseded to 936-0507)

$6.99

$

Usually ships in 3-6 days

0

20

MTD 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

21

MTD 748-0360

Pulley Adapter
(Superseded to 948-0360)

$22.99

$

In Stock, only 2 left!

0

22

Eng., HSSK Tec. 5.0 HP Horz.

$

$

Not available

23

MTD 754-0343

V-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

24

MTD 754-0430

V-Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

25

MTD 756-0313

Idler, Flat

$26.99

$

In Stock, Qty 6

0

26

MTD 756-0569

Pulley, Half

$10.99

$

Usually ships in 3-6 days

0

?27

MTD 756-0959

Pulley
(Superseded to 956-0959)

$

$

Not available

28

MTD 756-0967

Pulley, Auger

$56.99

$

Usually ships in 3-6 days

0

29

MTD 390-986-000

Electric Start Kit
(Superseded to TC-33290H)

$377.99

$

Usually ships in 3-6 days

0
