316.711170 (41ADZ23C799) - Craftsman String Trimmer (Sears) General Assembly (October 2014 & after) Parts Diagram

String Trimmer

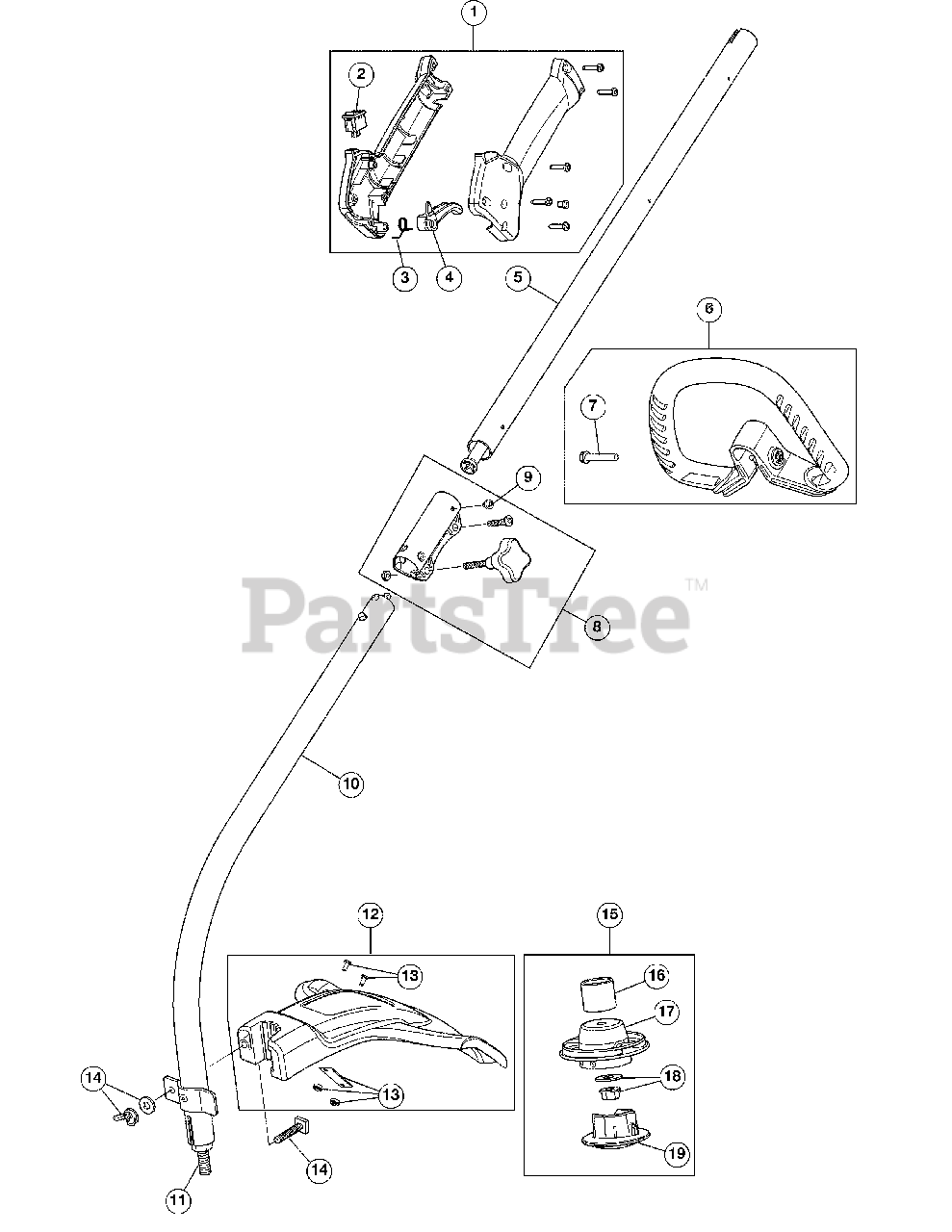

General Assembly (October 2014 & after) Parts Diagram

  • Title

1

MTD 753-06863

Throttle Housing Assembly (Incl. 2 - 4)

$5.49

$

Usually ships in 3-6 days

0

2

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

4

MTD 753-06791

Throttle Trigger

$3.49

$

In Stock, Qty 20+

0

5

MTD 753-06880

Upper Shaft Housing Assembly

$18.99

$

In Stock, Qty 20+

0

6

MTD 753-06039

Deluxe D-Handle Assembly (Incl. 7)

$10.99

$

In Stock, only 3 left!

0

7

MTD 753-06040

Bolt

$6.49

$

In Stock, Qty 8

0

8

MTD 753-08212

Split Boom Coupler (Incl. 9)
(Superseded to 753-1190)

$21.99

$

In Stock, Qty 6

0

9

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 17

0

10

MTD 753-06865

Lower Drive Shaft Housing Assembly (Incl. 11)

$22.99

$

In Stock, Qty 5

0

11

MTD 753-06864

Lower Flexible Drive Shaft

$12.99

$

In Stock, only 1 left!

0

12

MTD 753-04283

Shield Assembly (Incl. 13)

$47.99

$

In Stock, only 4 left!

0

13

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

14

MTD 753-04282

Shield Mounting Hardware

$23.99

$

In Stock, only 4 left!

0

15

MTD 753-06869

Cutting Head Assembly

$19.99

$

Usually ships in 3-6 days

0

16

MTD 753-06866

Weed Guard

$3.49

$

In Stock, only 2 left!

0

17

MTD 753-06867

Cutting Head Spool

$16.99

$

Usually ships in 3-6 days

0

18

MTD 753-06868

Spool Mounting Hardware

$3.49

$

Usually ships in 3-6 days

0

19

MTD 753-06849

Cutting Head Cap

$

$

Not available

MTD OL-216-OM

Oil, 2-Cycle 16 OZ.

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 9

0

MTD 625-04120

Corded Electric Starter Accessory

Note: (Optional Accessory)

$72.99

$

Usually ships in 3-6 days

0

MTD 49MESCBP953

Drill Bit Electric Start Adaptor
(Superseded to 49MASCBP953)

Note: (Optional Accessory)

$18.99

$

In Stock, Qty 7

0

MTD 22216

32 oz. Sta-Bil fuel Additive
(Superseded to 22287)

Note: (Optional Accessory)

$16.99

$

In Stock, only 1 left!

0

MTD 753-06767

.110 Hassle Free™ XTRA QUIET Spiral Line

Note: (Optional Accessory)

$8.99

$

In Stock, Qty 6
