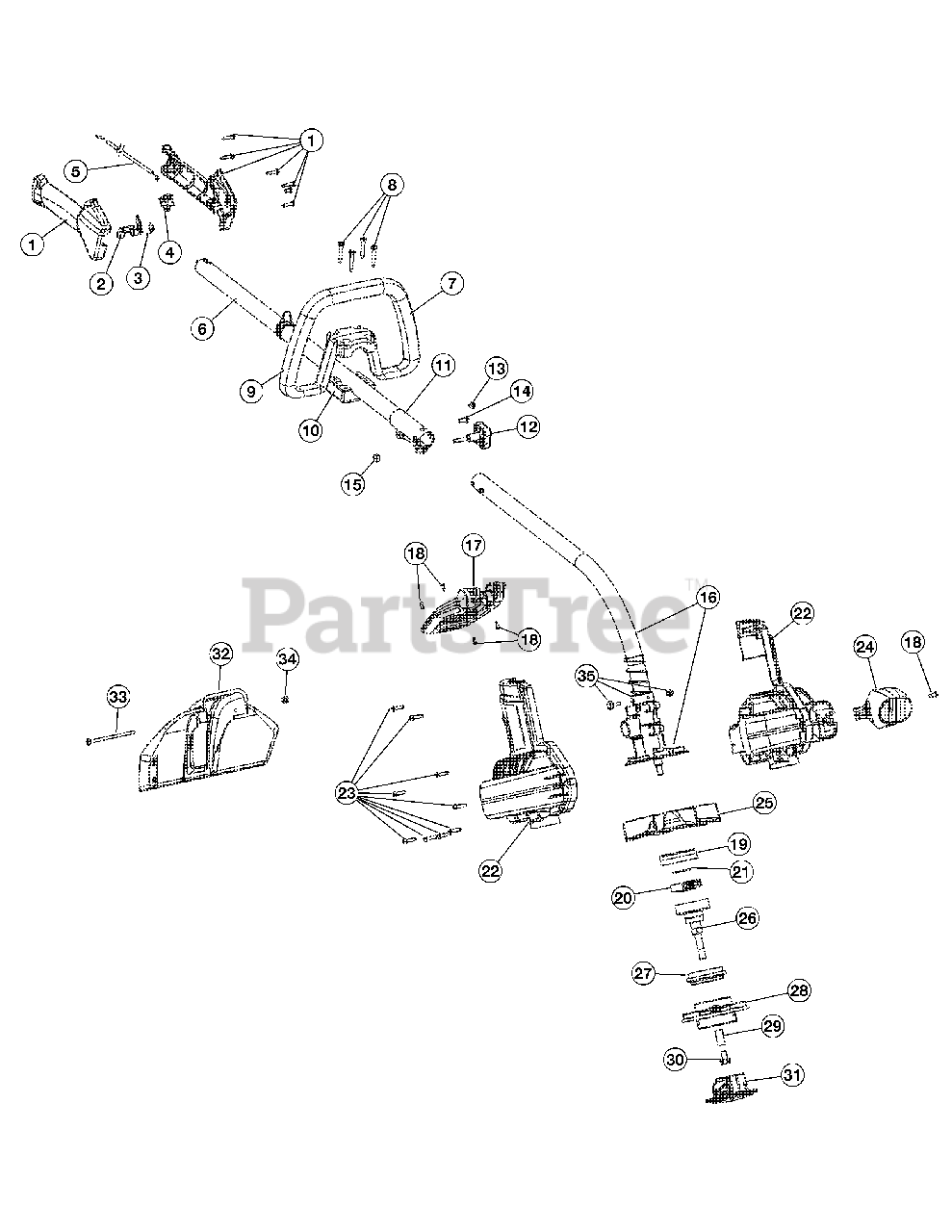

316.791920 (41AD2TBC799) - Craftsman String Trimmer (Sears) Boom and Trimmer Parts Diagram

String Trimmer

Boom and Trimmer Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (includes 2-4)

$19.99

$

In Stock, Qty 20+

0

2

MTD 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

4

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

5

MTD 753-05222

Throttle Cable (marked 746-04234)

$14.99

$

Usually ships in 3-6 days

0

6

MTD 753-04236

Upper Drive Shaft Housing Assembly

$89.99

$

In Stock, Qty 7

0

7

MTD 791-180869

Deluxe D-Handle Assembly (includes 8-10)

$

$

Not available

8

MTD 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

9

MTD 791-182167

D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

D-Handle Base

$

$

Not available

11

MTD 753-1190

Split Boom Coupler (includes 12-15)

$21.99

$

In Stock, only 4 left!

0

12

MTD 791-181981

Adjustment Knob (includes 15)
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

13

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

14

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

15

MTD 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

16

MTD 753-05272

Lower Drive Shaft Housing Assembly

$108.99

$

Usually ships in 3-6 days

0

17

MTD 753-05258

Handle Shift Assembly (includes 18)

$

$

Not available

18

MTD 753-1202

Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

19

MTD 753-05233

Clutch Drum Container

$

$

Not available

20

MTD 753-05257

Clutch Assembly

$51.99

$

Usually ships in 3-6 days

0

21

MTD 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

22

MTD 753-05273

Housing Assembly (includes 23)

$

$

Not available

23

MTD 753-05274

Screw
(Superseded to 710-04508)

$3.99

$

In Stock, only 3 left!

0

24

MTD 753-05275

Nozzle

$39.99

$

Usually ships in 3-6 days

0

25

MTD 753-05276

Impeller

$33.99

$

Usually ships in 3-6 days

0

26

MTD 753-05277

Clutch Drum Assembly w/Spool Shaft

$

$

Not available

27

MTD 753-05278

Adapter
(Superseded to 753-05034)

$6.99

$

In Stock, Qty 7

0

28

MTD 753-05279

Cutting Head Assembly

$38.99

$

Usually ships in 3-6 days

0

29

MTD 753-05280

Spacer

$

$

Not available

30

MTD 753-05281

Bolt
(Superseded to 710-04562)

$3.99

$

In Stock, Qty 20+

0

31

MTD 753-05036

Cap
(Superseded to 731-05193)

$

$

Not available

32

MTD 753-05282

Guard Assembly w/Blade (includes 33 & 34)

$

$

Not available

33

MTD 753-05283

Screw
(Superseded to 710-04563)

$4.49

$

In Stock, only 1 left!

0

34

MTD 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 9

0

35

MTD 791-153597

Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0
