3185 (14A-665-100) - Cub Cadet Garden Tractor Carburetor, Fuel System And Intake Manifold Parts Diagram

Garden Tractor

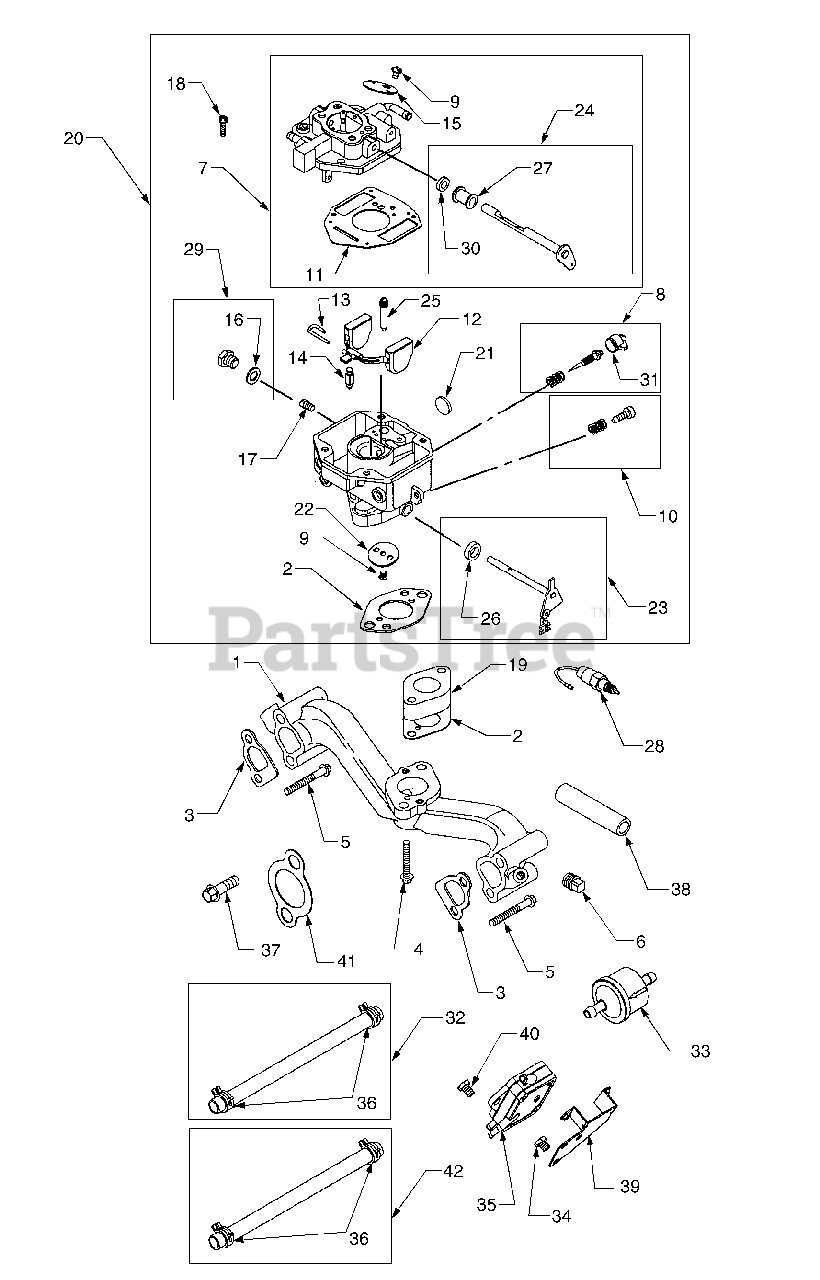

Carburetor, Fuel System And Intake Manifold Parts Diagram

  • Title

1

Cub Cadet BS-806295

Manifold, Intake

$

$

Not available

2

Cub Cadet BS-805700

Gasket, Intake
(Superseded to BS-691694)

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet BS-805023

Gasket, Intake
(Superseded to BS-692035)

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-805466

Screw, Hex

$

$

Not available

5

Cub Cadet BS-805006

Screw, Hex

$

$

Not available

6

Cub Cadet BS-94188

Plug, Oil

$

$

Currently unavailable

7

Cub Cadet BS-808396

Body Assembly, Upper

$124.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-808399

Valve, Idle Adjust

$33.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-805538

Screw, Slotted
(Superseded to BS-690718)

$5.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-808177

Screw, Throttle Adjust

$13.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-805541

Gasket, Carburetor Body
(Superseded to BS-692077)

$25.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-805546

Float, Carburetor
(Superseded to BS-844546)

$29.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-805545

Pin, Float Hinge

$

$

Not available

14

Cub Cadet BS-805547

Valve, Fuel Inlet
(Superseded to BS-808798)

$

$

Not available

15

Cub Cadet BS-806134

Valve, Choke

$8.49

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-805549

Washer, Seal

$

$

Not available

17

Cub Cadet BS-808126

Jet, Main

$

$

Currently unavailable

18

Cub Cadet BS-805540

Screw, Hex
(Superseded to BS-690720)

$3.49

$

In Stock, only 2 left!

0

19

Cub Cadet BS-805673

Spacer, Carburetor

$

$

Not available

20

Cub Cadet BS-808370

Carburetor Assembly
(Superseded to BS-846109)

$358.99

$

In Stock, only 1 left!

0

21

Cub Cadet BS-805559

Plug, Welch
(Superseded to BS-690727)

$4.49

$

In Stock, only 1 left!

0

22

Cub Cadet BS-806132

Valve, Throttle

$

$

Not available

23

Cub Cadet BS-808397

Shaft and Lever, Throttle

$38.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-808398

Shaft, Choke

$42.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-806128

Nozzle, Carburetor

$35.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-806131

Collar, Throttle

$5.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-805543

Collar, Choke

$

$

Not available

28

Cub Cadet BS-807664

Solenoid, Fuel
(Superseded to BS-692094)

$166.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-807723

Plug, Carburetor

$6.49

$

In Stock, only 2 left!

0

30

Cub Cadet BS-805544

Seal, Shaft

$

$

Not available

31

Cub Cadet BS-805862

Cap, Limiter
(Superseded to BS-691516)

$8.49

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-298049

Line, Fuel
(Superseded to 751-10349-13)

Note: (Cut to Suit)

$16.99

$

In Stock, Qty 7

0

33

Cub Cadet BS-493629

Filter, Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

34

Cub Cadet BS-805025

Screw, Hex

$

$

Not available

35

Cub Cadet BS-491922

Pump, Fuel
(Superseded to BS-808656)

$27.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-95162

Clamp, Fuel Line
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

37

Cub Cadet BS-805158

Screw, Hex (Exhaust Manifold Mtg)
(Superseded to BS-691902)

$3.49

$

In Stock, only 4 left!

0

38

Cub Cadet BS-280866

Insulation, Fuel Line

$

$

Not available

39

Cub Cadet BS-807685

Bracket, Fuel Pump
(Superseded to BS-691559)

$24.99

$

In Stock, only 2 left!

0

40

Cub Cadet BS-805317

Screw, Hex
(Superseded to BS-807084)

$3.49

$

In Stock, Qty 17

0

41

Cub Cadet BS-805024

Gasket, Exhaust
(Superseded to BS-691613)

$5.49

$

In Stock, Qty 20+

0

42

Cub Cadet BS-393815

Line, Vacuum

Note: (Cut to Length)

$11.99

$

Usually ships in 2-12 days

0
