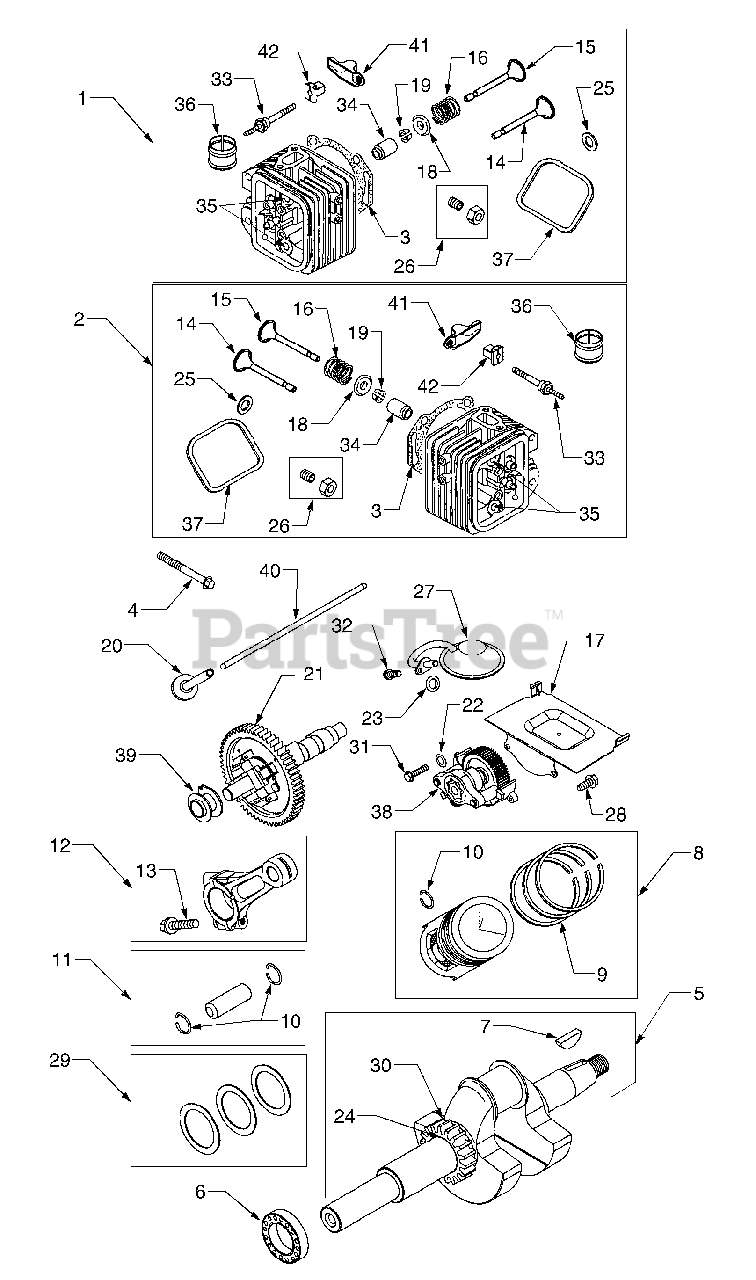

3185 (14A-665-100) - Cub Cadet Garden Tractor Crankshaft, Pistons And Heads Parts Diagram

Garden Tractor

Crankshaft, Pistons And Heads Parts Diagram

  • Title

1

Cub Cadet BS-808383

Head, Cylinder #1
(Superseded to BS-845486)

$

$

Not available

2

Cub Cadet BS-808384

Head, Cylinder #2
(Superseded to BS-845487)

$220.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-806086

Gasket, Cylinder Head
(Superseded to BS-845884)

$30.99

$

In Stock, only 2 left!

0

4

Cub Cadet BS-805097

Screw, Cylinder Head
(Superseded to BS-692059)

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet BS-808428

Crankshaft

$

$

Not available

6

Cub Cadet BS-805754

Bearing, Ball
(Superseded to BS-843827)

$36.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-806066

Key, Flywheel

$

$

Not available

8

Cub Cadet BS-808326

Piston Assembly (Standard)
(Superseded to BS-843792)

$104.99

$

In Stock, only 2 left!

0

Cub Cadet BS-808336

Piston Assembly, .010 O.S.

$110.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-808337

Piston Assembly, .020 O.S.

$

$

Not available

Cub Cadet BS-808338

Piston Assembly, .030 O.S.

$127.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-807889

Ring Set, Piston (Standard)
(Superseded to BS-843793)

$52.99

$

In Stock, Qty 5

0

Cub Cadet BS-807994

Ring Set, Piston, .010 O.S.

$40.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-807995

Ring Set, Piston, .020 O.S.

$

$

Not available

Cub Cadet BS-807996

Ring Set, Piston, .030 O.S.

$35.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-805099

Lock, Piston Pin

$

$

Not available

11

Cub Cadet BS-807886

Pin Assembly, Piston

$16.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-807900

Rod Assembly, Connecting
(Superseded to BS-807900S)

$

$

Not available

Cub Cadet BS-807809

Rod Assembly, .020 U.S.

$

$

Not available

13

Cub Cadet BS-805395

Screw, Connecting Rod
(Superseded to BS-690698)

$7.49

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-807681

Valve, Exhaust

$

$

Not available

15

Cub Cadet BS-807680

Valve, Intake

$26.99

$

In Stock, only 2 left!

0

16

Cub Cadet BS-805937

Spring, Valve
(Superseded to BS-692084)

$6.49

$

In Stock, only 2 left!

0

17

Cub Cadet BS-805654

Deflector, Oil

$

$

Not available

18

Cub Cadet BS-805092

Retainer, Valve Spring
(Superseded to BS-692058)

$5.49

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-807683

Retainer, Valve (2)
(Superseded to BS-844788)

$6.99

$

In Stock, only 2 left!

0

20

Cub Cadet BS-262679

Tappet, Valve
(Superseded to BS-690977)

$7.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-807542

Gear, Cam
(Superseded to BS-845649)

$184.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-805058

Seal, O-Ring
(Superseded to BS-690681)

$5.99

$

In Stock, Qty 7

0

23

Cub Cadet BS-805316

Seal, O-Ring
(Superseded to BS-690690)

$5.99

$

In Stock, only 1 left!

0

24

Cub Cadet BS-94196

Key, Timing

$

$

Not available

25

Cub Cadet BS-805420

Washer
(Superseded to BS-691766)

$6.49

$

In Stock, Qty 20+

0

26

Cub Cadet BS-807623

Screw, Valve Adjustment

$11.99

$

In Stock, only 1 left!

0

27

Cub Cadet BS-807598

Screen, Oil Pump

$

$

Not available

28

Cub Cadet BS-805406

Screw, Hex
(Superseded to BS-691982)

$3.99

$

In Stock, only 4 left!

0

29

Cub Cadet BS-807625

Washer Set

$19.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-805984

Gear, Timing

$

$

Not available

31

Cub Cadet BS-805057

Screw, Hex
(Superseded to BS-691492)

$3.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-805317

Screw, Hex
(Superseded to BS-807084)

$3.49

$

In Stock, Qty 17

0

33

Cub Cadet BS-806037

Stud, Rocker Arm
(Superseded to BS-809157)

$6.99

$

In Stock, Qty 18

0

34

Cub Cadet BS-805094

Seal, Guide Bushing
(Superseded to BS-691963)

$10.99

$

In Stock, only 3 left!

0

35

Cub Cadet BS-805084

Bushing, Guide
(Superseded to BS-692057)

$

$

Not available

36

Cub Cadet BS-805083

Liner, Port
(Superseded to BS-691493)

$12.99

$

In Stock, only 1 left!

0

37

Cub Cadet BS-806039

Gasket, Rocker Cover
(Superseded to BS-806039S)

$7.49

$

In Stock, Qty 20+

0

38

Cub Cadet BS-807644

Pump, Oil

$

$

Not available

39

Cub Cadet BS-805313

Spool, Governor
(Superseded to BS-690689)

$22.99

$

In Stock, only 1 left!

0

40

Cub Cadet BS-805352

Push Rod, Intake
(Superseded to BS-691836)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet BS-805617

Push Rod, Exhaust
(Superseded to BS-691758)

$11.99

$

In Stock, Qty 6

0

41

Cub Cadet BS-806036

Rocker Arm

$

$

Not available

42

Cub Cadet BS-806038

Pivot, Rocker Arm

$

$

Not available
