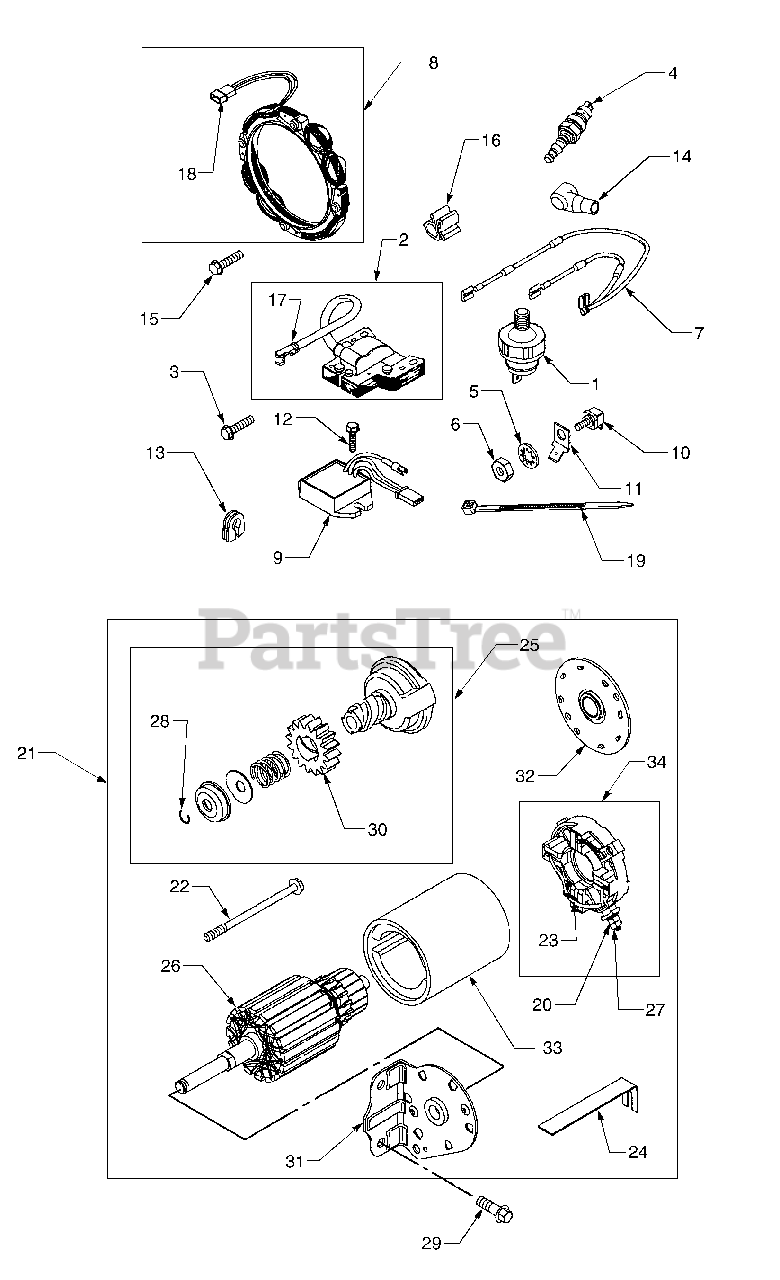

3185 (14A-665-100) - Cub Cadet Garden Tractor Electric Starting Motor Parts Diagram

Garden Tractor

Electric Starting Motor Parts Diagram

  • Title

1

Cub Cadet BS-491657

Switch, Oil Pressure
(Superseded to BS-491657S)

$31.99

$

In Stock, only 1 left!

0

2

Cub Cadet BS-492341

Armature, Magneto
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

3

Cub Cadet BS-805407

Screw, Hex
(Superseded to BS-692066)

$3.49

$

In Stock, Qty 11

0

4

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-92791

Washer, Lock
(Superseded to BS-691077)

$3.49

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-90576

Nut, Hex
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet BS-493792

Wire, Ground
(Superseded to BS-844547)

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-393295

Stator, Alternator
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 7

0

9

Cub Cadet BS-394890

Regulator, Alternator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 18

0

10

Cub Cadet BS-398525

Insulator
(Superseded to BS-691972)

$8.49

$

In Stock, Qty 6

0

11

Cub Cadet BS-93722

Terminal
(Superseded to BS-691084)

$6.49

$

In Stock, only 2 left!

0

12

Cub Cadet BS-805448

Screw, Hex
(Superseded to BS-692067)

$3.99

$

In Stock, Qty 11

0

13

Cub Cadet BS-805641

Grommet
(Superseded to BS-690744)

$7.49

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-805529

Boot, Spark Plug
(Superseded to BS-692076)

$5.49

$

In Stock, only 3 left!

0

15

Cub Cadet BS-806104

Screw, Hex

$

$

Not available

16

Cub Cadet BS-280470

Clip, Wire

$

$

Not available

17

Cub Cadet BS-493880

Terminal, Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet BS-393537

Diode and Connector Assembly

$

$

Not available

19

Cub Cadet BS-280275

Tie, Cable

$4.49

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-225137

Washer, Flat

$

$

Not available

21

Cub Cadet BS-499521

Motor, Starter
(Superseded to BS-795121)

$143.99

$

In Stock, Qty 18

0

22

Cub Cadet BS-95035

Screw, Hex

$

$

Not available

23

Cub Cadet BS-497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

24

Cub Cadet BS-80600

Strap, Starter

$

$

Currently unavailable

25

Cub Cadet BS-497606

Starter Drive Group
(Superseded to BS-696541)

$

$

Not available

26

Armature Assembly

Note: N/A; Serviced with 499521 Starter Motor Only

$

$

Not available

27

Cub Cadet BS-92278

Nut, Hex
(Superseded to 912-0121)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet BS-263080

Ring, Retaining
(Superseded to BS-691265)

$5.49

$

In Stock, Qty 7

0

29

Cub Cadet BS-805247

Screw, Hex

$

$

Not available

30

Cub Cadet BS-280104

Gear, Starter
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet BS-497626

Drive End Cap Assembly
(Superseded to BS-691283)

$83.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-497607

End Cap Assembly - Commutator 1

$

$

Not available

33

Housing Assembly

Note: N/A; Serviced with 499521 Starter Motor Only

$

$

Not available

34

Cub Cadet BS-497605

Retainer, Brush
(Superseded to BS-691293)

$29.99

$

In Stock, Qty 6

0
