31A-140-372 - Yard Machines Snow Thrower (2000) (Hechinger) Drive & Fuel Tank Parts Diagram

Snow Thrower

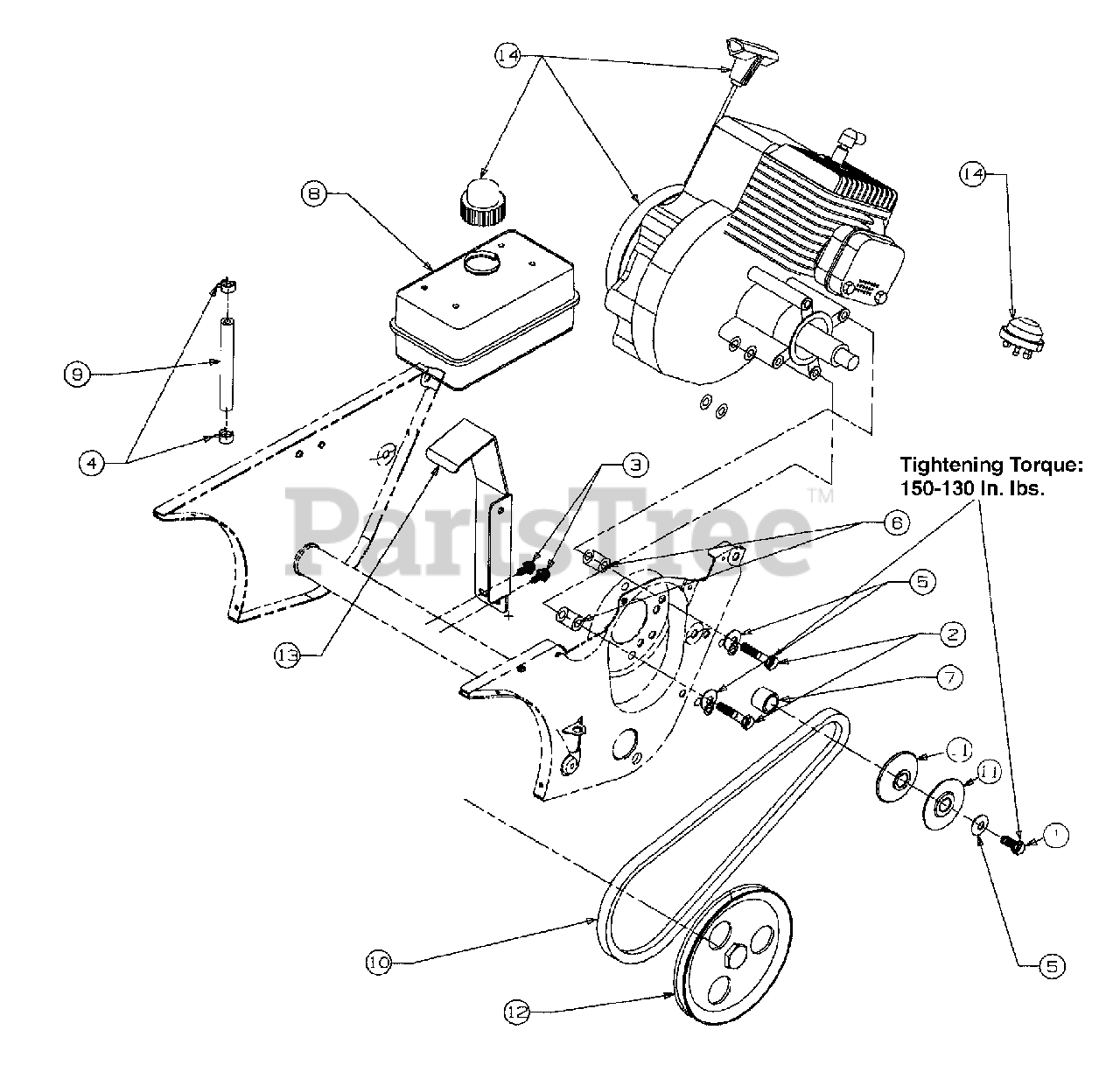

Drive & Fuel Tank Parts Diagram

  • Title
1

MTD 710-0157

Hex Cap Screw

$4.49

$

In Stock, Qty 8

0

2

MTD 710-0805

Hex Cap Screw
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0896

Washer Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

5

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

6

MTD 750-0589

Spacer
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

7

MTD 750-0716

Spacer
(Superseded to 750-0716A)

$

$

Not available

8

MTD 751-0352

Fuel Tank
(Superseded to TC-32660A)

$

$

Not available

9

MTD 751-0535-12

Hose, Fuel - 12"
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

10

MTD 754-0367

V-Belt
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

11

MTD 756-0416B

V-Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

12

MTD 756-0550

Pulley

$

$

Not available

13

MTD 784-5177

Engine Support Bracket

Variations

MTD 784-5177-0637

No Longer Available BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

14

Obtain from engine manufacturer

$

$

Not available

MTD OEM-390-697

Electric Start Kit

Note: (Optional); N/I

$

$

Currently unavailable
