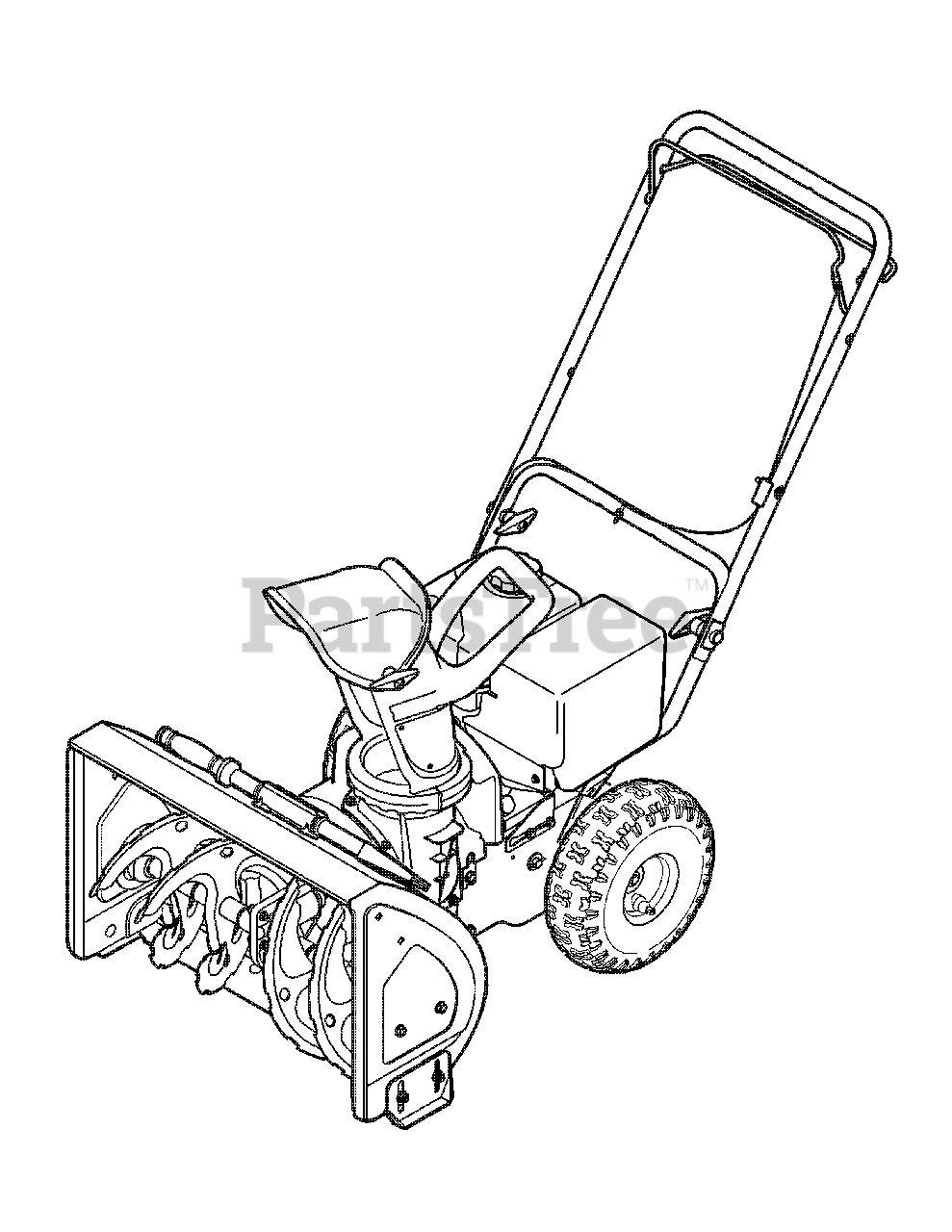

31A-32AD700 - Yard Machines Snow Thrower (2009) .Quick Reference Parts Diagram

Snow Thrower

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 951-10630

Key

$6.49

$

In Stock, Qty 18

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

Note: (Optional Equipment, if equipped)

$22.99

$

Usually ships in 3-6 days

0

MTD 931-2643

Snow Removal Tool

$18.99

$

In Stock, Qty 7

0

MTD 946-04256

Drive Cable

$54.99

$

In Stock, Qty 5

0

MTD 946-04236

Auger Cable

$35.99

$

In Stock, Qty 7

0

MTD 684-04113A-0637

Auger Assembly - LH - Black

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04113A-0638

Auger Assembly - LH - Red

$75.99

$

Usually ships in 3-6 days

0

MTD 684-04114A-0637

Auger Assembly - RH - Black

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04114A-0638

Auger Assembly - RH - Red

$75.99

$

Usually ships in 3-6 days

0

MTD 790-00117-0638

Shave Plate - Red
(Superseded to 790-00117-0637)

$28.99

$

In Stock, Qty 20+

0

MTD 790-00117-0709

Shave Plate - Green
(Superseded to 790-00117-0637)

$28.99

$

In Stock, Qty 20+

0

MTD 790-00117-0691

Shave Plate - Black
(Superseded to 790-00117-0637)

$28.99

$

In Stock, Qty 20+

0

MTD 731-04218B

Impeller Assembly

$76.99

$

In Stock, only 2 left!

0

MTD 784-5580-0637

Slide Shoe

$22.99

$

In Stock, Qty 20+

0

MTD 753-06206

Skid Shoe Kit, Standard Polymer

Note: (includes 2 shoes and hardware) (Optional Equipment)

$52.99

$

In Stock, Qty 9

0

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

MTD 954-05110

Auger Belt

$28.99

$

In Stock, Qty 20+

0

MTD 954-04013

Wheel Belt

$18.99

$

In Stock, Qty 16

0

MTD 934-04282B

Wheel

$54.99

$

In Stock, Qty 20+

0
