31AE295-401 - Yard-Man Snow Thrower (2002) General Assembly Parts Diagram

Snow Thrower

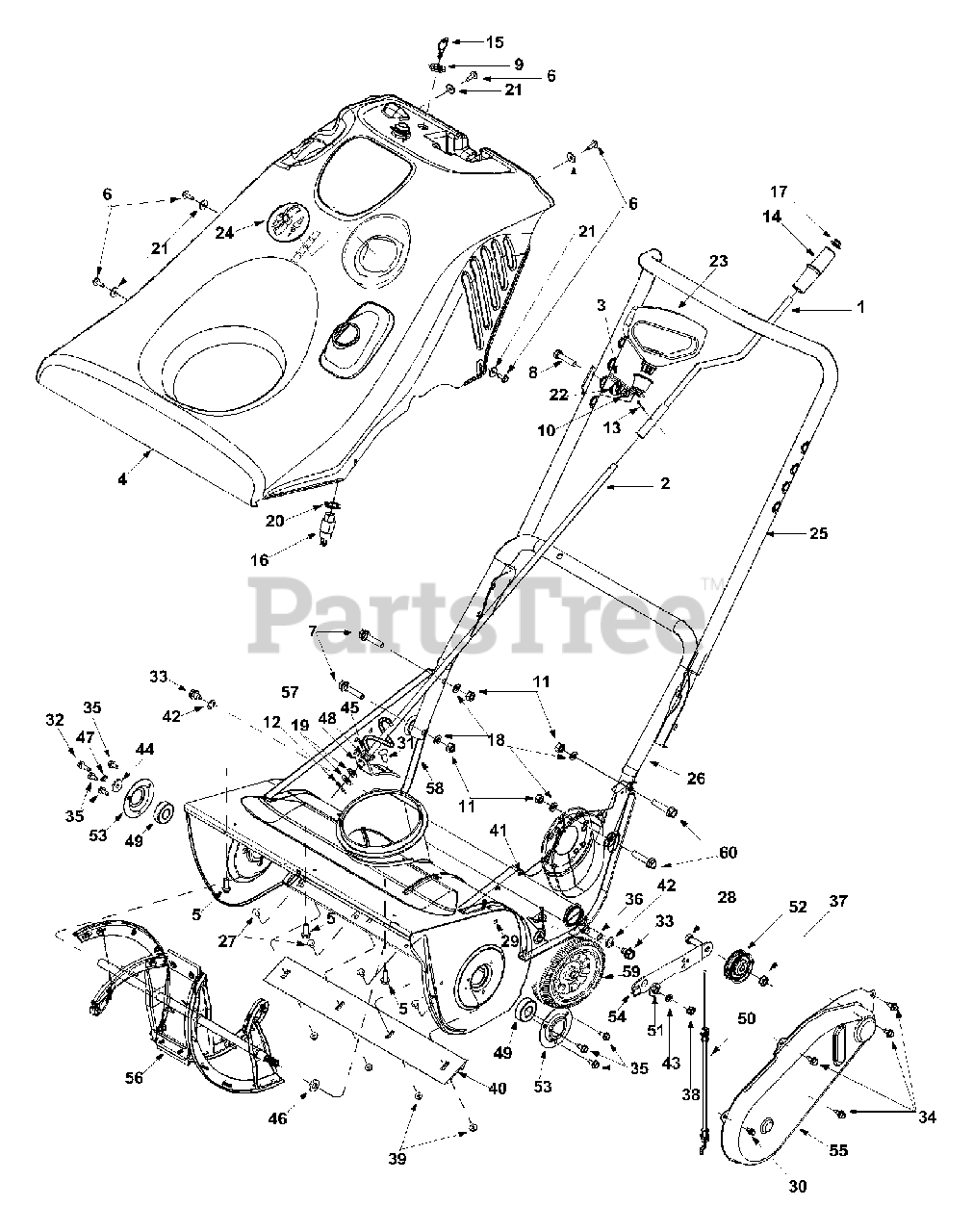

General Assembly Parts Diagram

  • Title

1

MTD 747-1311

Upper Chute Crank Assembly
(Superseded to 684-0174-0637)

Variations

MTD 747-1311-0637

CRANK-CHUTE UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 684-0177

Lower Chute Crank Assembly

$

$

Not available

3

MTD 684-0178

Bracket Assembly: Mitten Grip
(Superseded to 984-0178)

$

$

Not available

4

MTD 731-2570

Shroud: Yellow, 7 Hp. Electric

$

$

Not available

MTD 731-2571

Shroud: Yellow, 5 Hp. Electric
(Superseded to 684-0193)

$

$

Not available

MTD 731-2607

Shroud: Yellow, 5 Hp. Recoil

$

$

Not available

5

MTD 710-0895

TT Screw 1/4-15 x 0.75"

$6.49

$

In Stock, Qty 5

0

6

MTD 710-1003

B Screw #10-16 x 0.625"
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 10

0

7

MTD 710-1882

Hex Flange Screw

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-3083

Hex Bolt 5/16-18 x 1.375"

$4.49

$

Usually ships in 3-6 days

0

9

MTD 712-0252

Jam Nut

$5.99

$

Usually ships in 3-6 days

0

10

MTD 712-0429

Lock Nut

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

14

MTD 720-0201A

Knob: Chute Crank

$10.99

$

In Stock, only 4 left!

0

15

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

16

MTD 725-2018

Switch: Electric Start Key
(Superseded to 925-2018)

$

$

Not available

17

MTD 726-0100

Push Cap

$4.49

$

In Stock, only 3 left!

0

18

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 17

0

19

MTD 736-0185

Flat Washer

$3.99

$

In Stock, only 3 left!

0

20

MTD 736-0225

Internal Lock Washer

$4.49

$

In Stock, only 2 left!

0

21

MTD 736-0400

Flat Washer

$5.49

$

In Stock, Qty 14

0

22

MTD 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

23

MTD 7519636

Mitten Grip Handle
(Superseded to 7510009636)

$

$

Not available

24

MTD 684-0190

Spark Plug Access
(Superseded to 684-0189)

$

$

Not available

25

MTD 749-0711A

Upper Handle: Gull Wing

Variations

MTD 749-0711A-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

MTD 749-0711A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

26

MTD 749-0796B

Lower Handle

Variations

MTD 749-0796B-0637

Handle-Lower - POWDER BLACK (0637)

$

$

Not available

MTD 749-0796B-0638

No Longer Available HANDLE-LWR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

27

MTD 710-0167

Carriage Screw 1/4-20 x 0.50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

28

MTD 710-0191

Hex Bolt

$4.99

$

In Stock, Qty 8

0

29

MTD 710-0323

Machine Screw

$4.99

$

In Stock, only 2 left!

0

30

MTD 710-0352

B Screw 1/4-14 x 0.375"

$4.99

$

Usually ships in 3-6 days

0

31

MTD 710-0451

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-0642

TT Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 10

0

33

MTD 710-0773

TT Screw 3/8-16 x 0.5"

$7.49

$

In Stock, only 3 left!

0

34

MTD 710-0896

AB Screw 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-1005

B Screw 1/4-14 x 0.5"
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

36

MTD 711-0848A

Axle Tube
(Superseded to 753-05480)

$

$

Not available

37

MTD 712-0116

Jam Lock Nut

$4.99

$

In Stock, Qty 6

0

38

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

39

MTD 712-3027

Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 10

0

40

MTD 731-1033

Shave Plate

$47.99

$

In Stock, Qty 14

0

41

MTD 732-0357A

Extension Spring

$4.49

$

In Stock, only 3 left!

0

42

MTD 736-0108

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

43

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 17

0

44

MTD 736-0176

Flat Washer

$4.99

$

In Stock, Qty 6

0

45

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0326

Flat Washer

$4.49

$

In Stock, Qty 6

0

47

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

48

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

49

MTD 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

50

MTD 746-0910A

Clutch Cable
(Superseded to 946-0910A)

$29.99

$

In Stock, Qty 16

0

51

MTD 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

52

MTD 756-0313

Flat Idler

$26.99

$

In Stock, Qty 6

0

53

MTD 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

MTD 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 784-5175B

Bracket: Brake Idler
(Superseded to 753-05156)

Variations

MTD 784-5175B-0637

KIT:IDLER SINGLE S - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

MTD 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

56

MTD 784-5485

Auger Assembly
(Superseded to 984-04027A)

Variations

MTD 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$196.99

$

In Stock, Qty 11

0

MTD 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$196.99

$

In Stock, Qty 11

0

MTD 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$196.99

$

In Stock, Qty 11

0

$196.99

$

In Stock, Qty 11

0

57

MTD 784-5720

Chute Crank Bracket
(Superseded to 784-5720-0637)

Variations

MTD 784-5720-0637

BRACKET CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

58

MTD 684-0196

Auger Housing Assembly

Variations

MTD 684-0196-0650

No Longer Available HSG ASM-AU - RED METALLIC (0650)

$

$

Not available

MTD 684-0196-0665

HOUSING ASM-AUGER - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0196-0638

No Longer Available HSG ASM-AU - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0196-0709

No Longer Available HOUSING ASM-AUGER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-0196-0716

HOUSING ASM-AUGER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

59

MTD 734-1799

Wheel Assembly
(Superseded to 734-04062A)

$23.99

$

Usually ships in 3-6 days

0

60

MTD 710-1090

Hex Flange Screw

$3.99

$

Usually ships in 3-6 days

0
