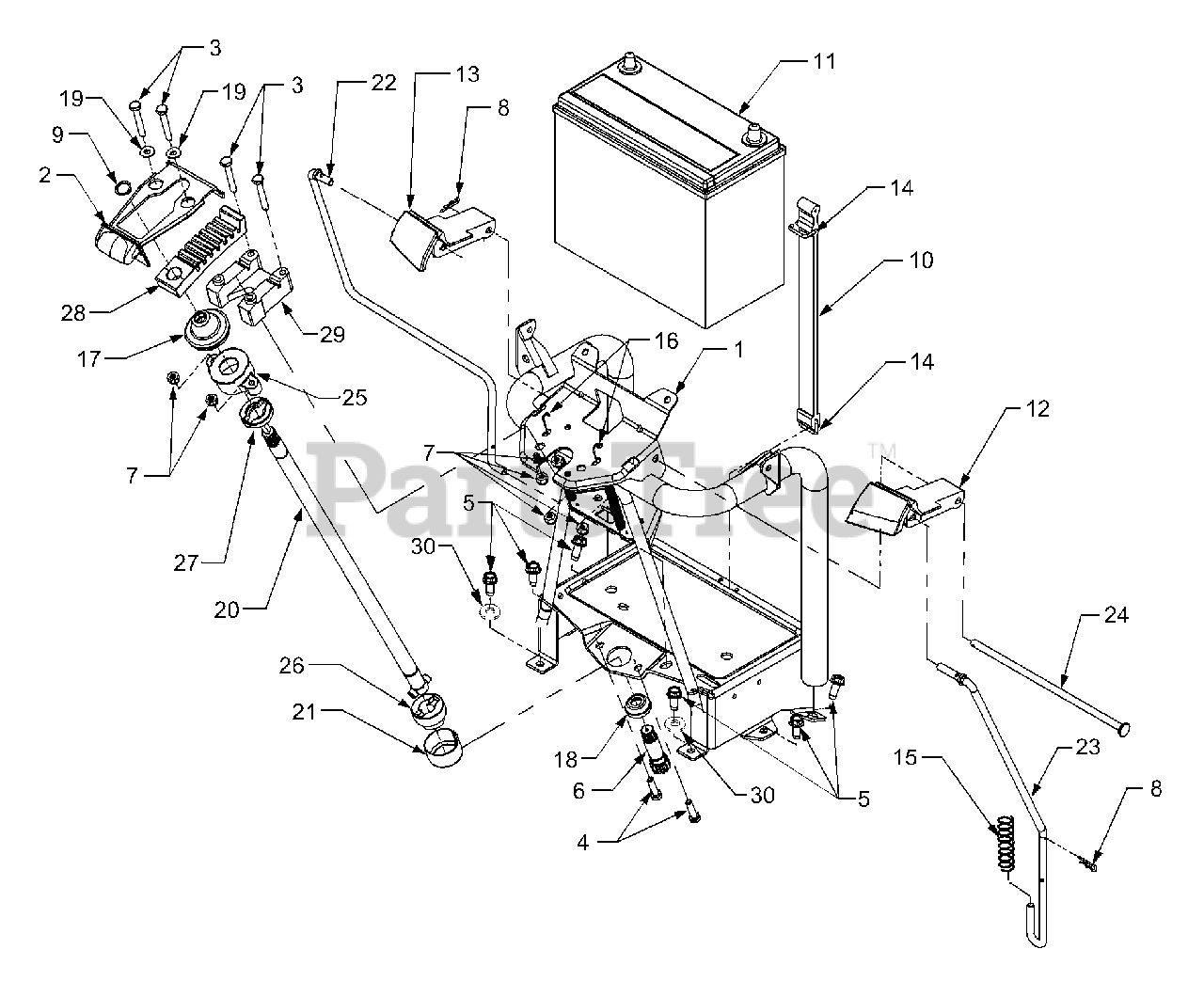

3208 (14A-662-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Pedestal And Connections Parts Diagram

Garden Tractor

Pedestal And Connections Parts Diagram

  • Title

1

Cub Cadet 603-0386A-0637

Pedestal Assembly

$

$

Not available

2

Cub Cadet 603-0587

Handle, Tilt

$

$

Not available

Cub Cadet 777I20861

Graphic, Tilt Steering Handle

$

$

Not available

3

Cub Cadet 710-0136

Screw, Hex Cap 1/4-20 x 1.75 GR5

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0597

Screw, Hex Cap 1/4-20 x 1.0 GR5

$3.99

$

In Stock, Qty 19

0

5

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 711-1180

Shaft, Lower Steering

$

$

Not available

7

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 716-0115

Ring, Retaining, .56 Dia Shaft
(Superseded to 916-0115)

$

$

Not available

10

Cub Cadet 723-0467

Strap, Battery

Note: (Includes Ref No. 14)

$

$

Not available

11

Cub Cadet 725-3255

Battery
(Superseded to 925-3255)

$

$

Not available

12

Cub Cadet 731-3225

Lever, Park Brake

$21.99

$

In Stock, only 3 left!

0

13

Cub Cadet 731-3226

Lever, Cruise

$30.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 732-0696

Hook, Wire Rectangular

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-0870

Spring, Compression, .676 x 2.57
(Superseded to 732-0870A)

$

$

Not available

16

Cub Cadet 732-0932

Spring, Extension

$13.99

$

In Stock, Qty 13

0

17

Cub Cadet 735-0258

Boot, Tilt Wheel Coupling

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 735-0269

Boot, Shaft Cover

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-3020

Washer, Flat, .271 x .63 x .065

$6.49

$

In Stock, Qty 9

0

20

Cub Cadet 738-3164

Shaft, Upper Steering

$

$

Not available

21

Cub Cadet 741-3085

Bearing, Sleeve, 1.44 x 1.5 x .812

$8.99

$

In Stock, only 1 left!

0

22

Cub Cadet 747-3327

Rod, Cruise Control

$

$

Not available

23

Cub Cadet 747-3328

Rod, Parking Brake

$

$

Not available

24

Cub Cadet 747-3354

Rod, Cruise/Brake Pivot

$

$

Not available

25

Cub Cadet 748-3067

Housing, Tilt Wheel Coupling

$38.99

$

In Stock, only 3 left!

0

26

Cub Cadet 748-3068

Coupling Half, Bottom

$22.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 748-3069

Coupling Half, Top

$

$

Not available

28

Cub Cadet 748-3083

Index, Tilt Steering

$

$

Not available

29

Cub Cadet 748-3084A

Block, Tilt Steering

$

$

Not available

30

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.49

$

Usually ships in 3-6 days

0
