3208 (14A-662-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Seat Assembly Parts Diagram

Garden Tractor

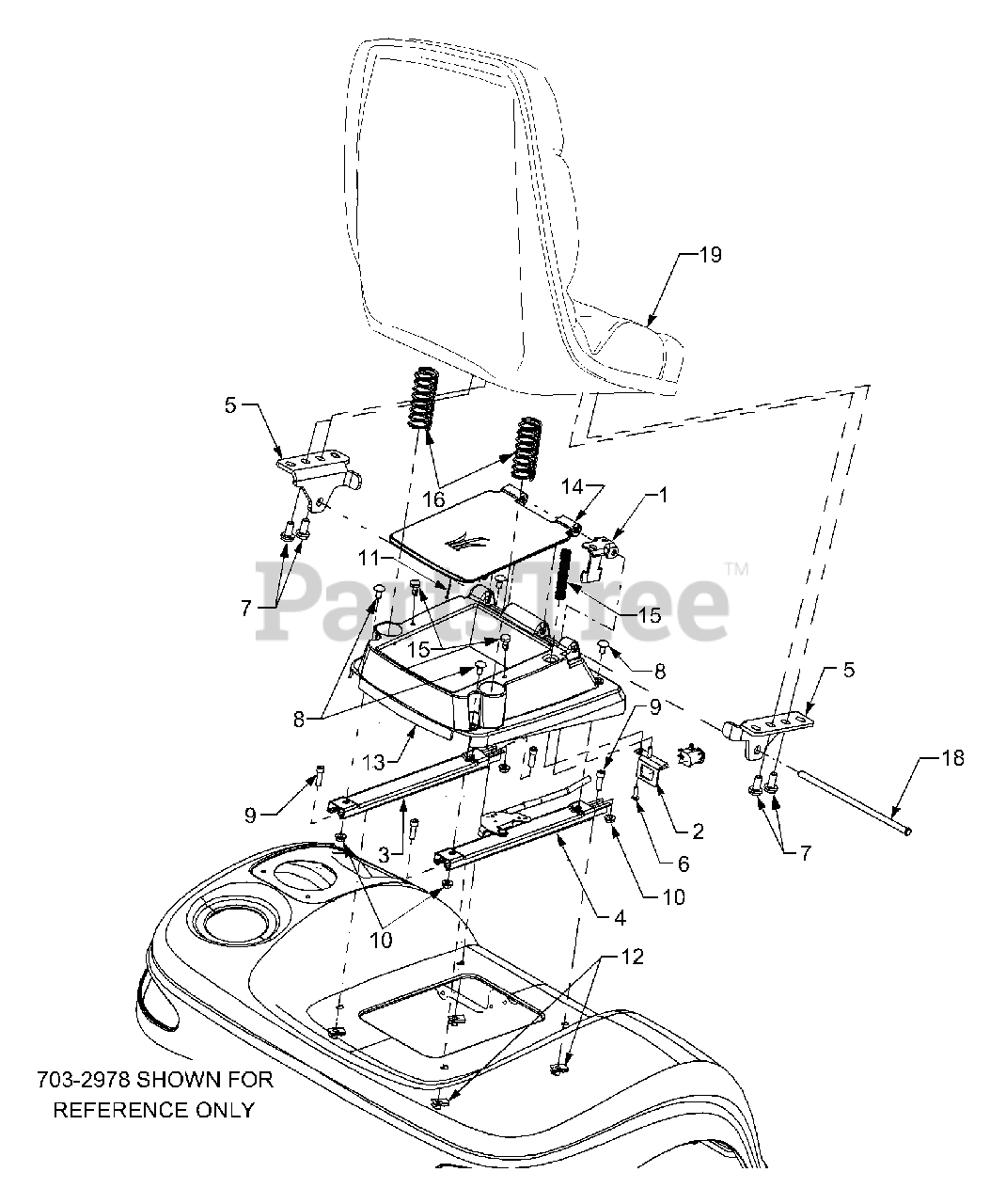

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 703-3166A-0637

Bracket, Seat Switch

$27.99

$

In Stock, only 2 left!

0

2

Cub Cadet 703-3173-0637

Bracket, Switch Mounting

$

$

Not available

3

Cub Cadet 703-3208

Track, Seat, w/o Latch

$68.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-3431

Track, Seat, w/Latch

$

$

Not available

5

Cub Cadet 703-3888

Bracket, Seat
(Superseded to 703-3888-0637)

Variations

Cub Cadet 703-3888-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 710-0748

Screw, Pan Torx Hd., #12-14 x .5

$

$

Not available

7

Cub Cadet 710-0759

Screw, Hex Wash. Hd 5/16-18 x .625

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1636

Carriage Bolt, 5/16-18 x .62

$

$

Not available

9

Cub Cadet 710-1669

Screw, Pan Torx Hd 5/16-18 x 1.0

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0507

Pin, Cotter, 3/32 x .75

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 726-0211

Speed Nut, U-Type, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-3240A

Base, Seat
(Superseded to 731-3240B)

$84.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-3244

Lid, Tlbx

$31.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-1001

Spring, Compression

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-1163

Spring, Compression

$

$

Not available

?17

Cub Cadet 735-0271

Bumper
(Superseded to 735-0271A)

$8.99

$

In Stock, Qty 20+

0

18

Cub Cadet 747-3357A

Rod, Seat Pivot

$

$

Not available

19

757-3015

Seat, High Back

$

$

Not available

Cub Cadet 777D04541

Graphic, Reflector

$

$

Not available

Cub Cadet 777D01782

Graphic, USA

$

$

Not available
