3208 (14A-662-100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Transmission - Differential Parts Diagram

Garden Tractor

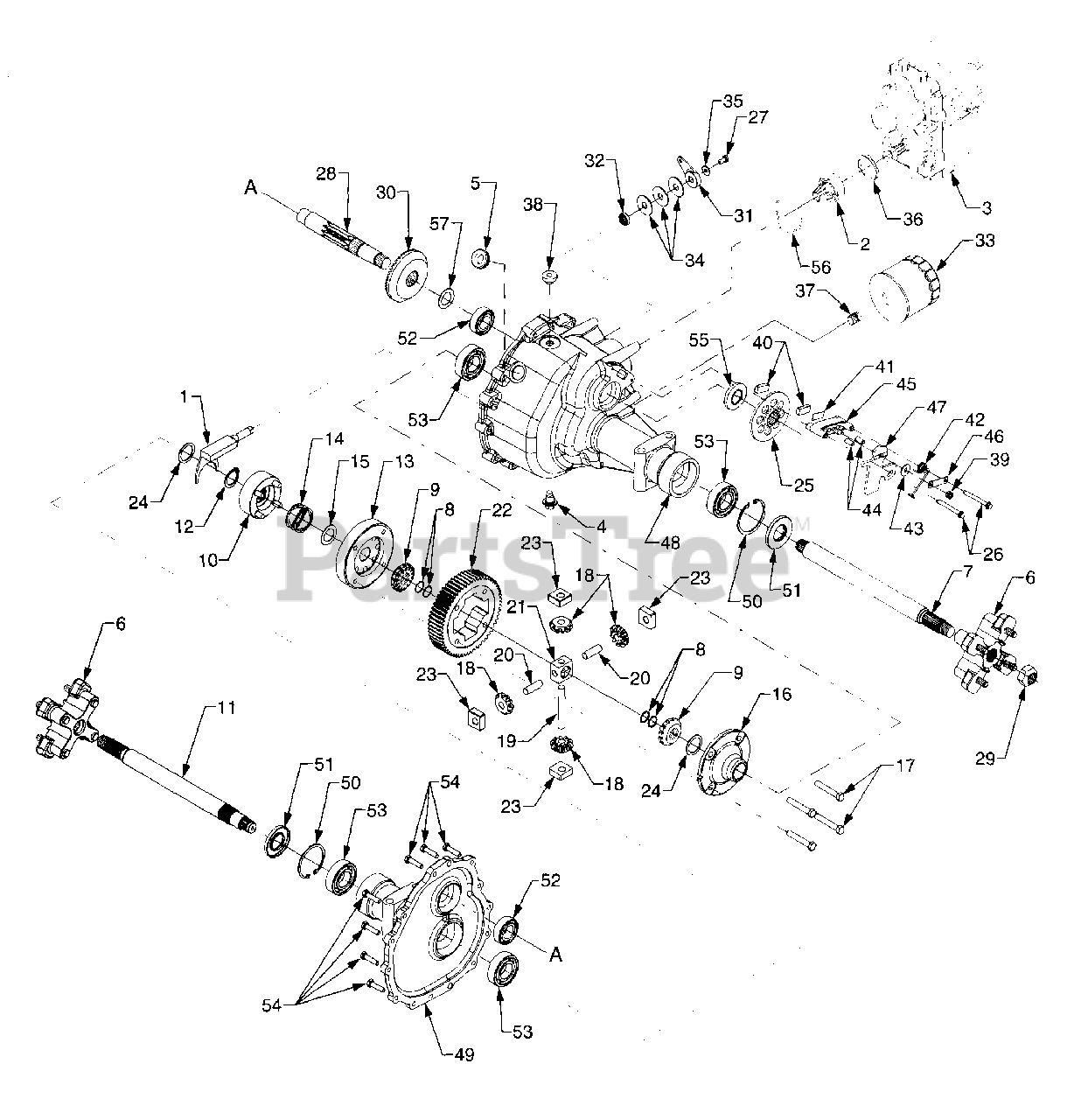

Transmission - Differential Parts Diagram

  • Title

Cub Cadet 618-3235

Transmission Assembly Complete
(Superseded to 918-3235)

Note: DOES NOT include Ref. Nos. 2, 3, 6, 29, 33, 36, 37 and 56.

$

$

Not available

1

Cub Cadet 611-3024

Shaft, Differential Actuator

$

$

Not available

2

Cub Cadet 617-3001

Gear Assembly, Pinion 13T

$268.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-3037

Bearing, Ball
(Superseded to 941-3037)

$38.99

$

In Stock, Qty 20+

0

3

Cub Cadet 618-3214

Hydrostatic Transmission Assy.
(Superseded to 918-3214)

Note: For components see separate parts beakdown.

$2058.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-1633

Plug, Drain, M14 x 1.5 x .827

$13.99

$

In Stock, only 2 left!

0

5

Cub Cadet 735-0277A

Grommet, Rubber

$9.99

$

In Stock, only 2 left!

0

6

Cub Cadet 618-3210A

Hub Assembly, Wheel

$134.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 711-1308

Axle Shaft, 15.08 Long - RH
(Superseded to 911-1308)

$186.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 716-0172

Retaining Ring
(Superseded to 916-0172)

$7.99

$

In Stock, Qty 5

0

9

Cub Cadet 717-1119

Gear, Spur, 14T

$41.99

$

In Stock, only 3 left!

0

10

Cub Cadet 618-3155A

Collar Assembly, Diff. Lock

$232.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-1309

Axle Shaft, 15.08 Long - LH

$217.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 716-3018

Retaining Ring

$6.49

$

In Stock, only 2 left!

0

13

Cub Cadet 718-3099B

Housing, Diff. Lock

$274.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 732-0856

Spring, Cpmpression

$29.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0615

Washer, Thrust, 1.007 x 1.542 x .03

$8.49

$

In Stock, only 3 left!

0

16

Cub Cadet 619-3086

Housing, Diff. Cover

$72.99

$

In Stock, only 3 left!

0

17

Cub Cadet 710-1254

Hex Cap Screw, 3/8-24 x 2.25 GR8

$7.49

$

In Stock, Qty 9

0

18

Cub Cadet 717-1120

Gear, Differential 10T

$29.99

$

In Stock, only 4 left!

0

19

Cub Cadet 717-1173

Shaft, Cross, .5 x 3.485

$36.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 717-1178

Shaft, Cross, Special

$26.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 717-1180

Differential Pinion Block

$31.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 717-3466

Gear, Spur 60T

$260.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 718-3101

Block, Thrust Miter

$12.99

$

In Stock, only 2 left!

0

24

Cub Cadet 736-0558

Washer, Flat, 1.187 x 1.56 x .062

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet 761-0215

Disc, Brake

$19.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-1206

Screw, Hex Wash. Hd. Tapp 1/4-20 x 2.375

$6.99

$

In Stock, Qty 11

0

27

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 711-1385A

Shaft, Output 9T

$168.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0682

Nut, Lock, 7/8-14

$12.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 717-3449

Gear, Bevel 54T

$397.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 718-3089

Arm, Diff. Lock Actuator

$

$

Not available

32

Cub Cadet 721-0393

Seal, Oil

$11.99

$

In Stock, only 2 left!

0

33

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0208

Washer, Flat, .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

35

Cub Cadet 736-0270

Washer, Belleville, .265 x .75 x .062

$3.99

$

In Stock, Qty 13

0

36

Cub Cadet 736-0619

Washer, Spring

$17.99

$

In Stock, only 1 left!

0

37

Cub Cadet 737-3022

Fitting, Filter Nipple
(Superseded to 937-3022)

$14.99

$

In Stock, only 1 left!

0

38

Cub Cadet 735-0279

Grommet

$6.99

$

In Stock, only 1 left!

0

39

Cub Cadet 712-0273

Nut, Hex Insert Lock, 5/16-24
(Superseded to 912-0273)

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 717-0678

Pad, Brake
(Superseded to 917-0678)

$6.99

$

In Stock, Qty 20+

0

41

Cub Cadet 717-0682

Plate, Puck
(Superseded to 917-0682)

$9.49

$

In Stock, Qty 7

0

42

Cub Cadet 732-0925

Spring, Torsion

$8.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 736-0371

Washer, Flat, .343 x .88 x .062

$4.49

$

In Stock, Qty 7

0

44

Cub Cadet 741-0343

Pin, Brake Actuator

$9.49

$

In Stock, Qty 7

0

45

Cub Cadet 761-0207A

Yoke, Brake

$37.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 761-0208

Bracket, Brake Anti-Rotation

$6.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 761-3074

Arm, Brake Actuator

$23.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 619-3066

Housing, RH
(Superseded to 919-3066A)

$907.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 619-3067

Housing LH

$

$

Not available

50

Cub Cadet 716-0180

Retaining Ring

$11.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 721-3020A

Seal, Oil
(Superseded to 921-3020A)

$11.99

$

In Stock, Qty 20+

0

52

Cub Cadet 741-3114

Bearing, Ball

$24.99

$

In Stock, only 4 left!

0

53

Cub Cadet 741-3033A

Bearing, Ball
(Superseded to 941-3033A)

$50.99

$

In Stock, Qty 9

0

54

Cub Cadet 710-0573

Screw, Hex Cap Locking 5/16-18 x 1.25 GR5

$5.99

$

In Stock, Qty 20+

0

55

Cub Cadet 721-0523

Seal, Oil 1.0 ID

$14.99

$

In Stock, Qty 10

0

56

Cub Cadet 721-0519

Seal, Gland O-Ring

$32.99

$

In Stock, only 2 left!

0

57

Cub Cadet 736-0615

Washer, Flat, 1.0 x 1.56 x .030

$8.49

$

In Stock, only 3 left!

0

Cub Cadet 759-3958

Sealant, Loctite Black, 5.3 oz. Tube

$

$

Not available

Cub Cadet 737-3120

Drive System Fluid Plus - Quart
(Superseded to 490-000-C051)

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 737-3121

Drive System Fluid Plus - Gallon

$77.99

$

In Stock, Qty 12

0

$

$
