325 HS 75 X - Husqvarna Hedge Trimmer (SN: 20030100001 - 20063600000) CARBURETOR & AIR FILTER Parts Diagram

Hedge Trimmer

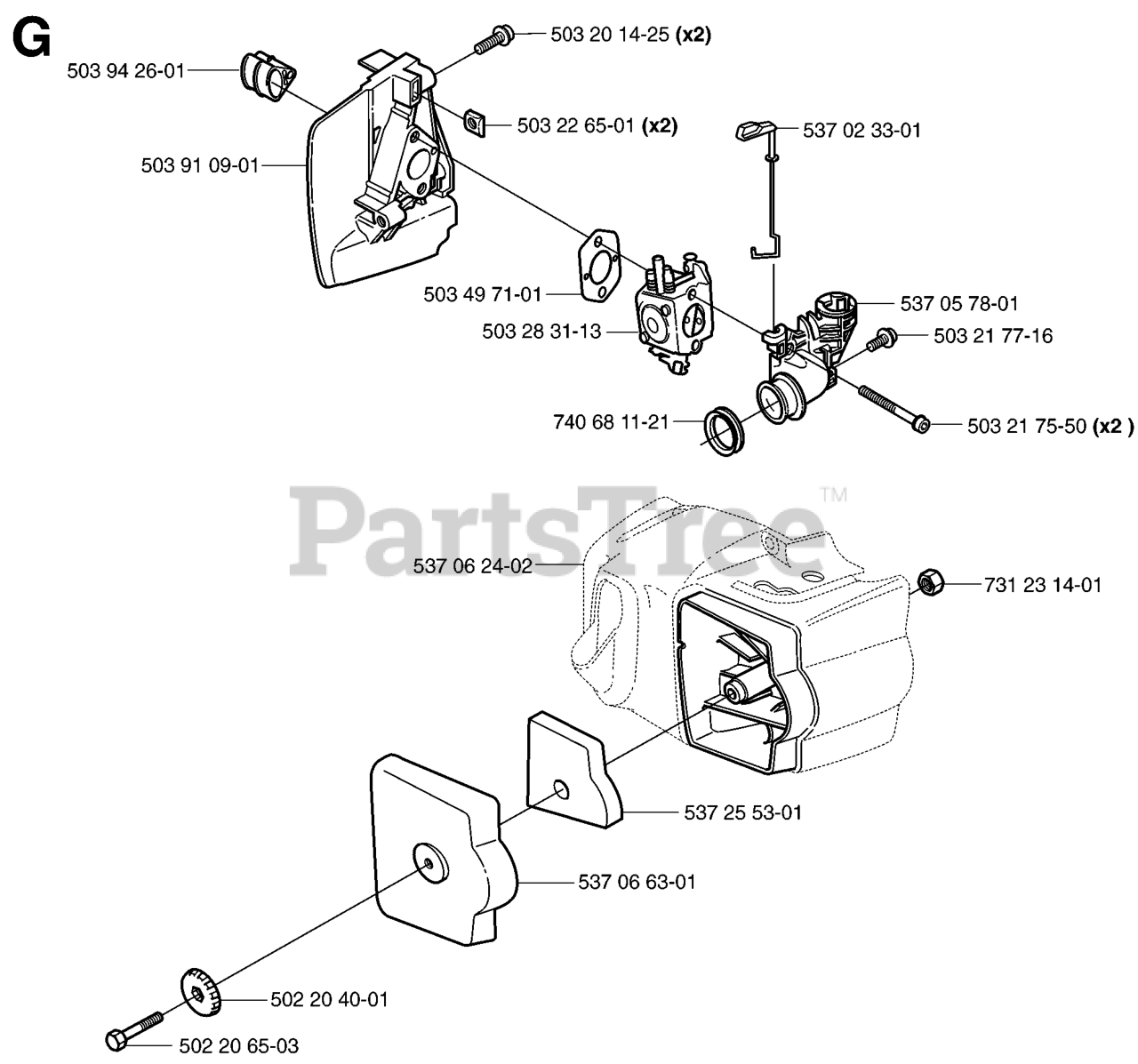

CARBURETOR & AIR FILTER Parts Diagram

  • Title

503 20 14-25

Husqvarna 503201425

SCREW
(Superseded to 503200325)

$7.49

$

In Stock, only 1 left!

0

537 06 24-02

Husqvarna 537062402

CYLINDER COVER

$

$

Not available

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

503 22 65-01

Husqvarna 503226501

SQUARE NUT M5
(Superseded to 503226504)

$6.49

$

In Stock, Qty 20+

0

502 20 40-01

Husqvarna 502204001

KNOB

$6.49

$

In Stock, Qty 20+

0

502 20 65-03

Husqvarna 502206503

SCREW

$3.99

$

In Stock, Qty 20+

0

503 49 71-01

Husqvarna 503497101

GASKET

$8.99

$

In Stock, Qty 20+

0

537 06 63-01

Husqvarna 537066301

AIR FILTER COVER
(Superseded to 537066302)

$12.99

$

In Stock, only 4 left!

0

503 21 77-16

Husqvarna 503217716

SCREW

$6.49

$

In Stock, Qty 9

0

740 68 11-21

Husqvarna 740681121

SEALING

$7.99

$

In Stock, only 4 left!

0

503 28 31-13

Husqvarna 503283113

CARBURETOR

$113.99

$

In Stock, Qty 5

0

503 94 26-01

Husqvarna 503942601

PIPE

$17.99

$

In Stock, only 3 left!

0

503 21 75-50

Husqvarna 503217550

SCREW

$6.49

$

In Stock, only 2 left!

0

537 02 33-01

Husqvarna 537023301

CHOKE CONTROL

$

$

Not available

537 25 53-01

Husqvarna 537255301

AIR FILTER

$9.49

$

In Stock, only 3 left!

0

503 91 09-01

Husqvarna 503910901

PARTITION

$17.99

$

Usually ships in 3-10 days

0

537 05 78-01

Husqvarna 537057801

PIPE

$11.99

$

In Stock, only 1 left!

0
