326 C - Husqvarna String Trimmer (SN: 20061400001 & Above) CARBURETOR & AIR FILTER Parts Diagram

String Trimmer

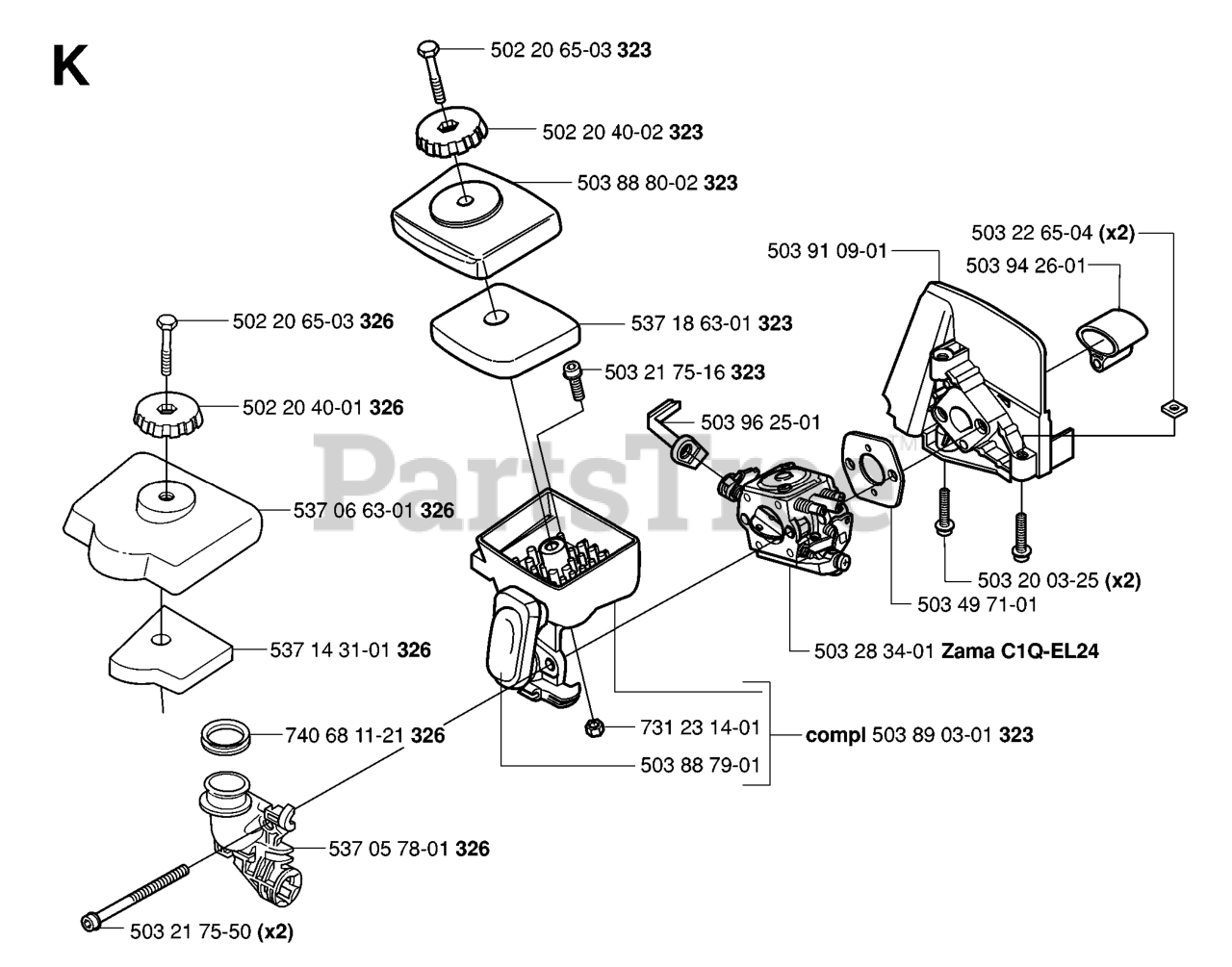

CARBURETOR & AIR FILTER Parts Diagram

  • Title

502 20 65-03

Husqvarna 502206503

SCREW

Note: 323

$3.99

$

In Stock, Qty 16

0

740 68 11-21

Husqvarna 740681121

SEALING

Note: 326

$9.99

$

In Stock, only 1 left!

0

503 28 34-01

Husqvarna 503283401

CARBURETOR
(Superseded to 588171156)

Note: ZAMA C1Q-EL24

$45.99

$

In Stock, Qty 18

0

537 18 63-01

Husqvarna 537186301

AIR FILTER (READY-OILED)

Note: 323

$7.49

$

In Stock, Qty 7

0

503 91 09-01

Husqvarna 503910901

PARTITION

$14.99

$

In Stock, only 1 left!

0

502 20 40-02

Husqvarna 502204002

CAP
(Superseded to 502204001)

Note: 323

$6.49

$

In Stock, Qty 13

0

502 20 40-01

Husqvarna 502204001

KNOB

Note: 326

$6.49

$

In Stock, Qty 13

0

502 20 65-03

Husqvarna 502206503

SCREW

Note: 326

$3.99

$

In Stock, Qty 16

0

537 06 63-01

Husqvarna 537066301

AIR FILTER COVER
(Superseded to 537066302)

Note: 326

$12.99

$

In Stock, only 1 left!

0

503 89 03-01

Husqvarna 503890301

FILTER HOLDER

Note: 323

$17.99

$

In Stock, only 1 left!

0

503 22 65-04

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 6

0

503 88 80-02

Husqvarna 503888002

AIR FILTER COVER

Note: 323

$

$

Not available

537 05 78-01

Husqvarna 537057801

PIPE

Note: 326

$7.99

$

In Stock, only 1 left!

0

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, only 4 left!

0

503 20 03-25

Husqvarna 503200325

SCREW

$7.49

$

In Stock, only 1 left!

0

503 94 26-01

Husqvarna 503942601

PIPE

$11.99

$

In Stock, only 2 left!

0

537 14 31-01

Husqvarna 537143101

AIR FILTER

Note: 326

$7.49

$

In Stock, Qty 20+

0

503 21 75-50

Husqvarna 503217550

SCREW

$6.49

$

In Stock, only 4 left!

0

503 21 75-16

Husqvarna 503217516

SCREW

Note: 323

$4.99

$

In Stock, only 4 left!

0

503 49 71-01

Husqvarna 503497101

GASKET

$8.99

$

In Stock, Qty 18

0

503 88 79-01

Husqvarna 503887901

CAP FILTER HOLDER

$5.99

$

In Stock, Qty 10

0

503 96 25-01

Husqvarna 503962501

CHOKE CONTROL

$9.99

$

In Stock, Qty 20+

0
