327 PT5S - Husqvarna Pole Saw (SN: 20112300001 - 20120100000) SAW HEAD Parts Diagram

Pole Saw

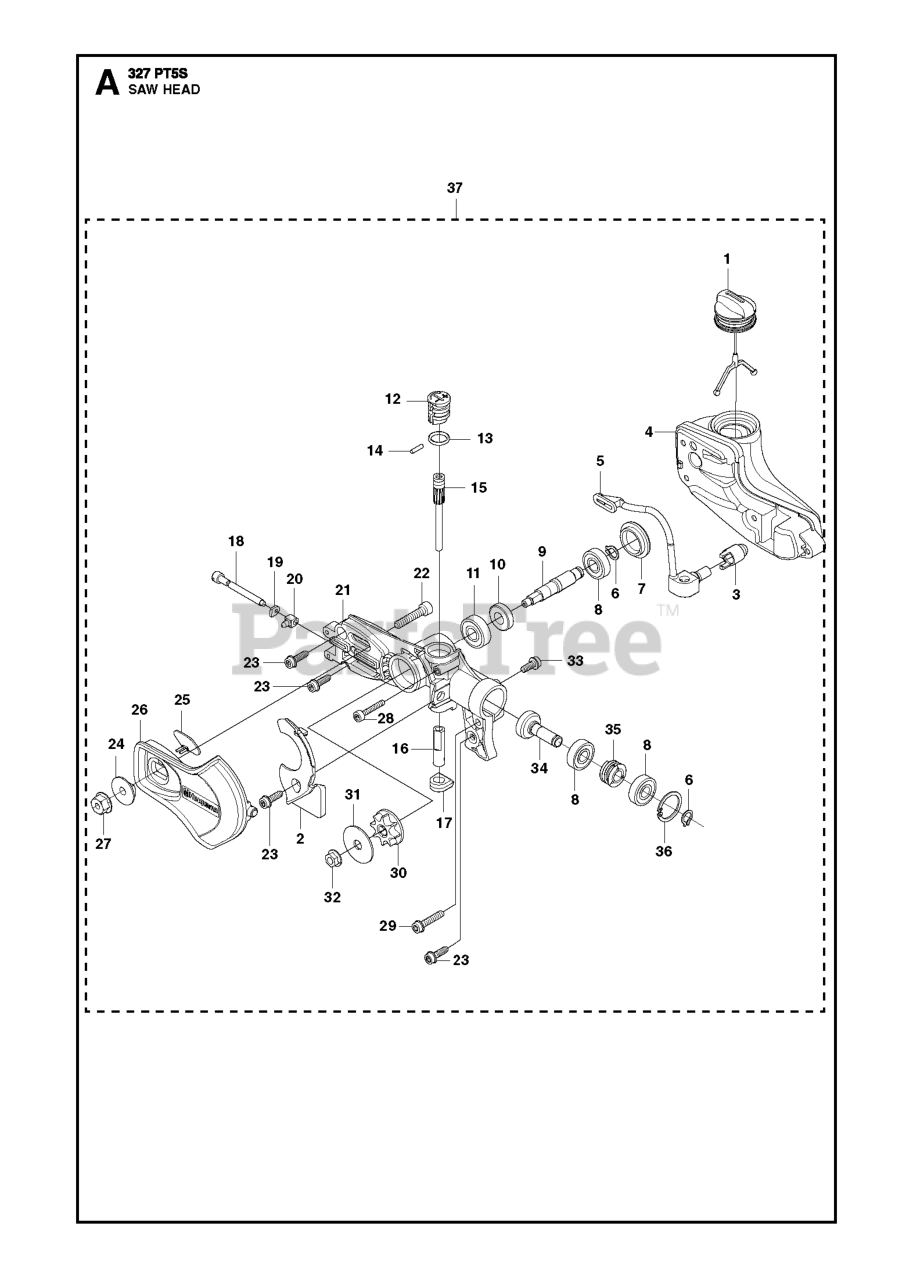

SAW HEAD Parts Diagram

  • Title

37

Husqvarna 575784301

POLE SAW HEAD
(Superseded to 575784310)

$193.99

$

In Stock, only 3 left!

0

19

Husqvarna 501452702

NUT

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 525481401

COVER

$9.49

$

In Stock, Qty 7

0

36

Husqvarna 735312510

RETAINING RING

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 738210004

BALL BEARING

$62.99

$

In Stock, only 1 left!

0

13

Husqvarna 740431014

O-RING

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 501819201

SCREW

$6.49

$

In Stock, Qty 11

0

29

Husqvarna 525755104

SCREW

$6.49

$

In Stock, only 2 left!

0

5

Husqvarna 525490601

OIL HOSE

$8.99

$

In Stock, only 1 left!

0

4

Husqvarna 577667001

OIL TANK

$37.99

$

In Stock, only 3 left!

0

30

Husqvarna 574865001

SPUR SPROCKET

$12.99

$

In Stock, only 2 left!

0

7

Husqvarna 574829801

COVER

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 573925801

SCREW

$6.49

$

In Stock, Qty 6

0

32

Husqvarna 731711651

FLANGE NUT

$7.49

$

In Stock, Qty 5

0

27

Husqvarna 503220007

HEXAGON NUT FLANGED

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 503240911

NEEDLE ROLLER

$4.99

$

In Stock, only 3 left!

0

2

Husqvarna 525613101

COVER

$6.99

$

In Stock, only 1 left!

0

25

Husqvarna 574404701

RUBBER

$6.99

$

In Stock, Qty 5

0

34

Husqvarna 575355501

PINION

$34.99

$

In Stock, only 1 left!

0

31

Husqvarna 576740001

WASHER
(Superseded to 585841901)

$11.99

$

In Stock, only 2 left!

0

20

Husqvarna 501454101

PAWL

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 537154801

PUMP CYLINDER

$10.99

$

In Stock, Qty 20+

0

10

Husqvarna 575355601

GEAR WHEEL

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 735311100

RETAINING RING

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna 576831001

SCREW IHSCM

$7.49

$

In Stock, Qty 14

0

17

Husqvarna 576395901

FASTENER

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 505415201

RP TANK CAP ASSY
(Superseded to 577878603)

$13.99

$

In Stock, Qty 7

0

24

Husqvarna 525490701

BUSHING

$17.99

$

In Stock, Qty 5

0

33

Husqvarna 525755105

SCREW
(Superseded to 575532001)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 525490401

SHAFT

$66.99

$

Usually ships in 3-10 days

0

8

Husqvarna 738219904

BALL BEARING

$56.99

$

Usually ships in 3-10 days

0

35

Husqvarna 525489701

WORM GEAR

$9.49

$

In Stock, only 1 left!

0

12

Husqvarna 525481601

KNOB

$6.99

$

In Stock, only 2 left!

0

3

Husqvarna 510044301

OIL SCREEN

$6.49

$

In Stock, Qty 10

0

15

Husqvarna 503932101

%PUMP PISTON
(Superseded to 540057901)

$16.99

$

In Stock, Qty 20+

0

21

Husqvarna 523853701

GEAR HOUSING
(Superseded to 523853702)

$40.99

$

In Stock, only 3 left!

0

28

Husqvarna 525760905

SCREW ITXSCM

$4.99

$

Usually ships in 3-10 days

0
