330 (190-330-100) - Cub Cadet Mower Rear Bagger Rear Bagger Parts Diagram

Mower Rear Bagger

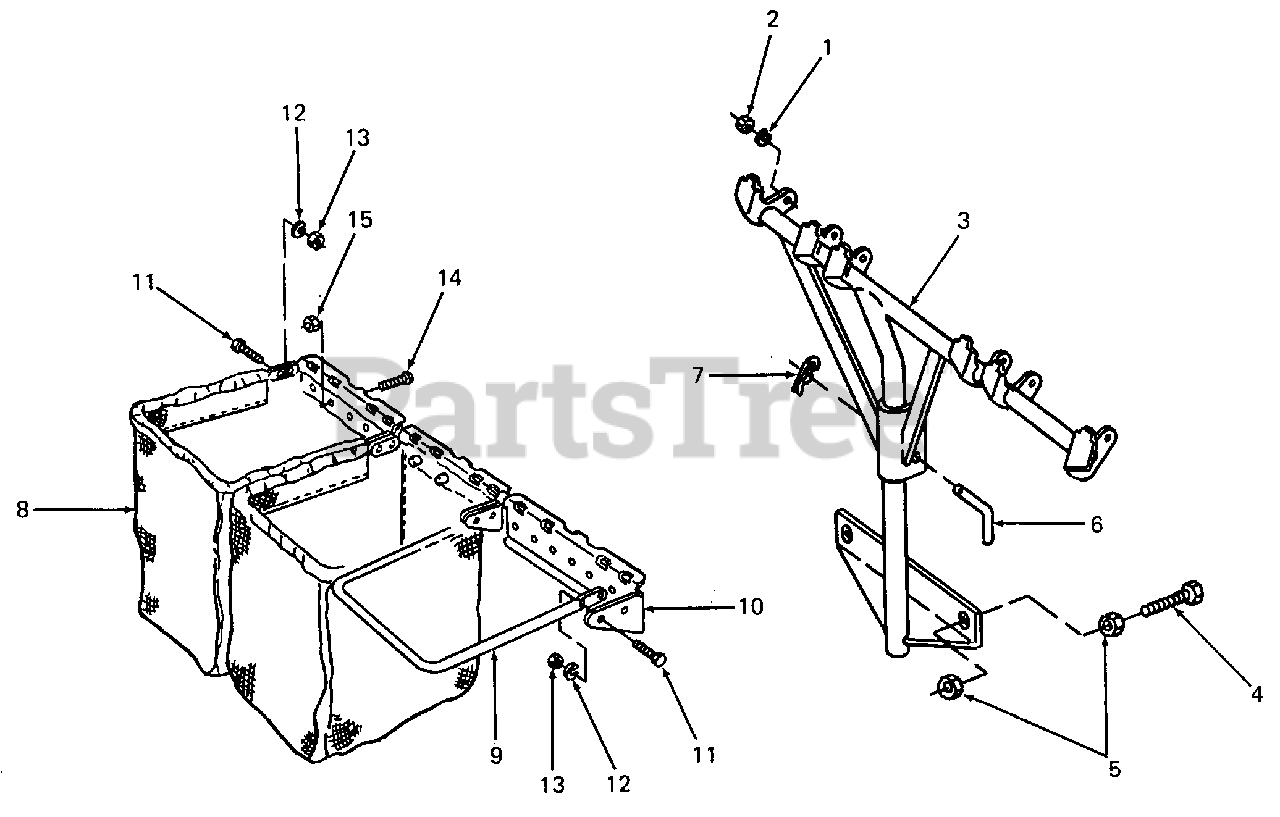

Rear Bagger Parts Diagram

  • Title

1

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-1776

Tube Assy, Catcher Support

$

$

Not available

4

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 711-3284

Pin, Right Angle Clevis

$

$

Currently unavailable

7

Cub Cadet 714-0117

Pin, Internal Cotter, 5/8 Dia

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet 764-0251

Bag, Grass Catcher
(Superseded to 964-0251)

$83.99

$

In Stock, Qty 20+

0

9

Cub Cadet 749-0745

Frame, Catcher Bag
(Superseded to 749-0745A-0637)

$56.99

$

In Stock, only 1 left!

0

10

Cub Cadet 17201

Bracket, Bag Frame Hanger
(Superseded to 17201A-0637)

Variations

Cub Cadet 17201-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0412

Screw, Hex Cap, 1/4-28 X .75 Lg

$5.49

$

In Stock, Qty 9

0

12

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0192

Screw, Truss Mach, #10-24 X .38 Lg

$3.49

$

In Stock, Qty 11

0

15

Cub Cadet 712-0272

Nut, Hex Sems, #10-24

$3.99

$

In Stock, only 1 left!

0
