330 (UT-10604) - Homelite Chainsaw Chain Brake and Chain Stop Parts Diagram

Chainsaw

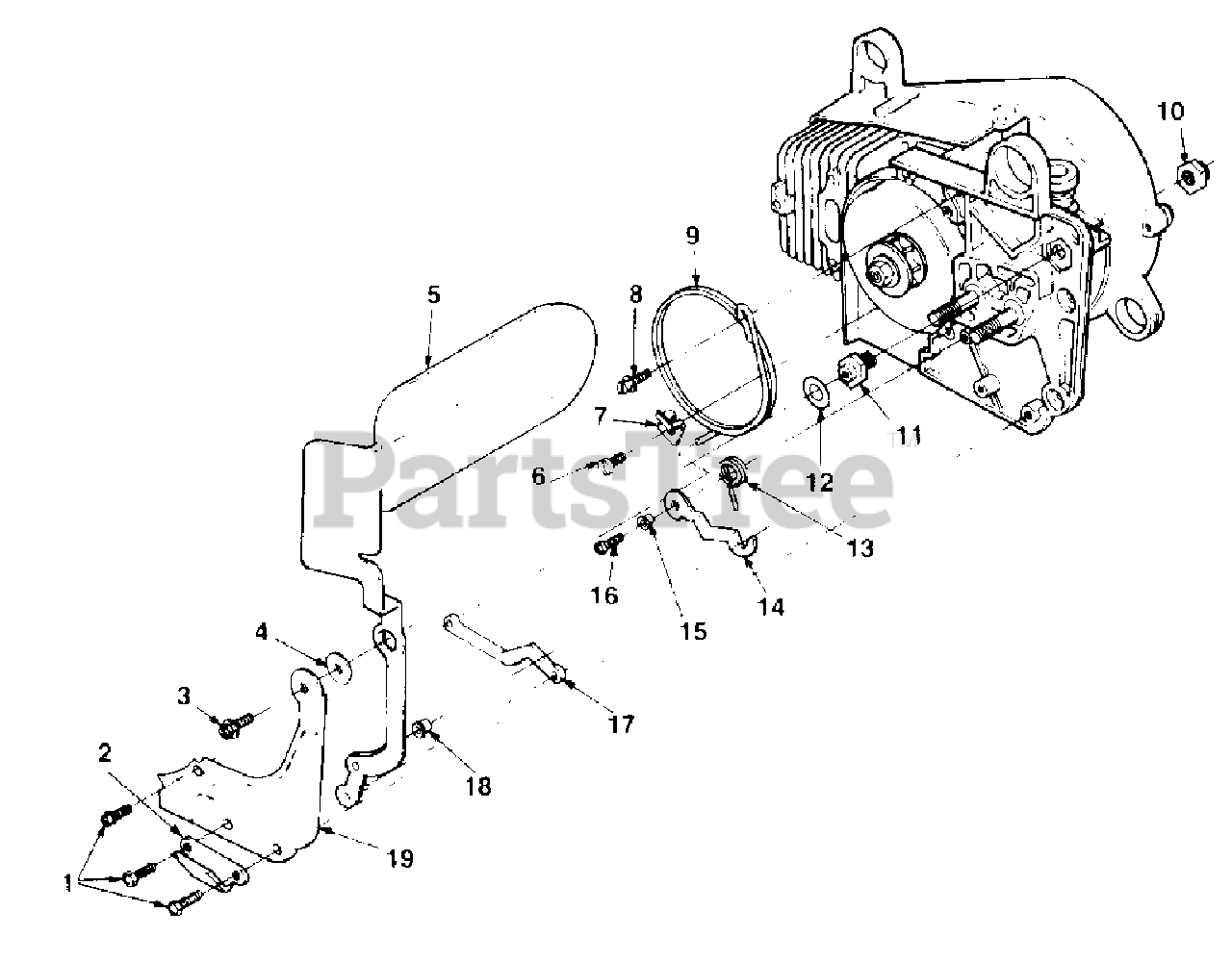

Chain Brake and Chain Stop Parts Diagram

  • Title

1

Homelite 80983

SCREW- (8-32 x 1/2)
(Superseded to 80560)

$

$

Not available

2

Homelite 70705

STOP- Chain

$

$

Not available

3

Homelite 88048

SCREW- (10-24 x 3/8)
(Superseded to 5687301)

$

$

Not available

4

Homelite 70632

WASHER- Flat

$

$

Not available

5

Homelite A95409A

GUARD- hand

$

$

Currently unavailable

6

Homelite 80672

SCREW- Pan hd
(Superseded to UP03420)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 95411

BRACKET

$

$

Not available

8

Homelite 80821

SCREW (12 24 x 1/2)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 95283

BAND- Brake

$

$

Not available

10

Homelite 81192

NUT- Hex (3/8-24)
(Superseded to UP03654)

$

$

Not available

11

Homelite 95376

INSERT- Chain brake

$

$

Currently unavailable

12

Homelite 95410

WASHER- Spring

$

$

Not available

13

Homelite 95284A

SPRING- Torsion

$

$

Not available

14

Homelite 95287

DETENT- Brake lever

$

$

Not available

15

Homelite 95295

SPACER- Flanged

$

$

Not available

16

Homelite 82254

SCREW- Mach pan hd. (8-32 x 1/2)
(Superseded to UP06626)

$

$

Not available

17

Homelite 95286

LINK- Chain brake

$

$

Not available

18

Homelite 95494

BUSHING

$

$

Not available

19

Homelite 953941

SHIELD- Chain brake

$

$

Currently unavailable

Homelite 95838

BUMPER- Spike (not shown)

$

$

Not available

Homelite 960621

CARBURETOR SHIELD (not shown)

$

$

Currently unavailable
