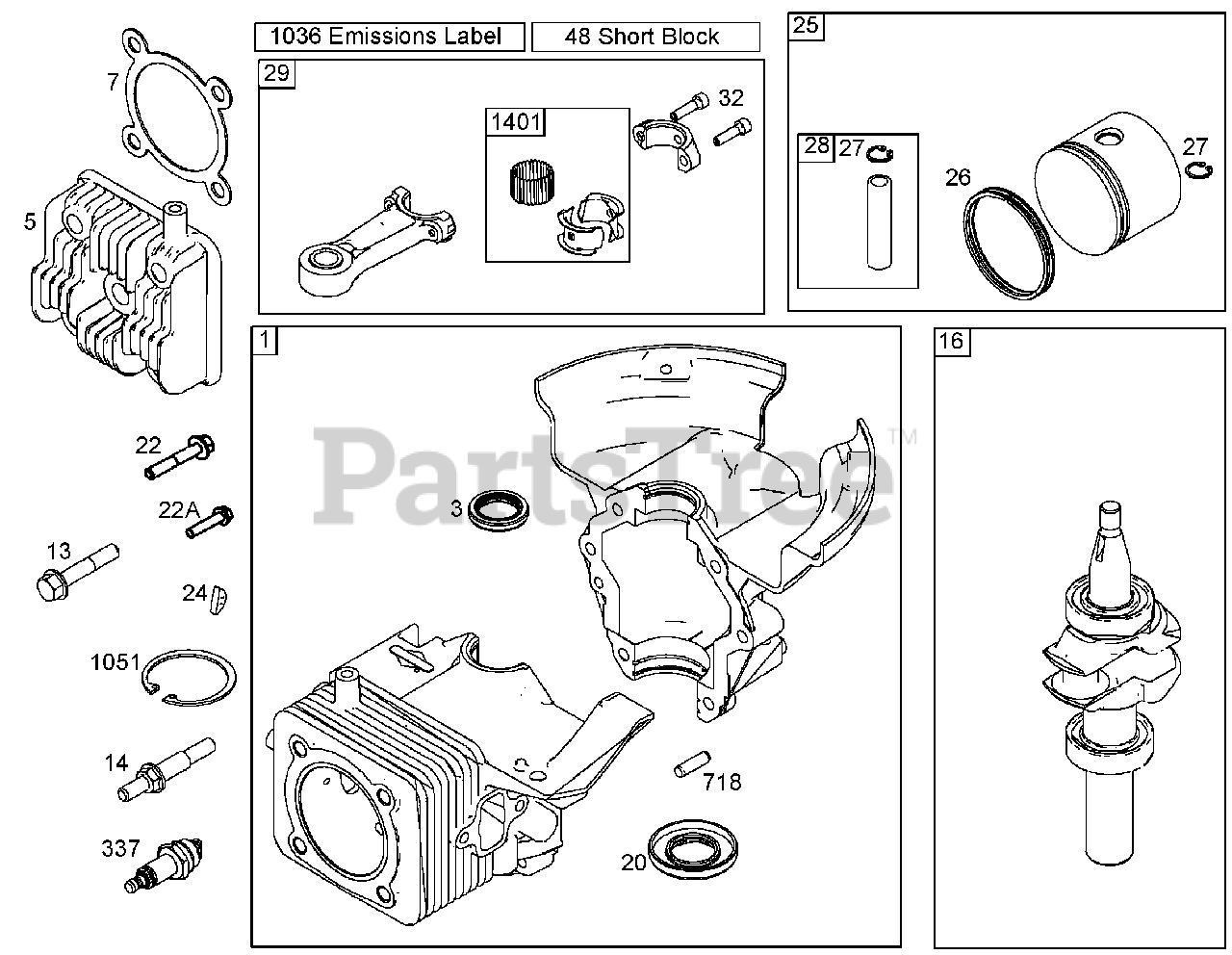

33006 (1000) - Lawn-Boy Insight Snow Thrower (SN: 270000001 - 270999999) (2007) CYLINDER, PISTON, AND CONNECTING ROD ASSEMBLIES BRIGGS AND STRATTON 084233-0198-E1 Parts Diagram

Insight Snow Thrower

CYLINDER, PISTON, AND CONNECTING ROD ASSEMBLIES BRIGGS AND STRATTON 084233-0198-E1 Parts Diagram

  • Title
1

Lawn-Boy 801322

Cylinder ASM

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

3

Lawn-Boy 801262

Seal-Oil

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

5

Lawn-Boy 801283

Head-Cylinder

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

7

Lawn-Boy 801263

Gasket-Head, Cylinder

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

13

Lawn-Boy 801264

Screw (Cylinder Head)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

14

Lawn-Boy 801265

Stud (Cylinder Head)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

16

Lawn-Boy 801220

Crankshaft

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

20

Lawn-Boy 801261

Seal-Oil

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

22

Lawn-Boy 801266

Screw (Crankcase Cover and Sump)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

22A

Lawn-Boy 801271

Screw (Crankcase Cover and Sump)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

24

Lawn-Boy 801234

Key-Flywheel

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

25

Lawn-Boy 801279

Piston ASM

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

26

Lawn-Boy 801280

Ring Set

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

27

Lawn-Boy 801275

Lock-Pin, Piston

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

28

Lawn-Boy 801276

Pin-Piston

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

29

Lawn-Boy 801277

Rod-Connecting

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

32

Lawn-Boy 801278

Screw

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

48

Lawn-Boy 801285

Short Block

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

337

Lawn-Boy 801254

Plug-Spark

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

718

Lawn-Boy 690959

Pin-Locating

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1036

Lawn-Boy 801294

Label-Emissions

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1051

Lawn-Boy 801274

Ring-Retaining

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1401

Lawn-Boy 801290

Roller-Strip

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
