3310 (31AH95P6711) - Troy-Bilt Polar Blast 33" Snow Thrower (2011) Augers, Housing & Gearbox Parts Diagram

Polar Blast 33" Snow Thrower

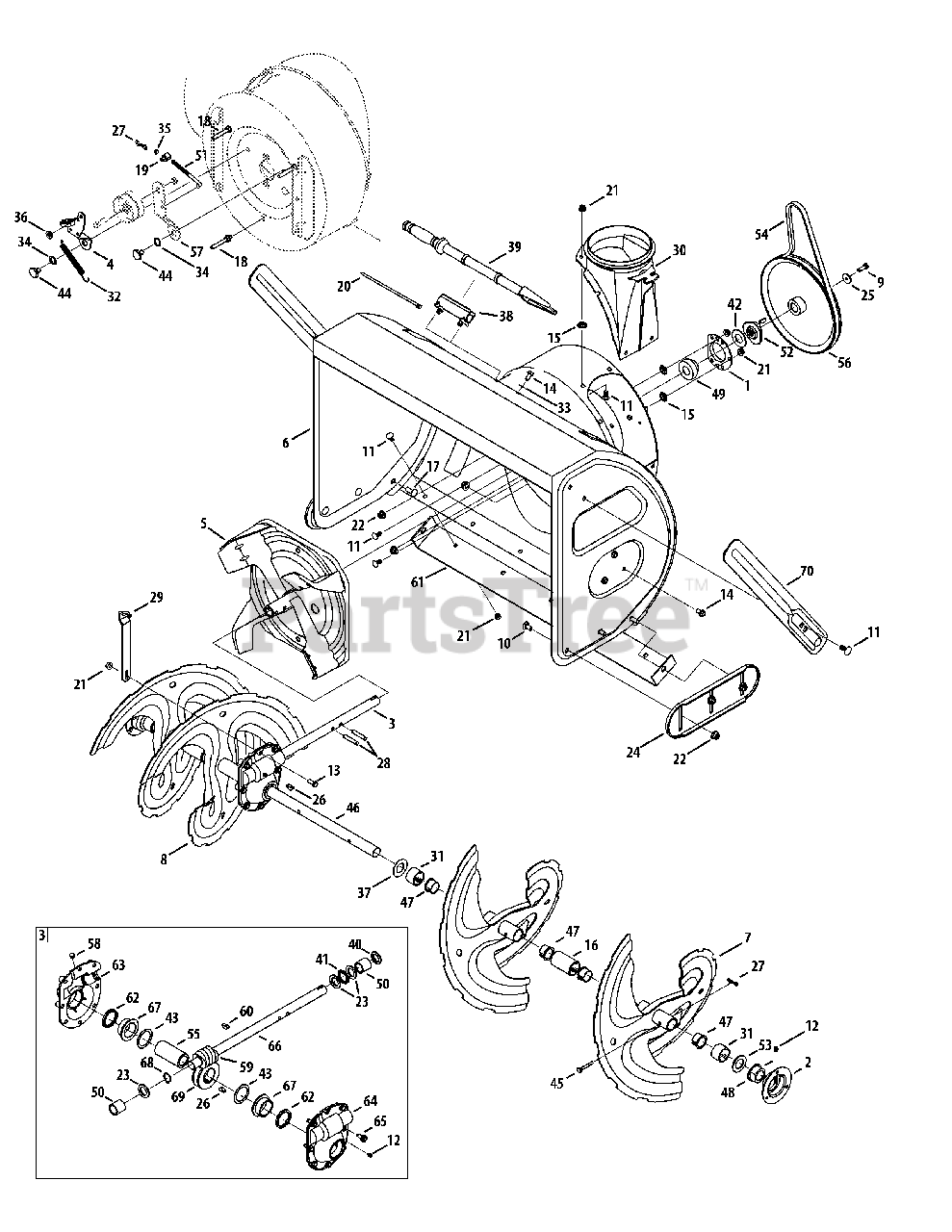

Augers, Housing & Gearbox Parts Diagram

  • Title

1

Troy-Bilt 05244B

Housing, Bearing

$22.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 784-0315A

Housing, Bearing

Variations

Troy-Bilt 784-0315A-0637

Housing Bearing - POWDER BLACK (0637)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 918-04514

Gear Box Assembly

$517.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 918-0281A

Bracket Assembly, Auger Brake

$60.99

$

In Stock, only 4 left!

0

5

Troy-Bilt 684-0090B-0637

Impeller, 16"

$425.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 684-04226-4033

Housing, Auger

$

$

Not available

7

Troy-Bilt 684-04151-0638

Spiral Assembly, LH
(Superseded to 684-04151-0637)

$249.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 684-04152-0638

Spiral Assembly, RH
(Superseded to 684-04152-0637)

$249.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-1245B

Screw, Hex Cap Lock, 5/16-24

$7.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 710-0389

Screw, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 10

0

11

Troy-Bilt 710-0451

Screw, Carriage, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 937-3000

Fitting, Lube

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, Qty 17

0

14

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 926-04012

Nut, Push
(Superseded to 726-04012)

$

$

Not available

16

Troy-Bilt 731-05162

Spacer, 1.0 x 1.5 x 2.5 Lg

$6.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-3168

Screw, Carriage, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-04606A

Screw w/Stud, 5/16-18 x .4300

$6.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 911-0677

Ferrule

$16.99

$

In Stock, only 4 left!

0

20

Troy-Bilt 725-0157

Tie Strap

$3.49

$

In Stock, only 4 left!

0

21

Troy-Bilt 712-04063

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-04065

Nut, Hex Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 936-0291

Wash, Flat, .88 ID x .38 OD

$10.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 784-5697-4033

Skid Shoe

$42.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 731-06007

Skid Shoe

Note: If equipped, Polymer

$42.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 736-0505

Washer, Flat, .34 x 1.5 x .15 Ht.

$5.99

$

In Stock, Qty 6

0

26

Troy-Bilt 914-0135

Key, Woodruff, 1/4 x 3/4
(Superseded to 714-0135)

$

$

Not available

27

Troy-Bilt 714-04040

Pin, Bow-tie Cotter

$1.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 915-0118

Pin, Spiral, 5/16 x 1.75
(Superseded to 715-0118)

$

$

Not available

29

Troy-Bilt 790-00264A-0637

Bracket, Gear Box Support

$18.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 731-1696B

Adapter, Chute, 6"

$84.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 731-05163

Spacer, 1.0 x 1.5 x 1.0 Lg

$6.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 732-0858

Spring, Extension

$23.99

$

In Stock, Qty 6

0

33

Troy-Bilt 936-0159

Washer, Flat, .349 x .879 .063
(Superseded to 736-0159)

$

$

Not available

34

Troy-Bilt 736-0174

Washer, Wave, .625 x .885 x .015

$6.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 712-3007

Jam Nut, 5/16-18

$6.49

$

In Stock, Qty 6

0

36

Troy-Bilt 936-3008

Washer, .344 x .75 x .12

$6.49

$

In Stock, only 1 left!

0

37

Troy-Bilt 736-3046A

Washer, 1.01 x 1.86 x .06

$8.49

$

Usually ships in 3-6 days

0

38

Troy-Bilt 731-2635

Clip, Mounting
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 931-2643

Tool, Clean-out

$18.99

$

In Stock, Qty 7

0

40

Troy-Bilt 921-0145

Seal, Oil

$9.49

$

In Stock, only 4 left!

0

41

Troy-Bilt 741-0184

Bearing, Thrust

$15.99

$

In Stock, only 4 left!

0

42

Troy-Bilt 736-0188

Washer, Flat, .76 x 1.49 x .06

$3.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 936-0266

Wash, Flat, 1.52ID x 2.0 OD
(Superseded to 736-0266)

$

$

Not available

44

Troy-Bilt 938-0281

Screw, Shoulder, .625 x .17
(Superseded to 738-0281)

$

$

Not available

45

Troy-Bilt 738-04155

Pin, Shear, .25 x 1.75

$1.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 938-04158

Shaft, Spiral

$177.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 741-0494

Bushing, Flange,

$3.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 741-0192

Bearing, Flange w/Flats
(Superseded to 941-0170)

$17.99

$

In Stock, only 2 left!

0

49

Troy-Bilt 941-04024

Bearing, Self Aligning

$60.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 941-0217

Sleeve

$16.99

$

In Stock, Qty 11

0

51

Troy-Bilt 747-0980A

Rod, Auger Idler

$44.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 748-04067A

Adapter, Pulley w/Pins

$24.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 950-04020

Spacer, 1.004 x 1.375 x .25

$11.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 954-04194A

V-Belt, 1/2 x 42

$22.99

$

In Stock, only 4 left!

0

55

Troy-Bilt 738-0275

Shaft, Gear, Worm

$104.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 756-04244A

Pulley, Auger Drive, 10.0

$56.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 784-0385D

Bracket, Auger Idler

$27.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 721-0325

Plug

$4.49

$

In Stock, only 1 left!

0

59

Troy-Bilt 917-0299

Gear, Worm

$115.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 914-0126

Key, Hi Pro, 3/16 x 3/4
(Superseded to 714-0126)

$4.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 784-5714B

Plate, Shave

Variations

Troy-Bilt 784-5714B-0637

Shave Plate, 33" Black - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5714B-0606

Shave Plate, 33" - MAJESTIC ORANGE (0606)

$52.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5714B-0638

PLATE:SHAVE:33" - MTD/TROY-BILT RED (0638)

$52.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5714B-0650

Shave Plate, 33" - RED METALLIC (0650)

$52.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5714B-4021

PLATE:SHAVE:33" - CUB YELLOW 2 (4021)

$52.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5714B-0691

PLATE:SHAVE:33" - BLACK JACK (0691)

$52.99

$

In Stock, only 1 left!

0

$47.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 921-0146

Oil Seal

$11.99

$

In Stock, only 4 left!

0

63

Troy-Bilt 918-0246

Hsg, Ass’y, Auger RH (Incl. Ref. 62 & 67)

$

$

Not available

64

Troy-Bilt 918-0435

Hsg, Ass’y, Auger LH (Incl. Ref. 62 & 67)

$101.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 710-1260A

Screw, LD, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 711-04714

Shaft, Drive, Auger

$62.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 741-0670

Flange Bearing

$12.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 716-0111

External, Retaining, Ring

$6.49

$

In Stock, Qty 11

0

69

Troy-Bilt 917-1425

Gear, Worm, LH

$165.99

$

In Stock, only 2 left!

0
