3317524BVE (7800787) - Snapper 33" Rear-Engine Riding Mower, 17.5hp Wiring Schematic (11.5 HP Briggs, Recoil Start) Parts Diagram

33" Rear-Engine Riding Mower, 17.5hp

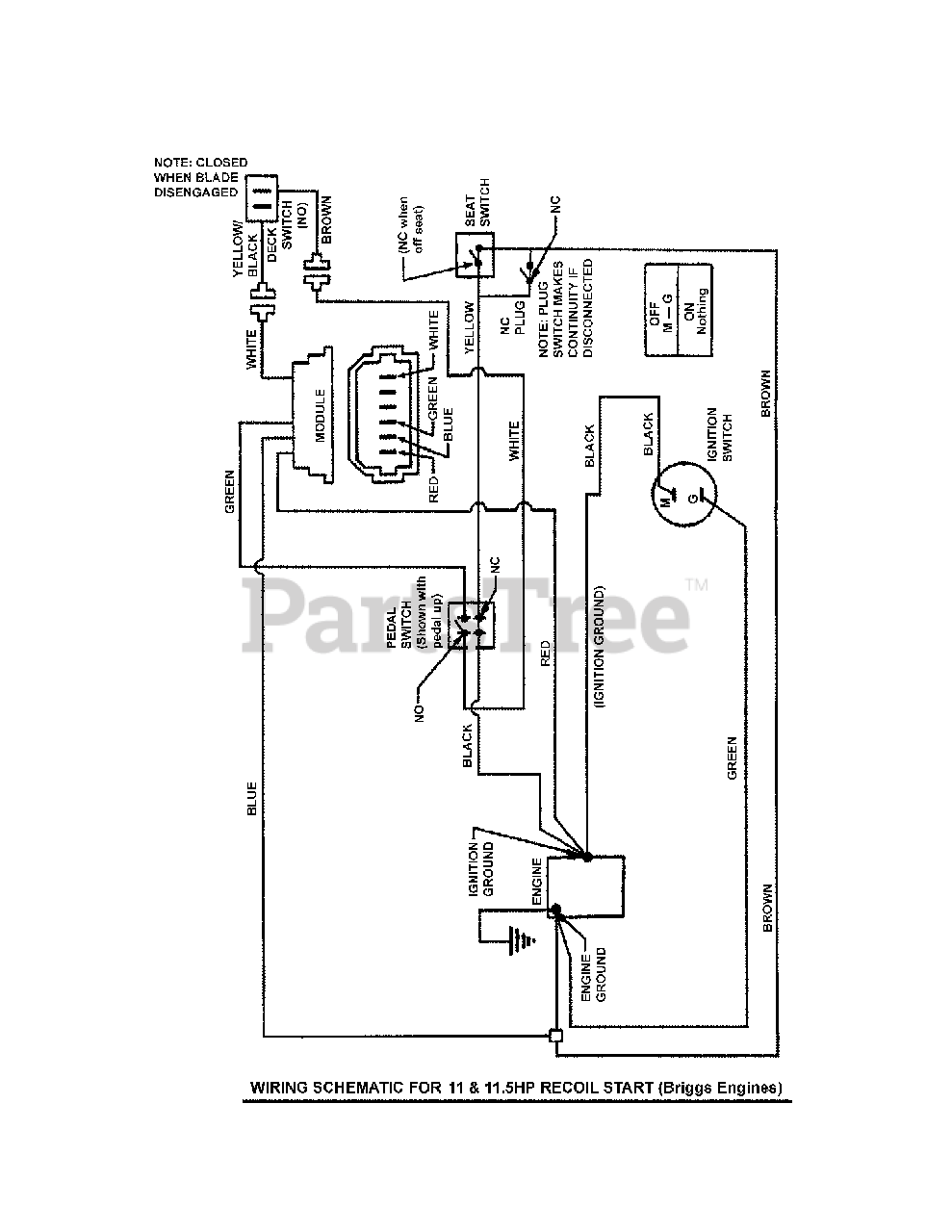

Wiring Schematic (11.5 HP Briggs, Recoil Start) Parts Diagram

  • Title

--

--

Wiring Schematic incl. harness #'s 7028386, 7073714 & 7028607

Note: (7800784 Model)

$

$

Not available
