3332 - International Harvester 22" Self-Propelled Walk-Behind Mower (1975 - 1976) Clutch And Drive Unit Parts Diagram

22" Self-Propelled Walk-Behind Mower

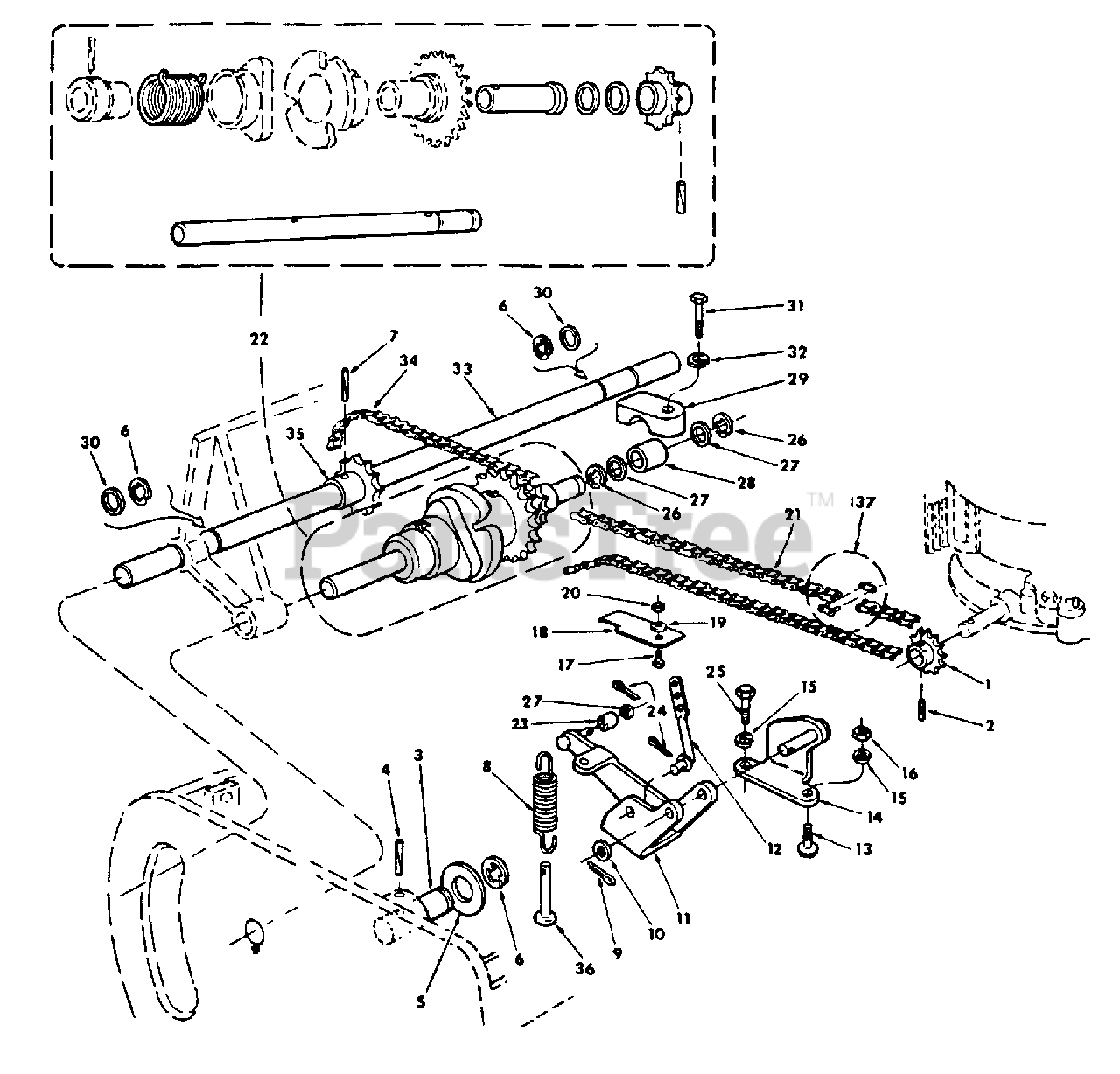

Clutch And Drive Unit Parts Diagram

  • Title

1

Cub Cadet IH-62957-C1

SPROCKET, 12 TOOTH

$

$

Currently unavailable

2

Cub Cadet IH-17145-R1

PIN, 3/16 X 3/4 HV SLT SPRING
(Superseded to 715-3003)

$6.49

$

In Stock, Qty 11

0

3

Cub Cadet IH-62964-C1

PIN, HANDLE PIVOT RH

$

$

Currently unavailable

4

Cub Cadet IH-17175-R1

PIN, 3/16 X 1 HV SLT SPRING
(Superseded to 715-0120)

$9.99

$

In Stock, only 1 left!

0

5

Cub Cadet IH-120389

WASHER, .500 X 1.250 X .064

$

$

Currently unavailable

6

Cub Cadet IH-370290-R1

RING, RETAINING

$

$

Not available

7

Cub Cadet IH-553686-R1

PIN, 3/16 X 1-1/2 HV SLT SPRING

$

$

Not available

8

Cub Cadet IH-62963-C1

SPRING

$

$

Not available

9

Cub Cadet IH-103385

PIN, 1/8 X 1 COT.

$

$

Currently unavailable

10

Cub Cadet IH-446363

WASHER, .375 X .875 X .064 ZND
(Superseded to 936-0159)

$

$

Not available

11

Cub Cadet IH-62960-C1

ARM ASSY, CLUTCH

$

$

Currently unavailable

12

Cub Cadet IH-62959-C1

ROD, CABLE

$

$

Currently unavailable

13

Cub Cadet IH-120272

SCREW, 5/16-18 X 1 TRUSS-HD MACH

$

$

Currently unavailable

14

Cub Cadet IH-62962-C1

BRACKET ASSY, CLUTCH ARM

$

$

Currently unavailable

15

Cub Cadet IH-120274

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

16

Cub Cadet IH-120876

NUT, 5/16-18 HEX.

$

$

Currently unavailable

17

Cub Cadet IH-155193

SCREW, 10-32 X 1/2 RD-HD mACH

$

$

Currently unavailable

18

Cub Cadet IH-62958-C1

KEEPER, CHAIN IDLER

$

$

Currently unavailable

19

Cub Cadet IH-131183

WASHER, NO. 10 SPRING LOCK

$

$

Currently unavailable

20

Cub Cadet IH-24734-R1

NUT, 10-32 HEX.

$

$

Currently unavailable

21

Cub Cadet IH-62956-C1

CHAIN, 97 LINK

$

$

Not available

22

Cub Cadet IH-62951-C1

CLUTCH & SHAFT ASSY

Note: (SERVICED ONLY AS AN ASSEMBLY)

$

$

Currently unavailable

23

Cub Cadet IH-62961-C1

ROLLER

$

$

Currently unavailable

24

Cub Cadet IH-103372

PIN, 3/32 X 1/2 COT.

$

$

Currently unavailable

25

Cub Cadet IH-18474-R1

SCREW, 5/16-18 X 1 HEX-HD CAP

$

$

Currently unavailable

26

Cub Cadet IH-384052-R1

RING, RETAINING -2-

$

$

Currently unavailable

27

Cub Cadet IH-446143

WASHER, .188 X .375 X .036

Note: (REPLACES IH-63037-C1)

$

$

Currently unavailable

28

Cub Cadet IH-62954-C1

BEARING

$

$

Currently unavailable

29

Cub Cadet IH-62955-C1

RETAINER

$

$

Currently unavailable

30

Cub Cadet IH-63036-C1

WASHER, .594 X 1-1/4 X 1/16
(Superseded to 736-0187)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet IH-180022

SCREW, 1/4-20 X 1 HEX-HD

$

$

Currently unavailable

32

Cub Cadet IH-180380

WASHER, 1/4 REG LOCK

$

$

Currently unavailable

33

Cub Cadet IH-62946-C1

SHAFT, REAR DRIVE

$

$

Currently unavailable

34

Cub Cadet IH-62949-C1

CHAIN, 31 LINK

$

$

Not available

35

Cub Cadet IH-62948-C1

SPROCKET, 18 TOOTH

$

$

Currently unavailable

36

Cub Cadet IH-Q1191

PIN, 5/16 X 1-1/2 STD-HD

$

$

Currently unavailable

37

Cub Cadet IH-62950-C1

LINK, MASTER

Note: (1 FOR EACH CHAIN)

$

$

Not available
