3332 - International Harvester 22" Self-Propelled Walk-Behind Mower (1975 - 1976) Engine Parts Diagram

22" Self-Propelled Walk-Behind Mower

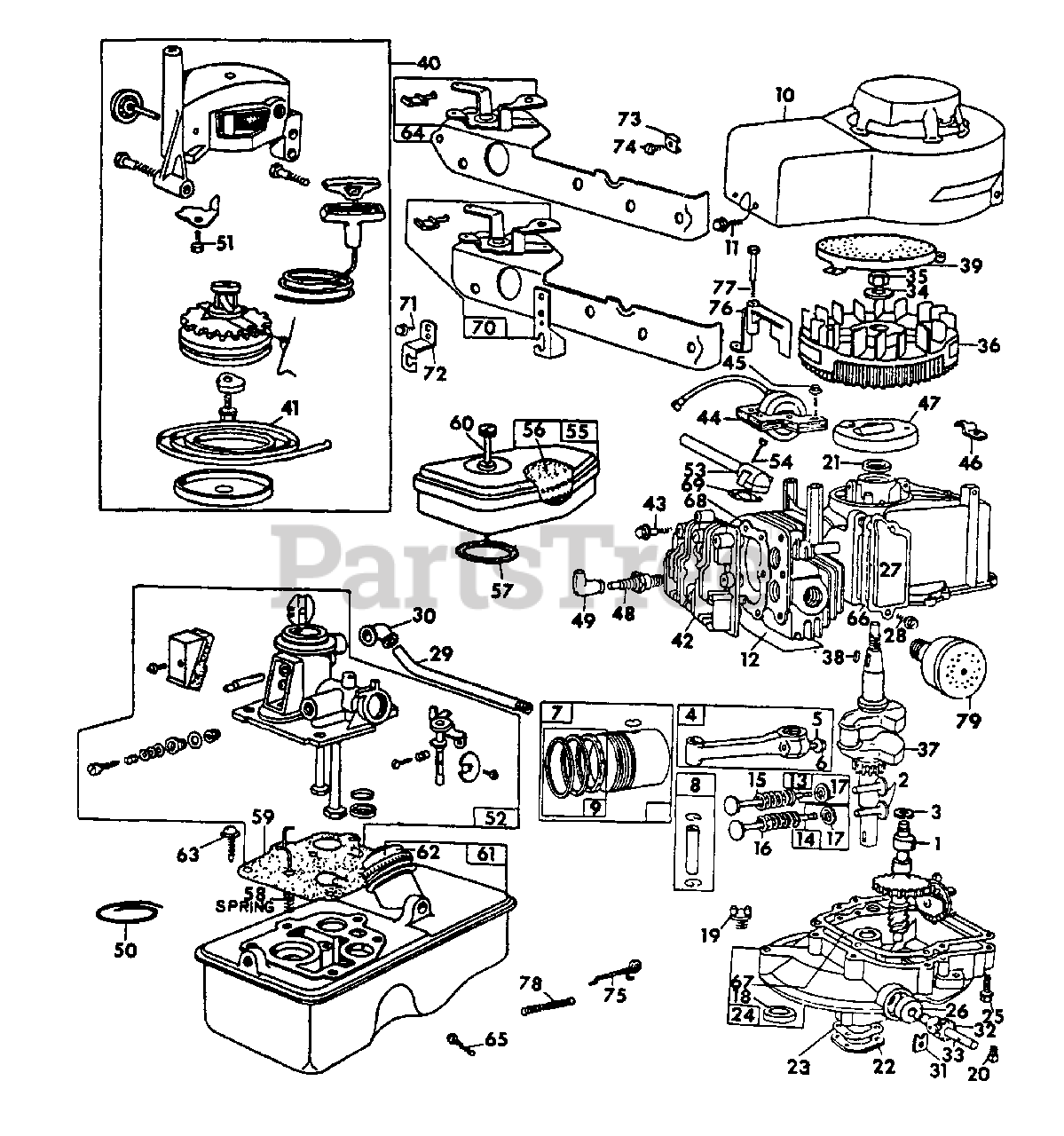

Engine Parts Diagram

  • Title

1

Cub Cadet IH-63593-C1

CAM W/GEAR WORM AND OIL SLINGER

$

$

Currently unavailable

2

Cub Cadet IH-60412-C1

TAPPET VALVE

$

$

Currently unavailable

3

Cub Cadet IH-549427-R1

WASHER, THRUST

$

$

Currently unavailable

4

Cub Cadet IH-63594-C91

ROD ASSY, CONNECTING - STD

$

$

Not available

5

Cub Cadet IH-60369-C1

LOCK, SCREW HEAD

$

$

Currently unavailable

6

Cub Cadet IH-549362-R1

SCREW, CONNECTING ROD

$

$

Currently unavailable

7

Cub Cadet IH-549366-R91

PISTON ASSY - STD

$

$

Not available

8

Cub Cadet IH-549367-R1

PIN, PISTON & RETAINER - STD
(Superseded to BS-298909)

$8.99

$

In Stock, only 4 left!

0

9

Cub Cadet IH-539658-R1

RING SET, PISTON CHROME - STD

$

$

Not available

9

Cub Cadet IH-539659-R1

RING SET, PISTON - STD
(Superseded to BS-298982)

$48.99

$

In Stock, Qty 11

0

10

Cub Cadet IH-63595-C1

HOUSING, BLOWER

$

$

Not available

11

Cub Cadet IH-539677-R1

SCREW, BLOWER HOUSING MOUNTING

$

$

Not available

12

Cub Cadet IH-63596-C1

SHIELD, CYLINDER

$

$

Currently unavailable

Cub Cadet IH-450644

SCREW , 8-32 X 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER, NO. 8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

13

Cub Cadet IH-60386-C91

VALVE, INTAKE
(Superseded to BS-296677)

$24.99

$

In Stock, only 4 left!

0

14

Cub Cadet IH-60387-C91

VALVE, EXHAUST

$

$

Not available

15

Cub Cadet IH-549865-R1

SPRING, INTAKE VALVE

$

$

Currently unavailable

16

Cub Cadet IH-539668-R1

SPRING, EXHAUST VALVE

$

$

Not available

17

Cub Cadet IH-549389-R1

RETAINER, VALVE SPRING
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

18

Cub Cadet IH-63597-C1

SEAL, OIL

$

$

Currently unavailable

19

Cub Cadet IH-549404-R1

PLUG, OIL FILLER
(Superseded to BS-281658S)

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet IH-445686

PLUG, 3/8-18 AUTOMOTIVE
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

21

Cub Cadet IH-549386-R1

SEAL, OIL
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet IH-63601-C1

COVER, SUMP

$

$

Currently unavailable

23

Cub Cadet IH-63602-C1

GASKET, SUMP COVER

$

$

Currently unavailable

24

Cub Cadet IH-63603-C1

BASE, OIL SUMP

$

$

Currently unavailable

25

Cub Cadet IH-549406-R1

SCREW, SUMP MOUNTING

$

$

Currently unavailable

26

Cub Cadet IH-63604-C1

SEAL, OIL

$

$

Currently unavailable

Cub Cadet IH-18654-R1

BOLT, 1/4 X 3/4 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

27

Cub Cadet IH-63605-C1

BREATHER, VALVE CHAMBER

$

$

Not available

28

Cub Cadet IH-549415-R1

SCREW, BREATHER MOUNTING
(Superseded to BS-691666)

Note: (6 FOR ENGINE IH-63007-C91 AND 2 FOR ENGINE IH-63008-C91)

$3.99

$

In Stock, Qty 5

0

29

Cub Cadet IH-63606-C1

TUBE, BREATHER

$

$

Currently unavailable

30

Cub Cadet IH-549419-R1

GROMMET, BREATHER TUBE
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-17175-R1

PIN, 3/16 X 1 HV SLT SPRING
(Superseded to 715-0120)

$9.99

$

In Stock, only 2 left!

0

31

Cub Cadet IH-63607-C1

SUPPORT, DRIVE SHAFT STOP

$

$

Currently unavailable

32

Cub Cadet IH-63608-C1

GEAR, DRIVE 17 T

$

$

Currently unavailable

33

Cub Cadet IH-63609-C1

PIN, DRIVE SHAFT

$

$

Currently unavailable

34

Cub Cadet IH-549431-R1

WASHER, FLYWHEEL

$

$

Currently unavailable

35

Cub Cadet IH-63613-C1

NUT, FLYWHEEL
(Superseded to 712-3056)

$4.49

$

In Stock, Qty 7

0

36

Cub Cadet IH-63615-C1

FLYWHEEL

$

$

Not available

37

Cub Cadet IH-63616-C1

CRANKSHAFT

$

$

Currently unavailable

38

Cub Cadet IH-549434-R1

KEY, FLYWHEEL
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

39

Cub Cadet IH-63616-C1

SCREEN, ROTATING

$

$

Currently unavailable

40

Cub Cadet IH-63619-C1

STARTER, VERTICAL PULL

Note: (USED W/ENGINE IH-63007-C91)

$

$

Not available

41

Cub Cadet IH-63621-C1

SPRING, VERTICAL PULL STARTER

Note: (USED W/ENGINE IH-63007-C91)

$

$

Not available

42

Cub Cadet IH-63622-C1

HEAD, CYLINDER

$

$

Currently unavailable

43

Cub Cadet IH-60402-C1

SCREW, CYLINDER
(Superseded to BS-691640)

$3.49

$

In Stock, only 2 left!

0

44

Cub Cadet IH-60401-C1

ARMATURE, MAGNETO

$

$

Not available

45

Cub Cadet IH-549461-R1

SCREW, ARMATURE MOUNTING

$

$

Currently unavailable

46

Cub Cadet IH-549466-R1

CLAMP, CONDENSOR

$

$

Currently unavailable

Cub Cadet IH-450644

SCREW, 8-32 K 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER, NO. 8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

47

Cub Cadet IH-539705-R1

COVER, BREAKER POINT

$

$

Currently unavailable

Cub Cadet IH-26000-R1

SCREW, 8-32 X 3/8 TYPE T ZND HEX WASHER-HD TAP

$

$

Not available

48

IH-CJ8

PLUG, SPARK -CHAMPION-

$

$

Not available

49

Cub Cadet IH-267627-R1

ELBOW, SPARK PLUG INSULATOR
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 15

0

50

Cub Cadet IH-63623-C1

WIRE, GROUND

$

$

Not available

51

Cub Cadet IH-63630-C1

SCREW, ELECTRIC STARTER

$

$

Currently unavailable

52

Cub Cadet IH-63644-C1

CARBURETOR

Note: (USED W/ENGINE IH-63007-C91)

$

$

Not available

52

Cub Cadet IH-63645-C1

CARBURETOR

Note: (USED W/ENGINE IH-63008-C91)

$

$

Currently unavailable

53

Cub Cadet IH-63647-C1

TUBE, FUEL INTAKE

$

$

Currently unavailable

54

Cub Cadet IH-63648-C1

SCREW, INTAKE ELBOW MOUNTING

$

$

Currently unavailable

55

Cub Cadet IH-63649-C1

CLEANER, AIR

$

$

Not available

56

Cub Cadet IH-63650-C1

ELEMENT, AIR CLEANER

$

$

Not available

57

Cub Cadet IH-63651-C1

GASKET, AIR CLEANER MOUNTING

$

$

Not available

58

Cub Cadet IH-63652-C1

SPRING, DIAPHRAGM

$

$

Currently unavailable

59

Cub Cadet IH-63653-C1

DIAPHRAM, CARBURETOR

$

$

Not available

60

Cub Cadet IH-539722-R1

SCREW, AIR CLEANER

$

$

Currently unavailable

61

Cub Cadet IH-63655-C91

TANK ASSY, FUEL

$

$

Not available

62

Cub Cadet IH-539693-R1

CAP, FUEL TANK

$

$

Not available

63

Cub Cadet IH-63656-C1

SCREW, FUEL TANK MOUNTING

$

$

Currently unavailable

64

Cub Cadet IH-63661-C1

PLATE, CARBURETOR CONTROL

Note: (USED W/ENGINE IH-63007-C91)

$

$

Currently unavailable

65

Cub Cadet IH-549412-R1

SCREW, FUEL TANK TO STARTER MOTOR

$

$

Not available

66

GASKET, VALVE COVER

Note: (NOT SERVICED SEPARATELY, ORDER KIT IH-63591-C91)

$

$

Not available

67

GASKET, CRANKCASE

$

$

Not available

GASKET, CRANKCASE - .005 THICK

$

$

Not available

GASKET, CRANKCASE - .009 THICK

Note: (ORDER KIT IH-63591-C91)

$

$

Not available

68

GASKET, CYLINDER HEAD

Note: (ORDER KIT IH-63591-C91)

$

$

Not available

69

GASKET, INTAKE ELBOW

Note: (ORDER KIT IH-62591-C91)

$

$

Not available

70

Cub Cadet IH-63658-C1

BRACKET, CARBURETOR CONTROL PLATE

Note: (USED W/ENGINE IH-63008-C91)

$

$

Currently unavailable

71

Cub Cadet IH-25747-R1

SCREW, 8/32 X 3/4 HEX-HD TAP

Note: (USED W/ENGINE IH-63008-C91)

$

$

Currently unavailable

72

Cub Cadet IH-63641-C1

CLIP, HARNESS PLUG RETAINER

$

$

Currently unavailable

73

Cub Cadet IH-539726-R1

CLAMP, CASING

$

$

Not available

74

Cub Cadet IH-535731-R1

SCREW W/LOCKWASHER, HEX-HD

$

$

Currently unavailable

75

Cub Cadet IH-63665-C1

LINK, GOVERNOR

$

$

Not available

76

Cub Cadet IH-63666-C1

BLADE, GOVERNOR

$

$

Not available

77

Cub Cadet IH-63667-C1

SCREW

Note: (USED W/ENGINE IH-63008-C91)

$

$

Currently unavailable

78

Cub Cadet IH-63663-C1

SPRING, GOVERNOR

$

$

Currently unavailable

79

Cub Cadet IH-63669-C1

MUFFLER, EXHAUST

$

$

Not available

Cub Cadet IH-549491-R91

KIT, NEEDLE VALVE

$

$

Not available

Cub Cadet IH-549471-R91

KIT, IGNITION
(Superseded to BS-294628)

Note: (CONSISTS OF THE FOLLOWING (6) ITEMS)

$

$

Not available

SPRING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

BREAKER ASSY

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

PLUNGER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

SPRING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

SPRING

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

CONDENSOR

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

Cub Cadet IH-549434-R1

KEY
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

Cub Cadet IH-63591-C91

KIT, GASKET
(Superseded to BS-794209)

Note: CONSISTS OF THE FOLLOWING (7) ITEMS)

$21.99

$

Usually ships in 2-12 days

0

GASKET, VALVE COVER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CRANKCASE

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CRANKCASE .005

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CRANKCASE .009

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, CYLINDER HEAD

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, FUEL

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

GASKET, INTAKE ELBOW

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

Cub Cadet IH-63592-C91

KIT, STARTER MOTOR BRUSH

Note: (CONSISTS OF THE FOLLOWING (2) ITEMS)

$

$

Currently unavailable

BRUSH ASSY

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

TERMINAL ASSY

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

Cub Cadet IH-63590-C1

BLOCK, SHORT

$

$

Not available
