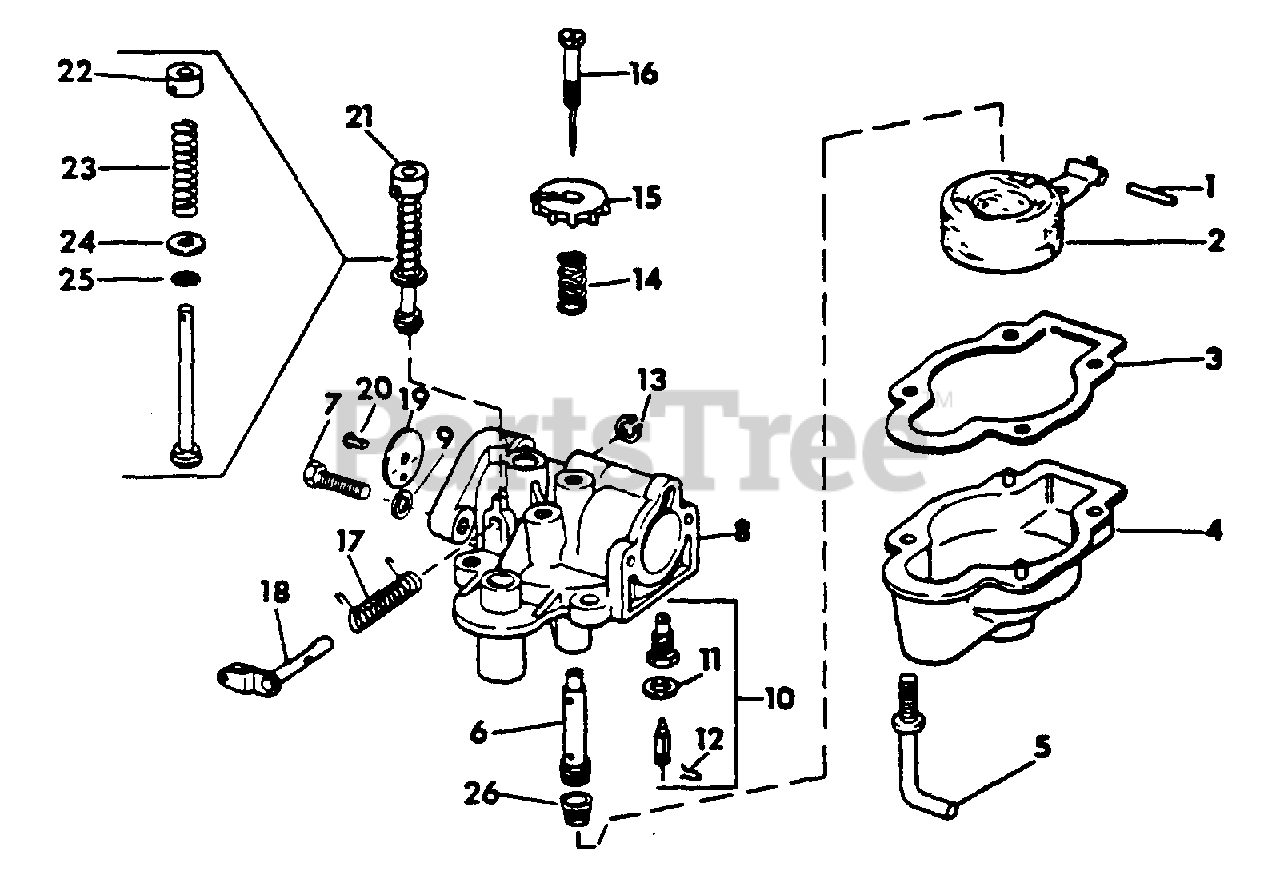

335 - International Harvester 21" Self-Propelled Walk-Behind Mower (1971) Carburetor Parts Diagram

21" Self-Propelled Walk-Behind Mower

Carburetor Parts Diagram

  • Title

Cub Cadet IH-545095-R91

CARBURETOR ASSY

$

$

Currently unavailable

1

Cub Cadet IH-544956-R1

PIN, FLOAT ARM HINGE

$

$

Currently unavailable

2

$

$

Not available

3

Cub Cadet IH-544962-R1

GASKET, FLOAT CHAMBER

$

$

Not available

4

Cub Cadet IH-544963-R1

CHAMBER, FLOAT

$

$

Currently unavailable

5

Cub Cadet IH-544964-R1

SCREW, FLOAT CHAMBER

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

8

BODY ASSY CARBURETOR

Note: (NOT SERVICED SEPARATELY)

$

$

Not available

$

$

Currently unavailable

10

Cub Cadet IH-545127-R1

FLOAT VALVE & SEAT

Note: (CONSISTS OF REF. NOS. 11 & 12)

$

$

Not available

11

Cub Cadet IH-545143-R1

WASHER, FLOAT VALVE SEAT

$

$

Currently unavailable

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Cub Cadet IH-544969-R1

SPRING, NEEDLE ADJ

$

$

Currently unavailable

15

Cub Cadet IH-544970-R1

KNOB, NEEDLE ADJ

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Cub Cadet IH-544972-R1

SPRING, THROTTLE

$

$

Currently unavailable

18

Cub Cadet IH-544973-R1

THROTTLE SHAFT & LEVER ASSY

$

$

Currently unavailable

19

Cub Cadet IH-544974-R1

DISC, THROTTLE

$

$

Currently unavailable

20

Cub Cadet IH-544975-R1

SCREW, THROTTLE SHAFT DISC

$

$

Currently unavailable

21

Cub Cadet IH-545110-R91

PRIMER ASSY

Note: (CONSISTS OF REF. NOS. 22 THRU 25)

$

$

Not available

22

Cub Cadet IH-544976-R1

KNOB, PRIMER

$

$

Currently unavailable

Cub Cadet IH-435864

PIN, 3/64 X 1/2 C-Z COT.

$

$

Currently unavailable

23

Cub Cadet IH-544978-R1

SPRING, COMPRESSION

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable
