335 XPT - Husqvarna Chainsaw (SN: 19970500001 - 19991000000) FUEL TANK & HANDLE Parts Diagram

Chainsaw

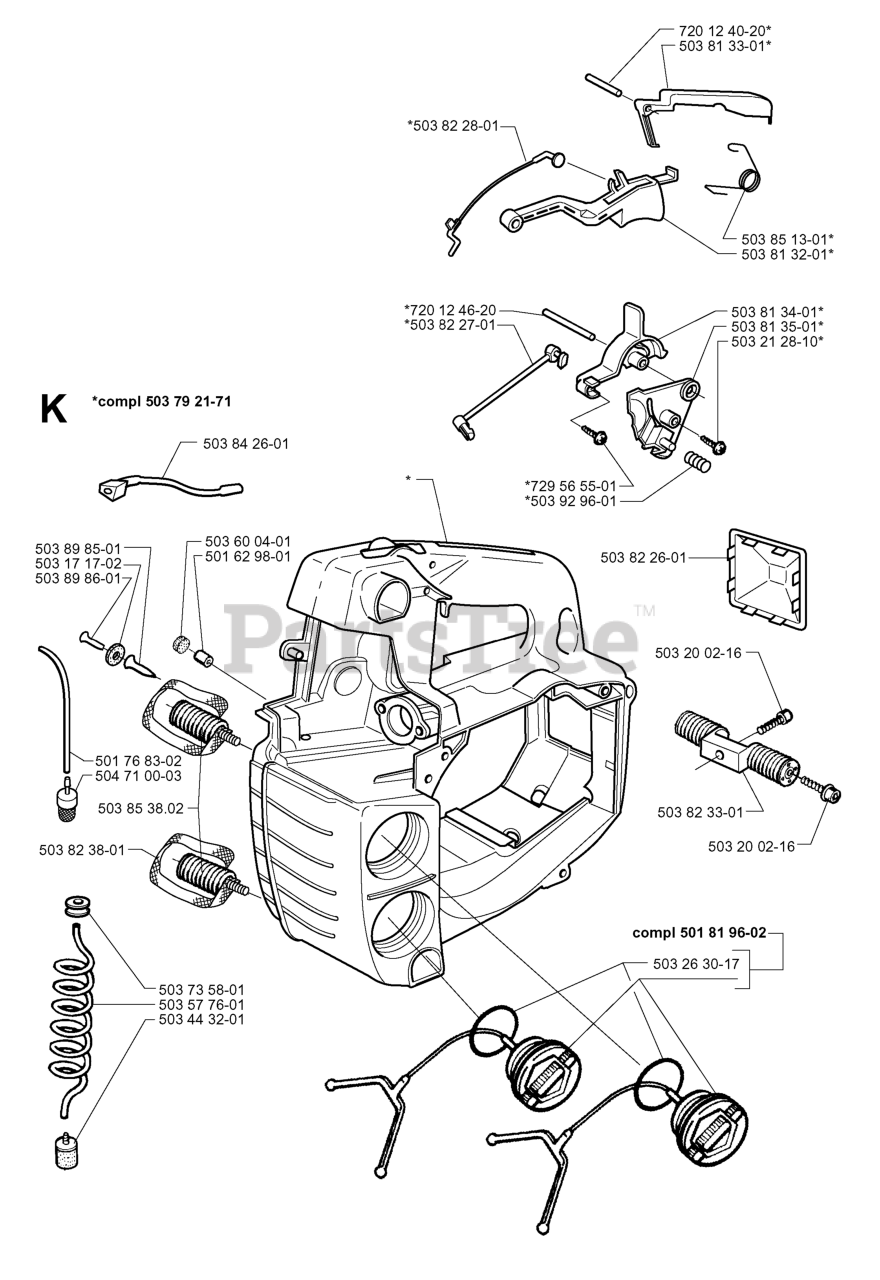

FUEL TANK & HANDLE Parts Diagram

  • Title

503 85 13-01

Husqvarna 503851301

SPRING

$6.99

$

Usually ships in 3-10 days

0

503 79 21-71

Husqvarna 503792171

TANK
(Superseded to 544110904)

$159.99

$

Usually ships in 3-10 days

0

503 82 27-01

Husqvarna 503822701

%CHOKE ROD
(Superseded to 503822702)

$6.99

$

Usually ships in 3-10 days

0

503 84 26-01

Husqvarna 503842601

HOSE

$

$

Not available

503 81 35-01

Husqvarna 503813501

PLATE

$6.99

$

Usually ships in 3-10 days

0

503 73 58-01

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$6.99

$

In Stock, Qty 20+

0

729 56 55-01

Husqvarna 729565501

SCREW

$4.99

$

Usually ships in 3-10 days

0

503 81 34-01

Husqvarna 503813401

SWITCH, START/STOP & CHOKE

$9.49

$

Usually ships in 3-10 days

0

503 82 26-01

Husqvarna 503822601

SPARK PLUG COVER
(Superseded to 537409801)

$

$

Not available

501 62 98-01

Husqvarna 501629801

VALVE PLUG

$7.49

$

In Stock, Qty 17

0

503 20 02-16

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

503 85 38.02

Husqvarna 503853802

INSULATOR

$28.99

$

Usually ships in 3-10 days

0

503 17 17-02

Husqvarna 503171702

FILTER

$

$

Not available

503 60 04-01

Husqvarna 503600401

FILTER PLUG

$7.49

$

In Stock, Qty 9

0

503 44 32-01

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

503 26 30-17

Husqvarna 503263017

O-RING

$8.99

$

In Stock, Qty 20+

0

501 76 83-02

Husqvarna 501768302

FUEL HOSE
(Superseded to 581756103)

$7.99

$

In Stock, only 4 left!

0

503 89 85-01

Husqvarna 503898501

VALVE

$

$

Not available

720 12 46-20

Husqvarna 720124620

PIN

$4.99

$

Usually ships in 3-10 days

0

503 81 32-01

Husqvarna 503813201

TRIGGER

$10.99

$

In Stock, only 2 left!

0

503 92 96-01

Husqvarna 503929601

SPRING

$5.99

$

Usually ships in 3-10 days

0

503 89 86-01

Husqvarna 503898601

PIN

$

$

Not available

503 21 28-10

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

503 82 38-01

Husqvarna 503823801

STRAP

$

$

Not available

503 81 33-01

Husqvarna 503813301

THROTTLE LOCK

$9.49

$

In Stock, only 3 left!

0

503 82 28-01

Husqvarna 503822801

ROD

$7.99

$

In Stock, only 2 left!

0

501 81 96-02

Husqvarna 501819602

FUEL/OIL CAP
(Superseded to 537215207)

$10.99

$

In Stock, Qty 20+

0

503 57 76-01

Husqvarna 503577601

FUEL HOSE
(Superseded to 544325001)

$9.99

$

Usually ships in 3-10 days

0

720 12 40-20

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.49

$

In Stock, Qty 20+

0

503 82 33-01

Husqvarna 503823301

INSULATOR

$34.99

$

Usually ships in 3-10 days

0

504 71 00-03

Husqvarna 504710003

OIL PLUMMET

$13.99

$

In Stock, Qty 7

0
