339 XP - Husqvarna Chainsaw (SN: 20100600001 & Above) FUEL TANK Parts Diagram

Chainsaw

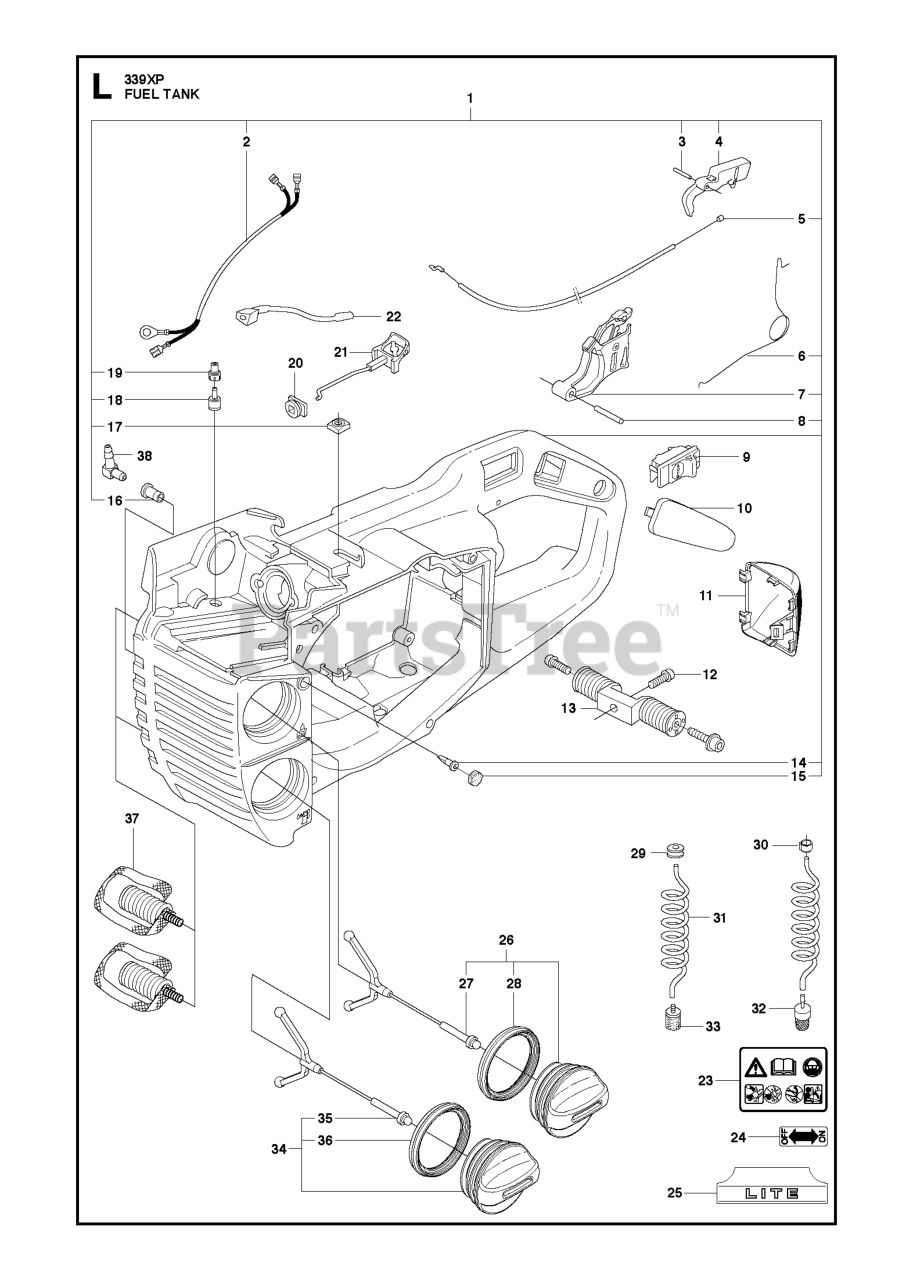

FUEL TANK Parts Diagram

  • Title

8

Husqvarna 720127520

PIN

$3.34

$

Usually ships in 3-10 days

0

23

Husqvarna 503987401

DECAL

$10.99

$

In Stock, only 4 left!

0

13

Husqvarna 503823302

VIBRATION ABSORBER

$28.99

$

Usually ships in 3-10 days

0

32

Husqvarna 503967501

OIL PLUMMET

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 13

0

9

Husqvarna 503718201

START/STOP SWITCH

$13.99

$

In Stock, Qty 8

0

19

Husqvarna 537139701

CAP

$4.99

$

In Stock, Qty 7

0

11

Husqvarna 537063502

SPARK PLUG COVER

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537074001

CABLE ASSY

$29.06

$

Usually ships in 3-10 days

0

30

Husqvarna 537051101

CLAMP
(Superseded to 537184901)

$7.49

$

In Stock, Qty 20+

0

5

Husqvarna 537075801

THROTTLE WIRE
(Superseded to 537075802)

$31.99

$

Usually ships in 3-10 days

0

36

Husqvarna 537215001

SEALING

$8.99

$

In Stock, Qty 17

0

38

Husqvarna 537192301

NIPPLE

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

$10.99

$

In Stock, Qty 20+

0

1

Husqvarna 537088905

RP TANK
(Superseded to 537088907)

$

$

Not available

31

Husqvarna 544325002

FUEL HOSE
(Superseded to 591375201)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 503736401

SPRING

$10.99

$

In Stock, only 4 left!

0

15

Husqvarna 503981301

PLUG

$9.49

$

Usually ships in 3-10 days

0

35

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

17

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

$15.99

$

In Stock, Qty 20+

0

3

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.49

$

In Stock, Qty 20+

0

33

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

16

Husqvarna 537052801

SLEEVE

$

$

Not available

34

Husqvarna 537215204

TANK CAP LIGHT GRAY

$12.99

$

In Stock, only 3 left!

0

29

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$6.99

$

In Stock, Qty 20+

0

21

Husqvarna 537070401

CHOKE CONTROL

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 537086401

GROMMET

$7.99

$

Usually ships in 3-10 days

0

25

Husqvarna 537378101

DECAL

Note: JP Only

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

22

Husqvarna 503842601

HOSE

$

$

Not available

10

Husqvarna 537059301

INSERT

$

$

Not available

12

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 503853804

ANTI-VIBE ELEMENT

$

$

Not available

28

Husqvarna 537215001

SEALING

$8.99

$

In Stock, Qty 17

0

7

Husqvarna 503829801

THROTTLE TRIGGER

$12.99

$

In Stock, only 4 left!

0

4

Husqvarna 503556601

THROTTLE CATCH

$11.99

$

In Stock, Qty 14

0

24

Husqvarna 537127601

DECAL

Note: JP Only

$3.49

$

Usually ships in 3-10 days

0
