34002 - Lawn-Boy Insight Snow Thrower (SN: 290000001 - 290999999) (2009) HANDLE ASSEMBLY Parts Diagram

Insight Snow Thrower

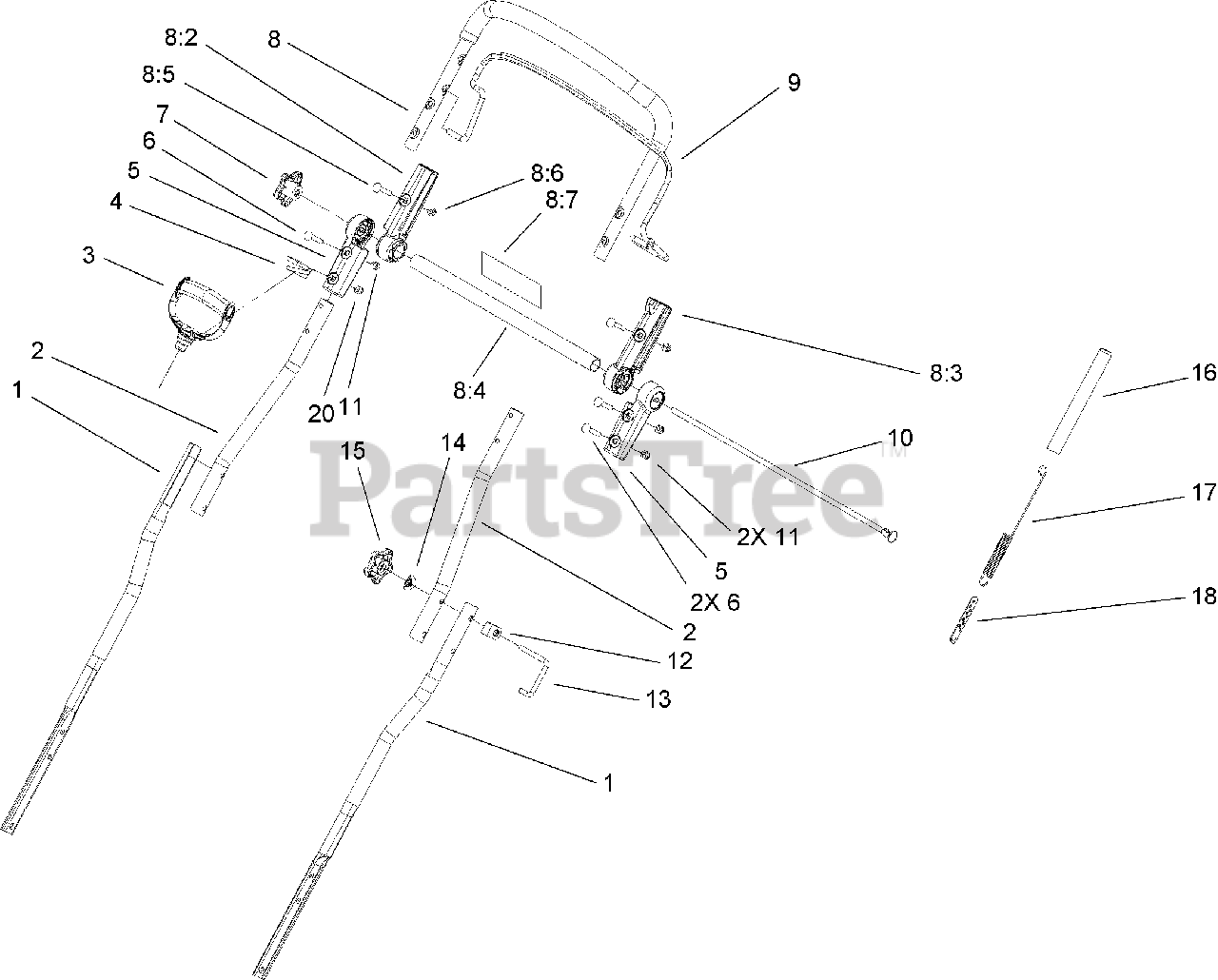

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 112-8752-03

HANDLE-LOWER

$50.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 112-8753-03

HANDLE-UPPER

$

$

Not available

3

Lawn-Boy 110-1778

HANDLE-RECOIL

$27.99

$

In Stock, Qty 8

0

4

Lawn-Boy 110-9478

GUIDE-ROPE

$

$

Not available

5

Lawn-Boy 107-3865

MOUNT-HANDLE, LOWER

$12.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 10

0

7

Lawn-Boy 107-3937

KNOB

$2.99

$

In Stock, only 4 left!

0

8

Lawn-Boy 112-1522

UPPER HANDLE ASM

$

$

Not available

8:2

Lawn-Boy 110-1770

MOUNT-HANDLE, RH

$16.99

$

In Stock, only 1 left!

0

8:3

Lawn-Boy 110-1769

MOUNT-HANDLE, LH

$

$

Not available

8:4

Lawn-Boy 107-3867-03

TUBE-CROSS

$24.99

$

Usually ships in 3-6 days

0

8:5

Lawn-Boy 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 10

0

8:6

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

8:7

Lawn-Boy 110-3417

DECAL-ROTOR DRIVE/HANDLE HEIGHT KNOB

$10.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 110-9459-03

BAIL-BRAKE

$40.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 107-3871

ROD-THREADED

$18.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 2412-113

CLAMP

$2.49

$

In Stock, only 2 left!

0

13

Lawn-Boy 108-4887

LOCK-HANDLE
(Superseded to 136-7130)

$5.49

$

In Stock, Qty 5

0

14

Lawn-Boy 107-3844

WASHER

$1.49

$

In Stock, Qty 11

0

15

Lawn-Boy 114-3779

KNOB-HANDLE

$6.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 114-3796

COVER-SPRING

$5.49

$

In Stock, Qty 5

0

17

Lawn-Boy 108-4920

SPRING-EXTENSION

$6.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 71-5330

ADJUSTER-CABLE, CLUTCH
(Superseded to 136-7126)

$6.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0
