34021 - Troy-Bilt 21" Mulching Walk-Behind Mower HANDLE SUPPLEMENT Parts Diagram

21" Mulching Walk-Behind Mower

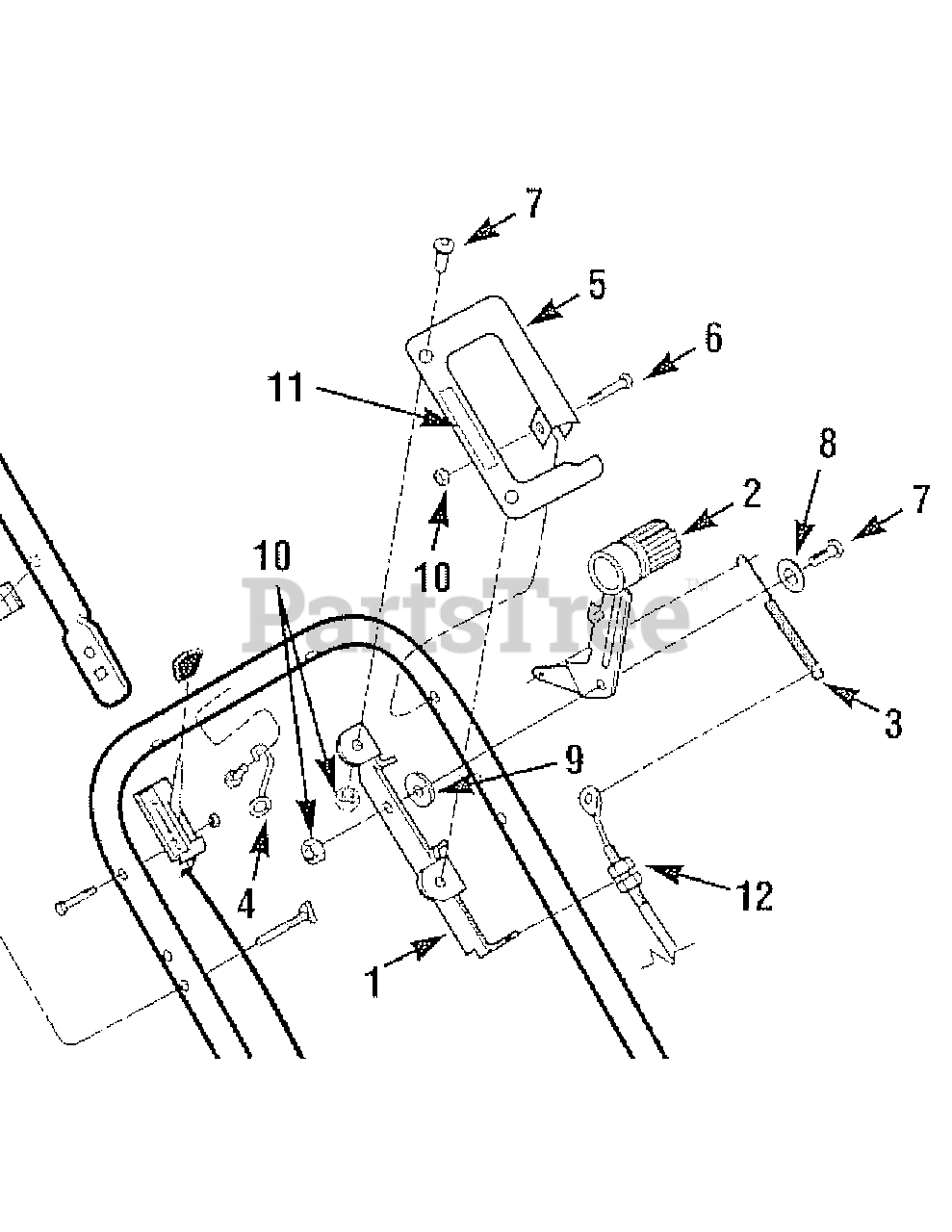

HANDLE SUPPLEMENT Parts Diagram

  • Title

1

MTD 1909995001

SUPT-CONTROL DRIVE {34021}

$

$

Not available

2

MTD 1909690

ARM-CONTROL {34021}

$

$

Not available

3

Troy-Bilt 1909994

SPRING-EXTENSION {34021}
(Superseded to 1915922)

$12.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 1768535

GUIDE-ROPE {34021}

$

$

Not available

5

MTD 1909683001

MOUNT-DRIVE CONTROL {34021}

$

$

Not available

6

MTD GW-90006

SCR 1/4-20X1.5 PL CSHH {34021}

$

$

Not available

7

MTD 1765593

SCR-RH 1/4-20X.75 {34021}

$

$

Not available

8

MTD 1767648

WASHER-BELLEVILLE {34021}

$

$

Not available

9

MTD 1767649

BUSHING, NYLON {34021}

$

$

Not available

10

Troy-Bilt 1734398

NUT-HT LK 1/4-20 {34021}
(Superseded to 912-0291)

$

$

Not available

11

MTD 1768320

DECAL-WHEEL DRIVE {34021}

$

$

Not available

12

Troy-Bilt 1909996

CABLE-DRIVE CONTROL {34021}
(Superseded to 1909996P)

$

$

Not available
