3410 (990755) - Simplicity Landlord Garden Tractor TRANSMISSION GROUP Parts Diagram

Landlord Garden Tractor

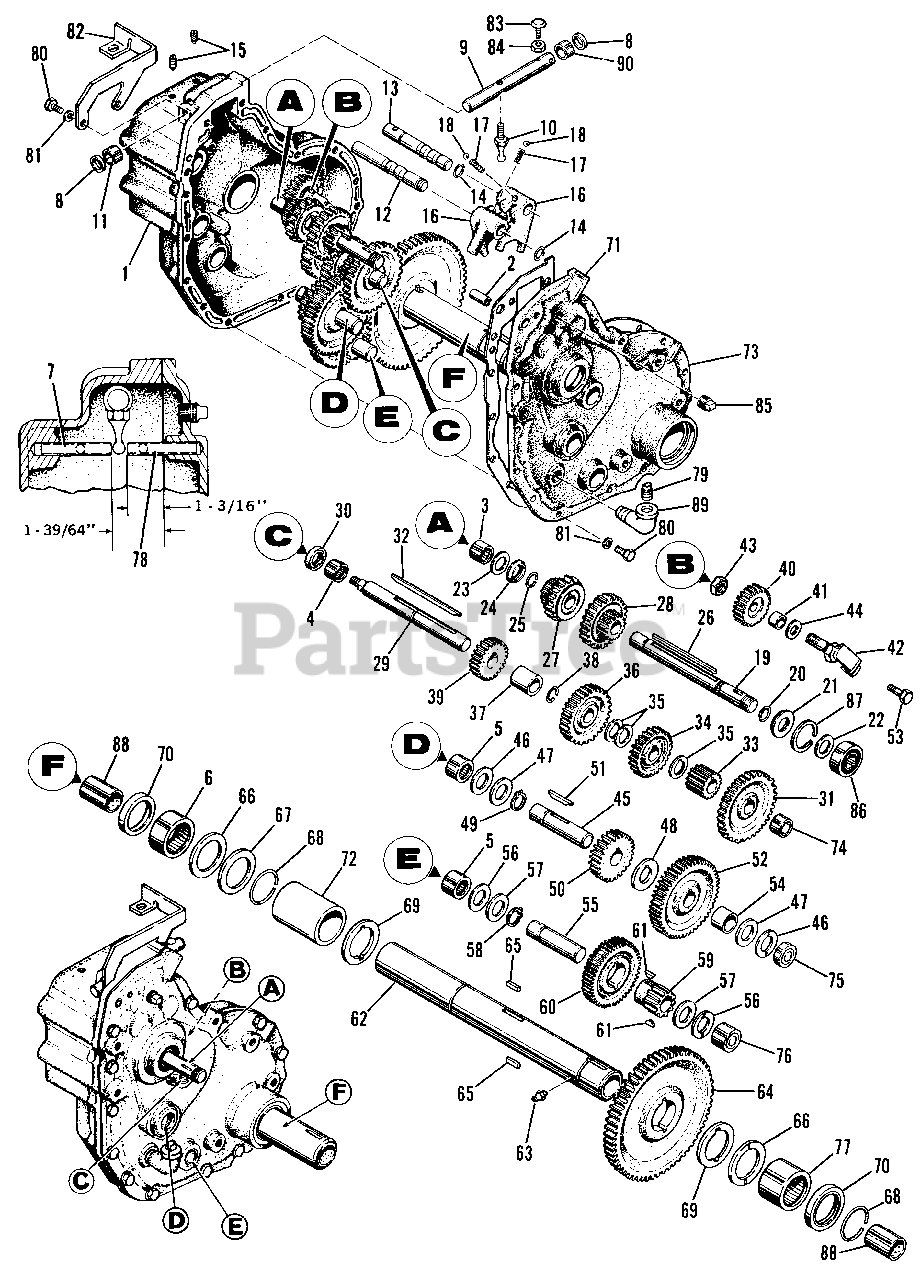

TRANSMISSION GROUP Parts Diagram

  • Title

1

Simplicity 157516

Case, Gear Assy., Complete w/bearings & dowel pins (Includes 1 thru 7)

$

$

Not available

2

Simplicity 2723007

Roll Pin

$

$

Not available

3

Simplicity 2154257SM

Needle Bearing

$27.99

$

In Stock, only 1 left!

0

4

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, only 2 left!

0

5

Simplicity 154259

Needle Bearing

$

$

Not available

6

Simplicity 2157519SM

Needle Bearing

$

$

Not available

7

Simplicity 154538

Roll Pin

$

$

Not available

8

Simplicity 2157619SM

Oil Seal

$20.99

$

In Stock, only 3 left!

0

9

Simplicity 164250

Shift Rod

$

$

Not available

10

Simplicity 2172779SM

Shift Stem

$

$

Not available

11

Simplicity 2121084SM

Spacer

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 154067

Shifter Shaft Rev., Med.

$

$

Not available

13

Simplicity 154068

Shifter Shaft High, Low

$

$

Not available

14

Simplicity 1729260SM

Retaining Ring

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 715019

Set Screw, Hollow Head, Cone Point, 5/16"-18 x 1/2"
(Superseded to 715455)

$14.99

$

Usually ships in 2-12 days

0

16

Simplicity 2154069SM

Shift Fork

$227.99

$

Usually ships in 2-12 days

0

17

Simplicity 2154323SM

Spring

$30.99

$

Usually ships in 2-12 days

0

18

Simplicity 2154262

Shift Lock Ball

$

$

Not available

19

Simplicity 174338

Pulley Shaft

$

$

Not available

20

Simplicity 2118134SM

Retaining Ring

$

$

Not available

21

Simplicity 154462

Washer

$

$

Not available

22

Simplicity 2108472

Washer

$

$

Not available

23

Simplicity 2172982SM

Washer

$37.99

$

Usually ships in 2-12 days

0

24

Simplicity 172981

Washer

$

$

Not available

25

Simplicity 2154264SM

Retaining Ring

$5.99

$

In Stock, only 2 left!

0

26

Simplicity 2164294SM

Key

$16.99

$

Usually ships in 2-12 days

0

27

Simplicity 2154072

Pinion Assembly Rev. II

$

$

Not available

28

Simplicity 2154075

Pinion Assembly, I and II

$

$

Not available

29

Simplicity 2157290

Shaft, 1st Intm.

$

$

Not available

30

Simplicity 1612093SM

Oil Seal

$10.99

$

In Stock, Qty 6

0

31

Simplicity 154078

Driven I, Gear

$

$

Not available

32

Simplicity 2154354SM

Key

$15.99

$

Usually ships in 2-12 days

0

33

Simplicity 154079

Pinion, 1st Intm.

$

$

Not available

34

Simplicity 2154080SM

Pinion, Driven, III

$96.99

$

Usually ships in 2-12 days

0

35

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 11

0

36

Simplicity 154081

Driven II Gear

$

$

Not available

37

Simplicity 154082

Spacer

$

$

Not available

38

Simplicity 2154264SM

Retaining Ring

$5.99

$

In Stock, only 2 left!

0

39

Simplicity 2174228

Pinion Rev & IV

$

$

Not available

40

Simplicity 2154087SM

Reverse Gear

$70.99

$

Usually ships in 2-12 days

0

41

Simplicity 154084

Rev. Gear Spacer

$

$

Not available

42

Simplicity 154352

Rev. Gear Pin Assembly

$

$

Not available

43

Simplicity 2717516

Lock Nut, 1/2"-20 N.F.

$

$

Not available

44

Simplicity 2154325

Washer

$

$

Not available

45

Simplicity 154086

Shaft, 2nd Intm.

$

$

Not available

46

Simplicity 2172979

Washer

$

$

Not available

47

Simplicity 2172978

Washer

$

$

Not available

48

Simplicity 2154038SM

Washer

$5.49

$

Usually ships in 2-12 days

0

49

Simplicity 154266

Retaining Ring

$

$

Not available

50

Simplicity 164062

Pinion, 2nd Intm.

$

$

Not available

51

Simplicity 2154267SM

Key

$

$

Not available

52

Simplicity 154089

Gear, 2nd Intm.

$

$

Not available

53

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

54

Simplicity 154090

Spacer

$

$

Not available

55

Simplicity 154091

Shaft, 3rd Intm.

$

$

Not available

56

Simplicity 2172979

Washer

$

$

Not available

57

Simplicity 2172978

Washer

$

$

Not available

58

Simplicity 154266

Retaining Ring

$

$

Not available

59

Simplicity 2154092SM

Pinion, 3rd Intm.

$

$

Not available

60

Simplicity 164051

Gear, 3rd Intm.

$

$

Not available

61

Simplicity 2725002

Key Woodruff

$

$

Not available

62

Simplicity 2164222SM

Axle Tube w/bushing

$353.99

$

Usually ships in 2-12 days

0

63

Simplicity 2727002

Grease Fitting

$

$

Not available

64

Simplicity 154095

Drive Gear

$

$

Not available

65

Simplicity 2154096SM

Key

$6.99

$

In Stock, only 2 left!

0

66

Simplicity 2172977

Washer

$

$

Not available

67

Simplicity 2154097SM

Washer

$

$

Not available

68

Simplicity 2154268SM

Snap Ring

$7.49

$

In Stock, only 1 left!

0

69

Simplicity 2154130SM

Axle Tube Washer

$6.49

$

In Stock, only 1 left!

0

70

Simplicity 2154269SM

Seal

$

$

Not available

71

Simplicity 2164234SM

Gear Case Gasket

$39.99

$

In Stock, only 3 left!

0

72

Simplicity 154098

Axle Tube Spacer

$

$

Not available

73

Simplicity 164226

Gear Case Cover, Complete w/bearings

$

$

Not available

74

Simplicity 2154257SM

Needle Bearing

$27.99

$

In Stock, only 1 left!

0

75

Simplicity 2154271SM

Needle Bearing

$37.99

$

Usually ships in 2-12 days

0

76

Simplicity 154259

Needle Bearing

$

$

Not available

77

Simplicity 2157520SM

Needle Bearing

$59.99

$

Usually ships in 2-12 days

0

78

Simplicity 154537

Roll Pin Assembly

$

$

Not available

79

Simplicity 2726003

Pipe Plug, 3/8"

$

$

Not available

80

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1"

$

$

Not available

81

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

82

Simplicity 164251

Switch Support

$

$

Not available

83

Simplicity 172241

Carriage Bolt,5/16"-18 x 1"

$

$

Not available

84

Simplicity 2717011

Hex Jam Nut, 5/16"-18

$

$

Not available

85

Simplicity 2726003

Pipe Plug, 3/8"

$

$

Not available

86

Simplicity 2108202SM

Ball Bearing

$11.99

$

In Stock, Qty 20+

0

87

Simplicity 164064

Retaining Ring

$

$

Not available

88

Simplicity 2164224

Bushing

$

$

Not available

89

Simplicity 2728501

Elbow, 3/8" x 90

$

$

Not available
